C.R. Laurence PH21ADU Black Bronze European Top Door Patch Fitting with 1NT303 Insert offers a robust solution for your glass door applications. Designed to accommodate 3/8" or 1/2" (10 or 12 mm) glass, this fitting features a high-density cast body that ensures durability and reliability. With a pivot setback of 2-9/16" (65 mm), it is compatible with various pivot types, including the CRL860 Top Walking Beam Pivot and the 1NT401 Surface Mount Top Pivot. This patch fitting supports a maximum weight of 176 lbs. (80 kg) and a maximum width of 43" (1.11 m), making it suitable for a wide range of door sizes. For 1/2" glass doors, it can handle a maximum height of 102" (2.59 m) and a width of 42" (1.09 m). It's important to note that full door rails should be used for doors exceeding these limitations. Installation is simplified with the included template and instructions, while gaskets ensure a secure fit for the glass. Finished in a striking Black Bronze Anodized color, this fitting not only performs well but also adds an elegant touch to your project. Please be aware that these fittings are not suitable for laminated glass.
Black Bronze European Top Door Patch Fitting with 1NT303 Insert
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Black Bronze Anodized
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)
Height: 2 in. (51 mm)
Insert Type: 1NT303

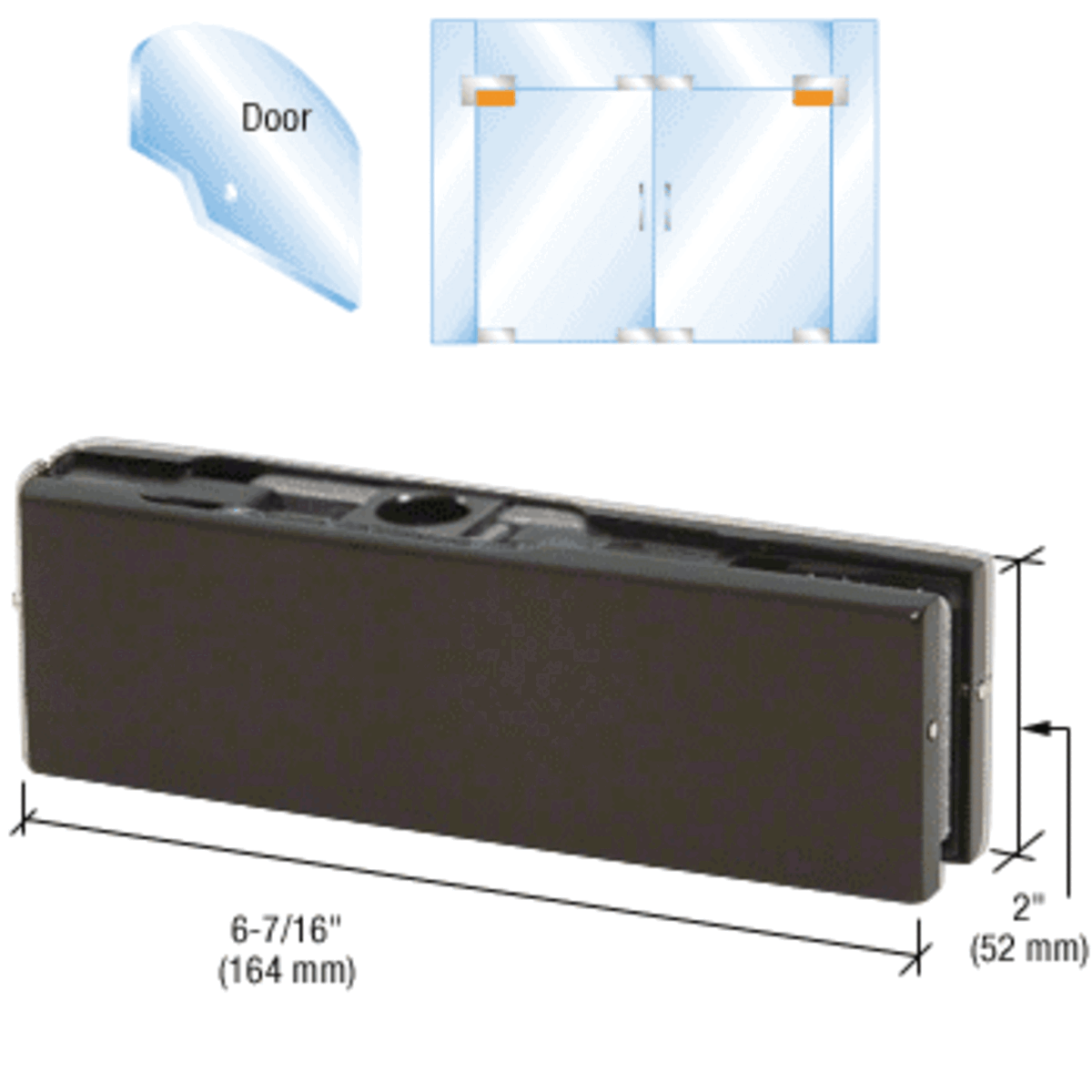

Length: 6-7/16 in. (164 mm)
Pivot Setback: 2-9/16
Series: European
Shipping Limitations: None
Type: Top
With Insert: Yes
