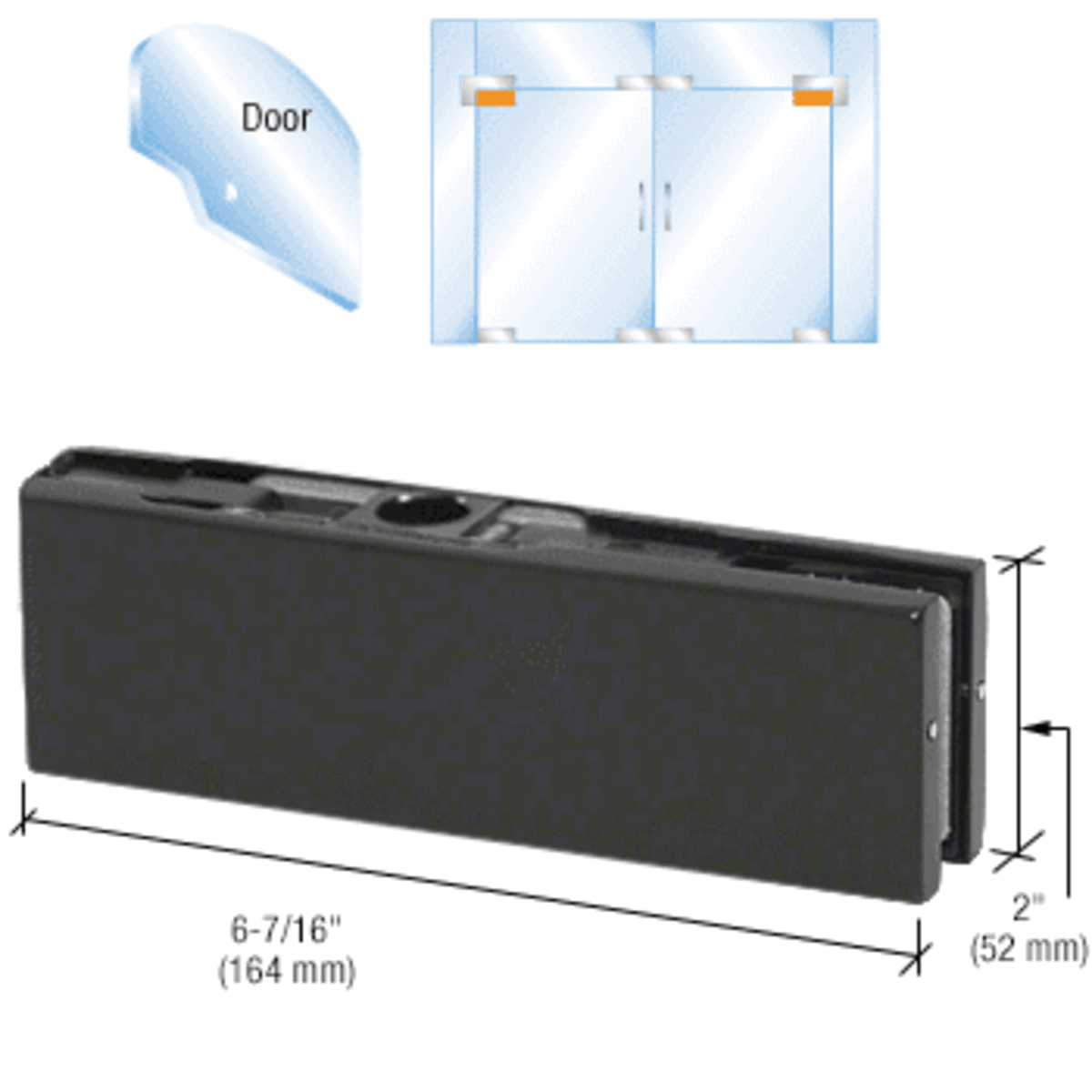

CRL PH21AMBL Matte Black European Top Door Patch Fitting with 1NT303 Insert

Your Price: $52.53

Retail Price:$62.88

Your Savings:$10.35(16%)

The CRL PH21AMBL Matte Black Top Door Patch Fitting offers durability and style for 3/8" or 1/2" glass doors.

Part Number : CRL_PH21AMBL

Availability: 2146 In Stock

Quantity

Description

CRL PH21AMBL Matte Black European Top Door Patch Fitting with 1NT303 Insert

C.R. Laurence PH21AMBL Matte Black European Top Door Patch Fitting with 1NT303 Insert is an essential component for creating sleek, modern glass doors. Designed to accommodate both 3/8" and 1/2" (10 mm and 12 mm) glass, this patch fitting features a robust high-density cast body that ensures long-lasting durability. With a pivot setback of 2-9/16" (65 mm), it offers precise alignment and stability, supporting doors with a maximum weight of 176 lbs. (80 kg) and a width of up to 43" (1.11 m). The PH21AMBL comes complete with the 1NT303 insert, compatible with various top pivots including the CRL860 Top Walking Beam Pivot and others. For added convenience, gaskets are included to ensure a snug fit with your glass. It’s important to note that glass fabrication is required, specifically a 3/4" (19 mm) diameter hole and corner notch. Available in a striking matte black finish, this fitting enhances the aesthetic of any space while providing reliable function. Each unit includes a template and instructions for ease of installation. Please be aware that these fittings are not suitable for laminated glass. Transform your entrance with the elegance and strength of C.R. Laurence's top-quality hardware.

Matte Black European Top Door Patch Fitting with 1NT303 Insert

2-9/16" (65 mm) Pivot Setback
High Density Cast Body
For 3/8" or 1/2" (10 or 12 mm) Glass

The CRL Top Door Patch Fitting includes the 1NT303 Insert for use with our CRL860 Top Walking Beam Pivot, 1NT401 Surface Mount Top Pivot, 1NT405 Threaded Top Pivot, or other 19/32" (15 mm) Diameter type pivots. Finished covers are available in four standard finishes. Gaskets are supplied that allow this Patch Fitting to be used with either 3/8" or 1/2" (10 or 12 mm) Glass.

The following guidelines are to be used when making a door using this hardware:
Maximum Weight: 176 Lbs. (80 kg)
Maximum Width: 43" (1.11 m)
If the door exceeds any of these limitations, full door rails should be used.

GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter
Hole and Corner Notch

COMES WITH:
Template and Instructions

Product Warning:

These fittings are not for use with Laminated Glass.

The following guidelines are to be used when making a 1/2" glass door using this hardware:

Maximum Height: 102" (2.59 m)
Maximum Weight: 194 Lbs. (80 kg)
Maximum Width: 42" (1.09 m)

If the door exceeds any of these limitations, full door rails should be used.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Attributes

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Finish/ Color:: Matte Black

Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)

Height: 2 in. (51 mm)

Insert Type: 1NT303

Length: 6-7/16 in. (164 mm)

Pivot Setback: 2-9/16

Series: European

Shipping Limitations: None

Type: Top

With Insert: Yes
