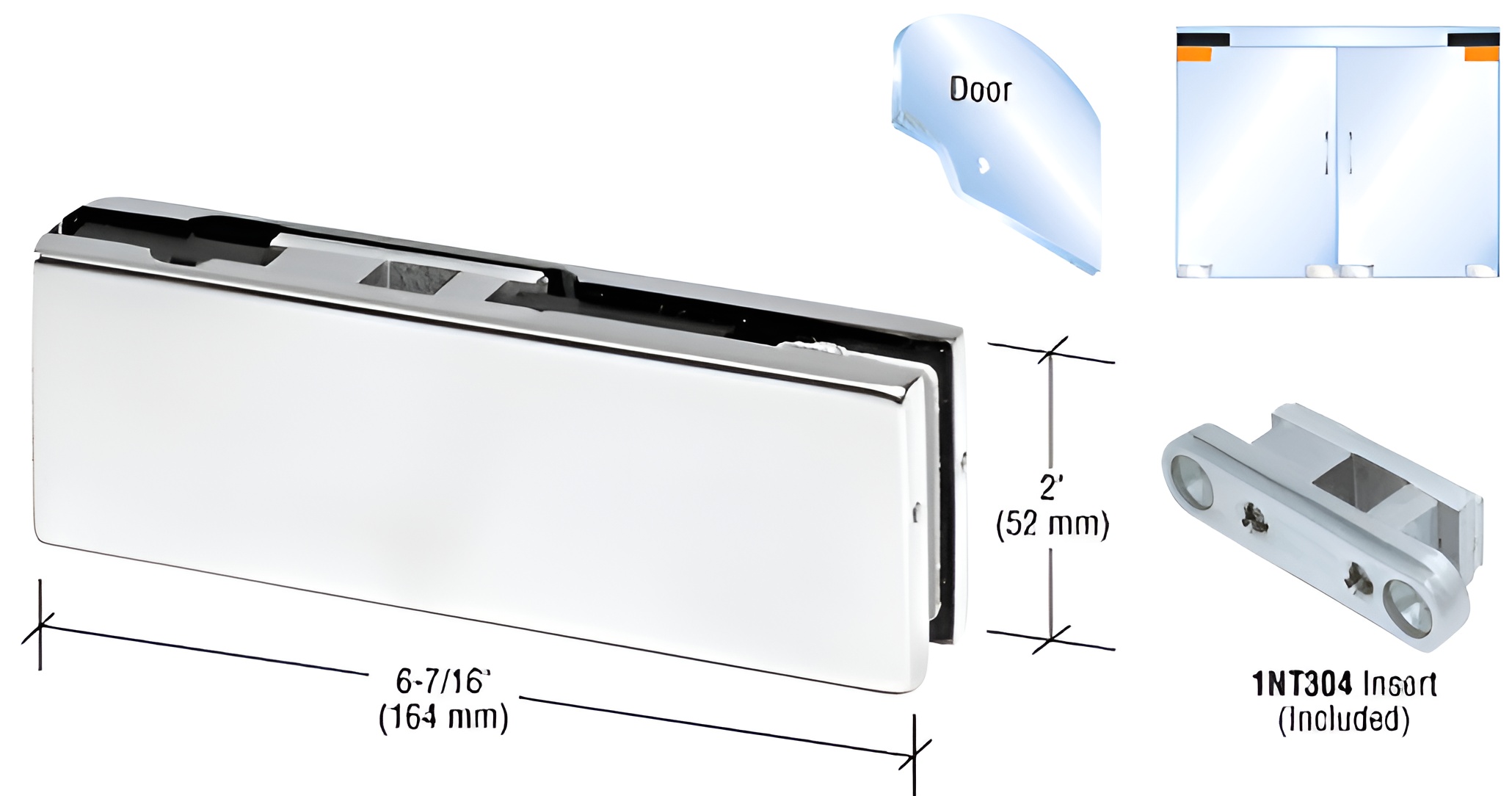

C.R. Laurence PH21BA Aluminum European Top Door Patch Fitting with 1NT304 Insert is designed for robust performance and stylish functionality in glass door applications. This fitting boasts a European pivot setback of 2-9/16" (65 mm), ensuring an elegant and efficient operation. Crafted from high-density cast aluminum, it provides exceptional durability, making it suitable for commercial and residential environments alike. The PH21BA is compatible with 3/8" or 1/2" (10 or 12 mm) glass, thanks to the included gaskets, giving you flexibility in your glass selection. Additionally, this product incorporates the 1NT304 Insert, designed specifically for use with CRL’s Overhead Concealed Door Closers, accommodating a square spindle of 9/16" (14 mm) and a length of 3/4" (19 mm). With a maximum door height of 102" (2.59 m), weight of 194 lbs. (80 kg), and width of 42" (1.09 m), it is essential to adhere to these guidelines for optimal performance. Fabrication requirements include a 3/4" (19 mm) diameter hole and corner notch, ensuring precise installation. Available in a sleek satin anodized finish, the PH21BA combines functionality and modern aesthetics, making it an ideal choice for any architectural project.
Aluminum European Top Door Patch Fitting with 1NT304 Insert
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Satin Anodized
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)
Height: 2 in. (51 mm)
Insert Type: 1NT304
Length: 6-7/16 in. (164 mm)
Pivot Setback: 2-9/16
Series: European
Shipping Limitations: None
Type: Top
With Insert: Yes
