CRL PH21BBR Brass European Top Door Patch Fitting with 1NT304 Insert
Images may not represent actual product and finish

CRL PH21BBR Brass European Top Door Patch Fitting with 1NT304 Insert

Your Price: $95.13
Retail Price:$113.88
Your Savings:$18.75(16%)
The CRL PH21BBR Brass European Top Door Patch Fitting features a durable cast body, compatible with 3/8" or 1/2" glass.
Part Number : CRL_PH21BBR
Availability: 2 In Stock
CRL PH21BBR Brass European Top Door Patch Fitting with 1NT304 Insert

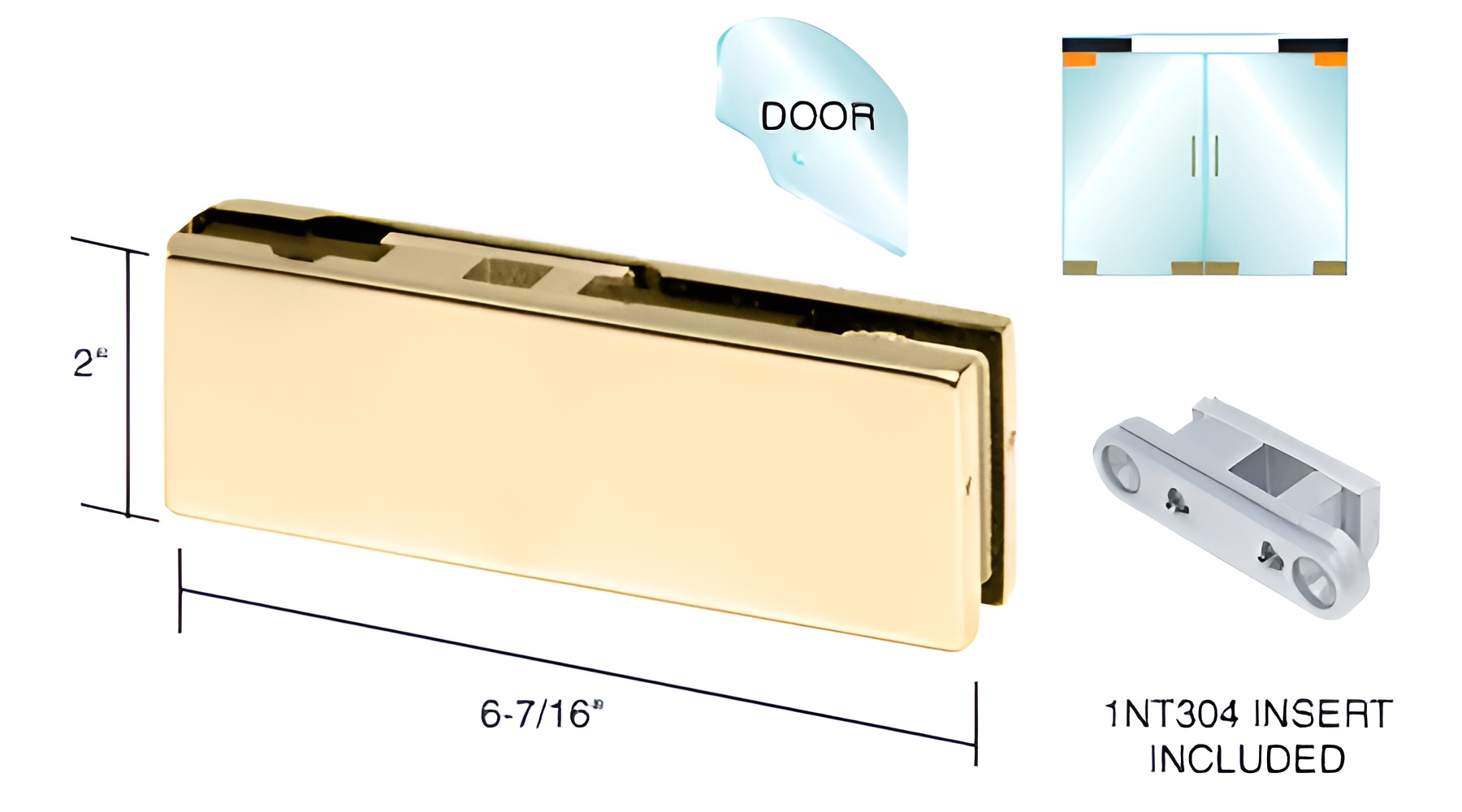

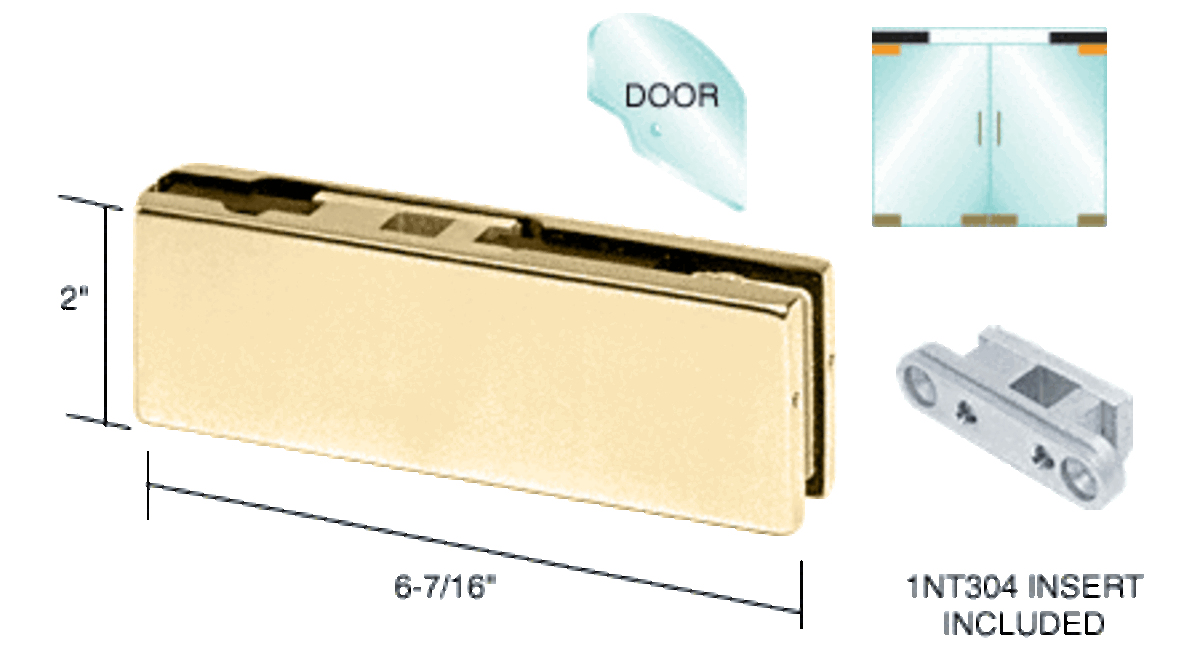

C.R. Laurence PH21BBR Brass European Top Door Patch Fitting With 1NT304 Insert delivers a seamless and stylish solution for your door hardware needs. Designed with a European 2-9/16" (65 mm) pivot setback, this high-density cast body fitting ensures durability and strength, making it an ideal choice for various applications. This patch fitting includes the 1NT304 insert, specifically crafted for compatibility with overhead concealed door closers featuring a 9/16" (14 mm) square and 3/4" (19 mm) long spindle. It accommodates both 3/8" and 1/2" (10 or 12 mm) glass, providing versatility for your glazing projects. The gaskets supplied enhance the fitting's adaptability while ensuring a secure installation. For optimal performance, the PH21BBR is engineered to support a maximum height of 102" (2.59 m), a maximum weight of 194 lbs. (80 kg), and a maximum width of 42" (1.09 m). Please note that laminated glass is not suitable for use with this fitting. With its polished brass finish, the PH21BBR combines aesthetic appeal with functional reliability, though it is important to be aware of brass's tendency to oxidize over time. Elevate your architectural projects with this reliable door patch fitting from C.R. Laurence.

Brass European Top Door Patch Fitting With 1NT304 Insert

  • European 2-9/16" (65 mm) Pivot Setback
  • High Density Cast Body
  • Gaskets for use with 3/8" or 1/2" (10 or 12 mm) Glass

The CRL Top Door Patch Fitting includes the 1NT304 Insert for use with our Overhead Concealed Door Closers that have a 9/16" (14 mm) square and 3/4" (19 mm) long spindle. Finished covers are available in four standard finishes. Gaskets are supplied that allow this Patch Fitting to be used with either 3/8" or 1/2" (10 or 12 mm) Glass.


Glass Fabrication Required: One 3/4" (19 mm) diameter hole and corner notch.


Product Warning:

These fittings are not for use with Laminated Glass.

The following guidelines are to be used when making a 1/2" glass door using this hardware:

Maximum Height: 102" (2.59 m)
Maximum Weight: 194 Lbs. (80 kg)
Maximum Width: 42" (1.09 m)

If the door exceeds any of these limitations, full door rails should be used.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.

Attributes

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Finish/ Color:: Polished Brass

Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)

Height: 2 in. (51 mm)

Insert Type: 1NT304

Length: 6-7/16 in. (164 mm)

Pivot Setback: 2-9/16

Series: European

Shipping Limitations: None

Type: Top

With Insert: Yes
