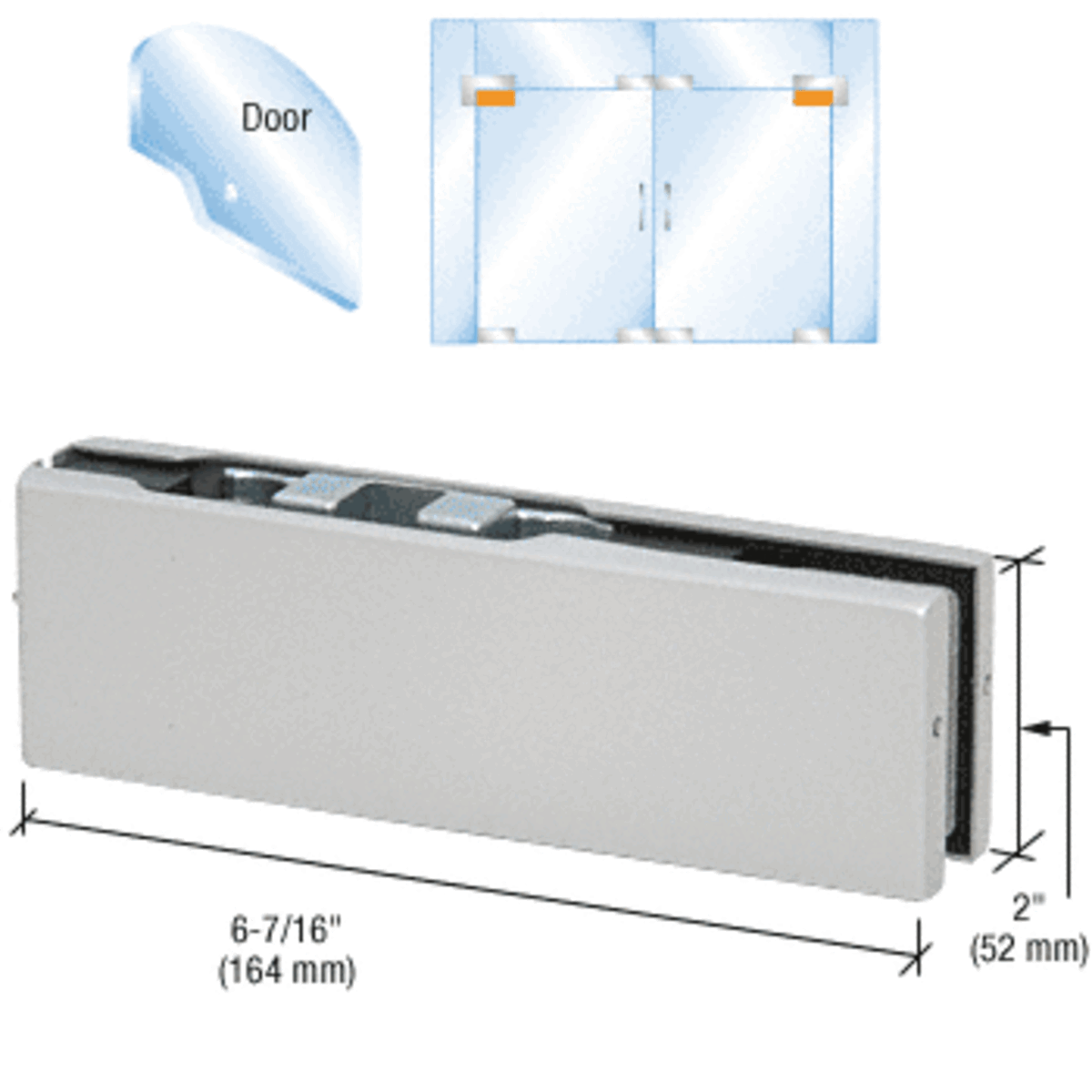

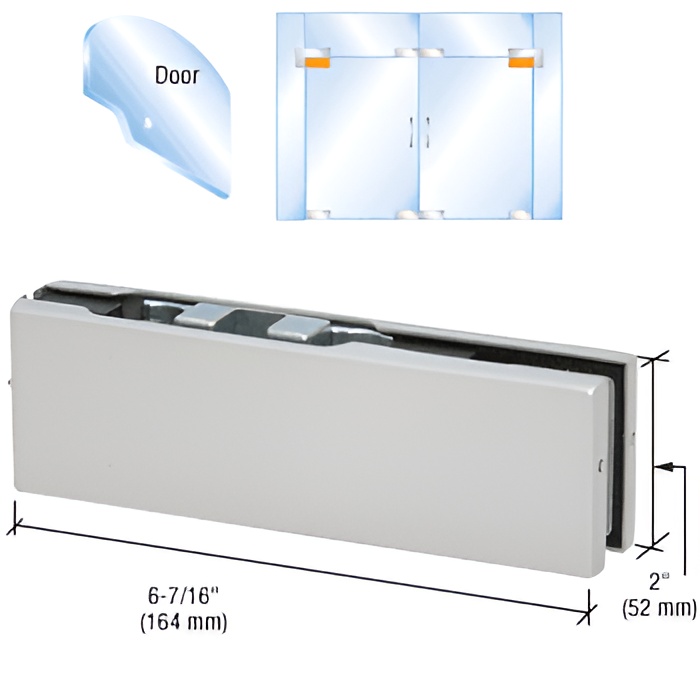

C.R. Laurence PH21CA Satin Anodized Adjustable European Top Door Patch Fitting is designed for precision and versatility in modern architectural applications. Featuring an adjustable pivot insert, this fitting allows for three degrees of movement, ensuring proper door alignment with the jamb when closed. Engineered for use with either 3/8" or 1/2" (10 or 12 mm) glass, it accommodates a pivot setback of 2-9/16" (65 mm), making it an ideal choice for a range of door sizes and styles. This top door patch fitting is compatible with the CRL9970 Overhead Concealed Door Closer, enhancing its functionality in high-traffic areas. Finished in sleek satin anodized, it complements various design aesthetics while providing durability. Gaskets are included to ensure a secure fit with the glass. For optimal performance, specific glass fabrication is required, including a 3/4" (19 mm) diameter hole and corner notch. Note that this fitting is not suitable for laminated glass. The maximum dimensions for a 1/2" glass door using this hardware are 102" in height (2.59 m), 176 lbs. in weight (80 kg), and 42" in width (1.09 m). With detailed instructions and a template provided, installation is straightforward, making it an excellent addition to any architectural project.
Satin Anodized Adjustable European Top Door Patch Fitting
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Satin Anodized
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback: 2-9/16
Series: European
Shipping Limitations: None
Type: Top
With Insert: Yes
