CRL PH21CPS Polished Stainless Adjustable European Door Patch Fitting

Your Price: $92.29

Retail Price:$110.48

Your Savings:$18.19(16%)

The CRL PH21CPS Adjustable Top Door Patch Fitting offers precise door alignment with a polished stainless finish for 3/8" or 1/2" glass.

Part Number : CRL_PH21CPS

Availability: 199 In Stock

Quantity

Description

CRL PH21CPS Polished Stainless Adjustable European Door Patch Fitting

C.R. Laurence PH21CPS Polished Stainless Adjustable European Top Door Patch Fitting offers a seamless blend of functionality and elegance for modern glass door systems. This fitting features an adjustable pivot insert that provides up to three degrees of movement, ensuring proper alignment of the door to the jamb when closed. Designed for use with 3/8" or 1/2" (10 or 12 mm) glass, it accommodates a pivot setback of 2-9/16", making it a versatile choice for various installations. The PH21CPS comes with gaskets to facilitate secure installation and works well with the CRL9970 Overhead Concealed Door Closer for added convenience. Finished covers are available in five standard finishes, allowing customization to match any décor. It is essential to note that this fitting is not suitable for laminated glass. To ensure optimal performance, compliance guidelines include a maximum door height of 102" (2.59 m), a weight limit of 176 lbs. (80 kg), and a maximum width of 42" (1.09 m). The product includes a template and instructions for straightforward installation. Regular maintenance is recommended to preserve the polished stainless steel finish and prevent corrosion. Invest in C.R. Laurence's top-quality fittings for reliable and stylish door solutions.

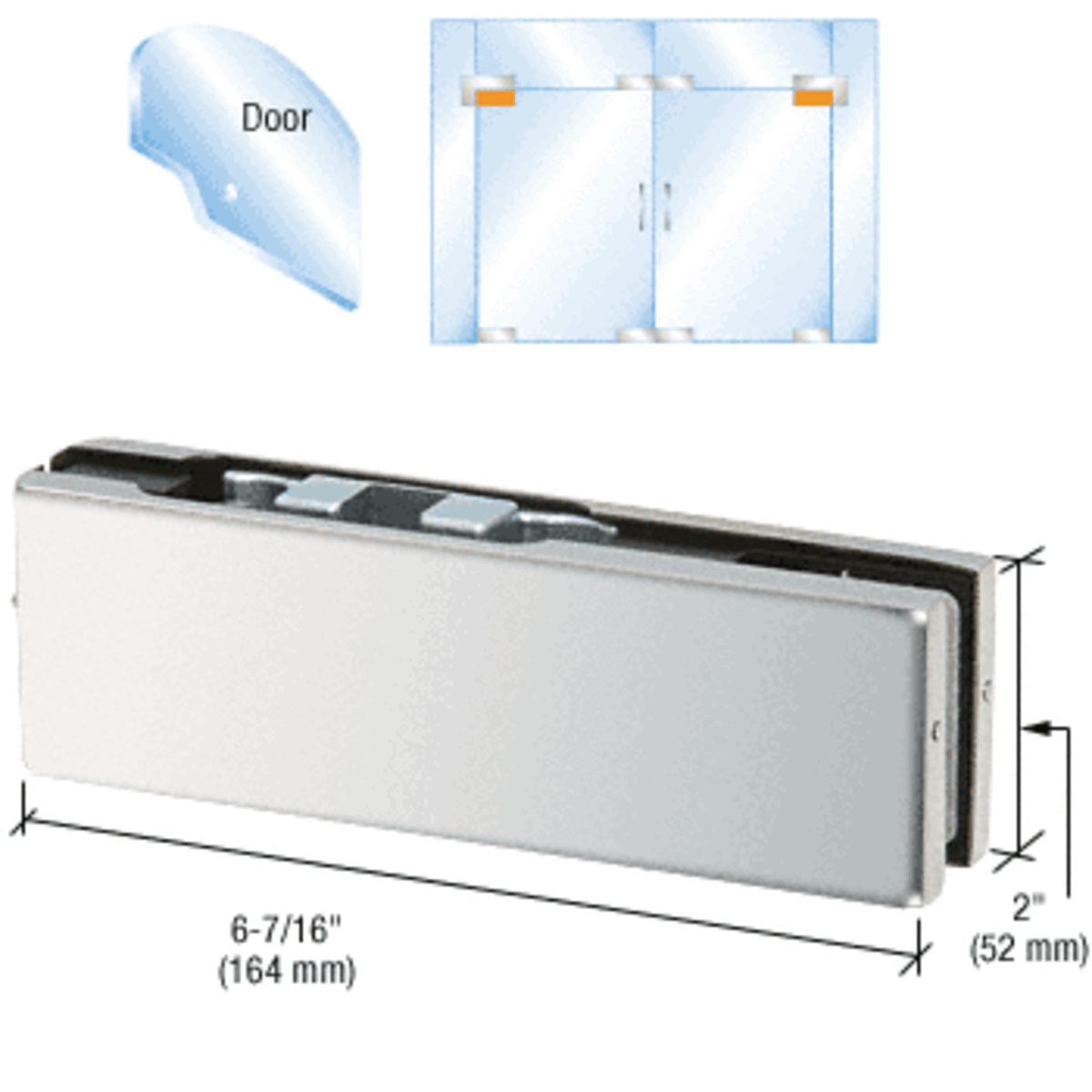

Polished Stainless Adjustable European Top Door Patch Fitting

Adjustable Pivot Insert Allows Three Degrees Movement for Proper Door Alignment
2-9/16" (65 mm) Pivot Setback
For 3/8" or 1/2" (10 or 12 mm) Glass

The CRL Adjustable Top Door Patch Fitting includes an adjustable pivot insert that allows for 3 degrees of movement for proper alignment of the door to the jamb when in the closed position. For use with our CRL9970 Overhead Concealed Door Closer. Finished covers are available in five standard finishes. Gaskets are supplied that allow this Patch Fitting to be used with either 3/8" or 1/2" (10 or 12 mm) Glass.

If the door exceeds any of these limitations, full door rails should be used.

GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter
Hole and Corner Notch

COMES WITH:
Template and Instructions

Product Warning:

These fittings are not for use with Laminated Glass.

The following guidelines are to be used when making a 1/2" glass door using this hardware:

Maximum Height: 102" (2.59 m)
Maximum Height: 176 Lbs. (80 kg)
Maximum Width: 42" (1.09 m)

If the door exceeds any of these limitations, full door rails should be used.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory:

Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.

Attributes

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Finish/ Color:: Polished Stainless Steel

Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)

Pivot Setback: 2-9/16

Series: European

Shipping Limitations: None

Type: Top

With Insert: Yes
