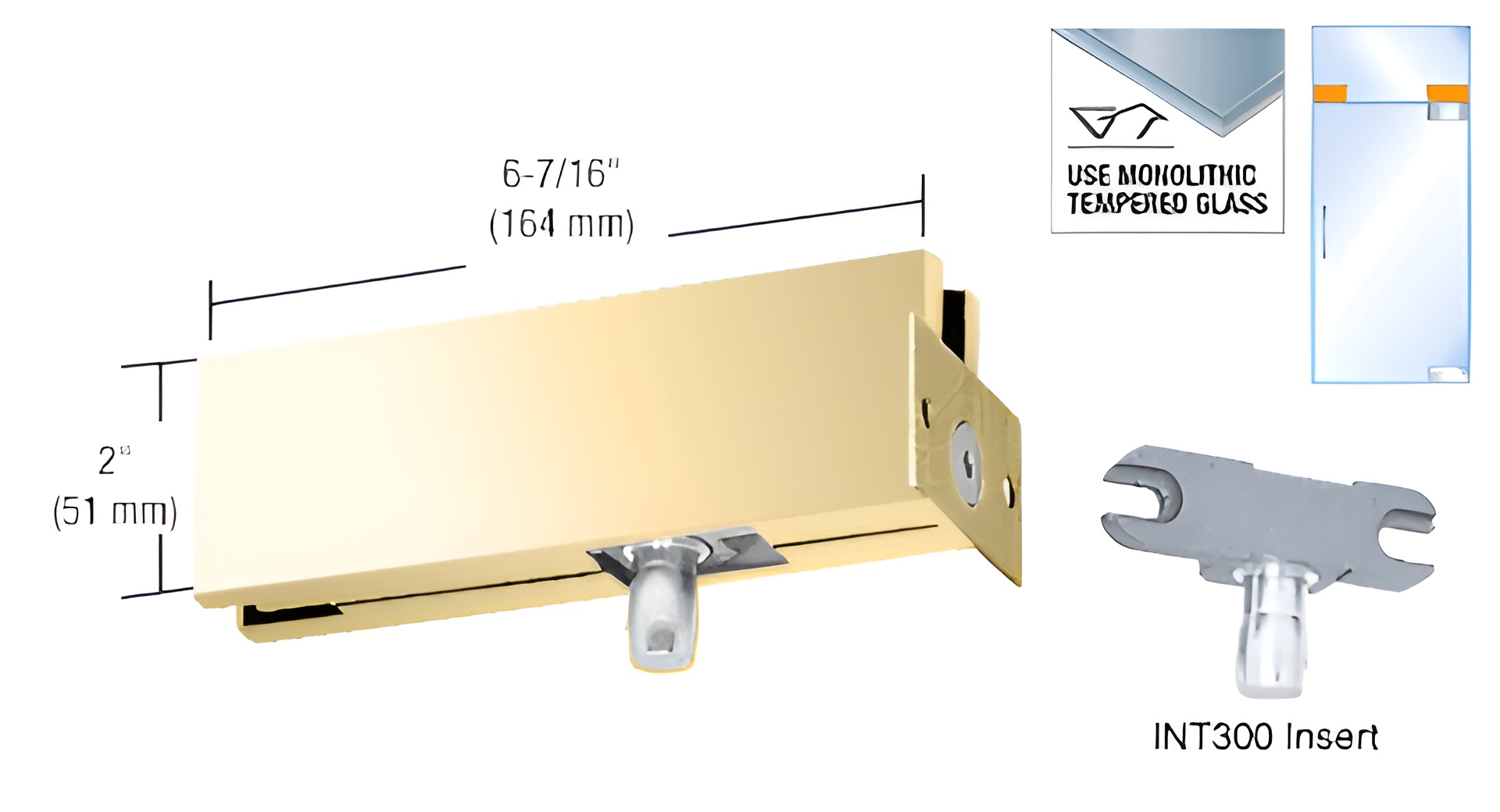

CRL PH34BR Brass Wall-Mounted Transom Patch with 1NT300 Insert

C.R. Laurence PH34BR Brass Wall Mounted Transom Patch with 1NT300 Insert is designed to provide robust support for transoms attached to side jambs. This versatile fitting works seamlessly with both 2-3/4" and 2-9/16" (70 mm and 65 mm) pivot setback door patch fittings, ensuring compatibility with various installation requirements. The unit is crafted for use with monolithic tempered glass, offering durability and safety in a range of applications. Incorporating the INT300 Insert allows for the mounting of doors utilizing the CRL PH20A or PH21A Top Door Patch Fittings. The insert can also be repositioned on the non-hinged side, facilitating double swing door functionality. For those needing a one-way door, the INT306 Transom Patch Door Stop Insert is a perfect choice, while the INT305L Transom Patch Keeper Insert is compatible with the AMR205 Lock, enhancing security when installed at the door's top. Fabrication requires a 3/4" (19 mm) diameter hole and corner notch. Note that these fittings are not suitable for laminated glass. Finished in polished brass, the PH34BR may develop a tarnished appearance over time due to oxidation, reflecting its natural character. This product is an excellent choice for professionals seeking reliable, aesthetically pleasing hardware solutions.

Brass Wall Mounted Transom Patch with 1NT300 Insert

• Works with Both 2-3/4" and 2-9/16" (70 and 65 mm) Pivot Setback Door Patch Fittings
• Use Monolithic Tempered Glass

Brass Finish Advisory:

Resources

• Brass Finish Disclaimer
• PH34 Template.dwg
• PH34 Template.pdf
• Template gc-ph34.doc
