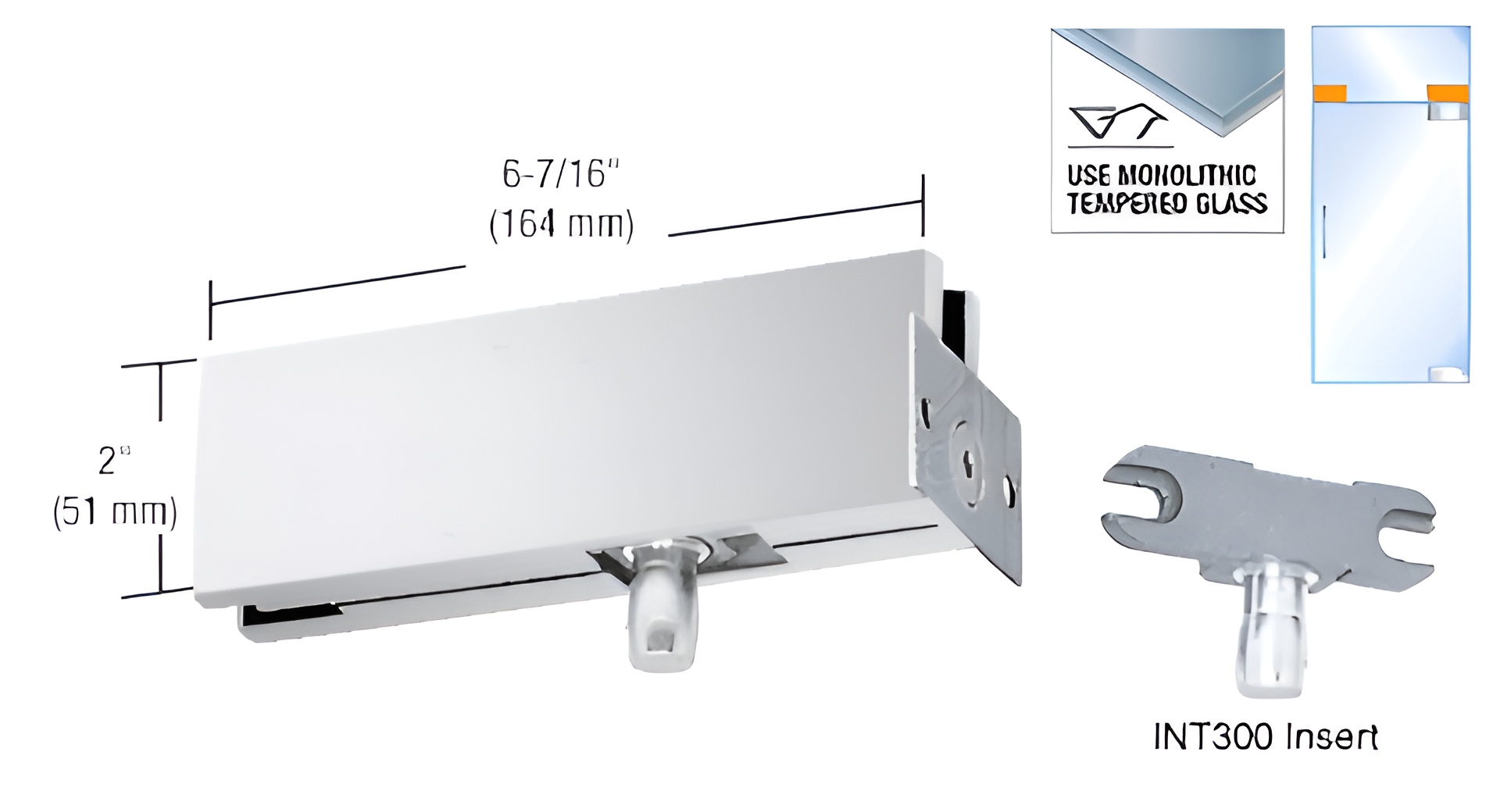

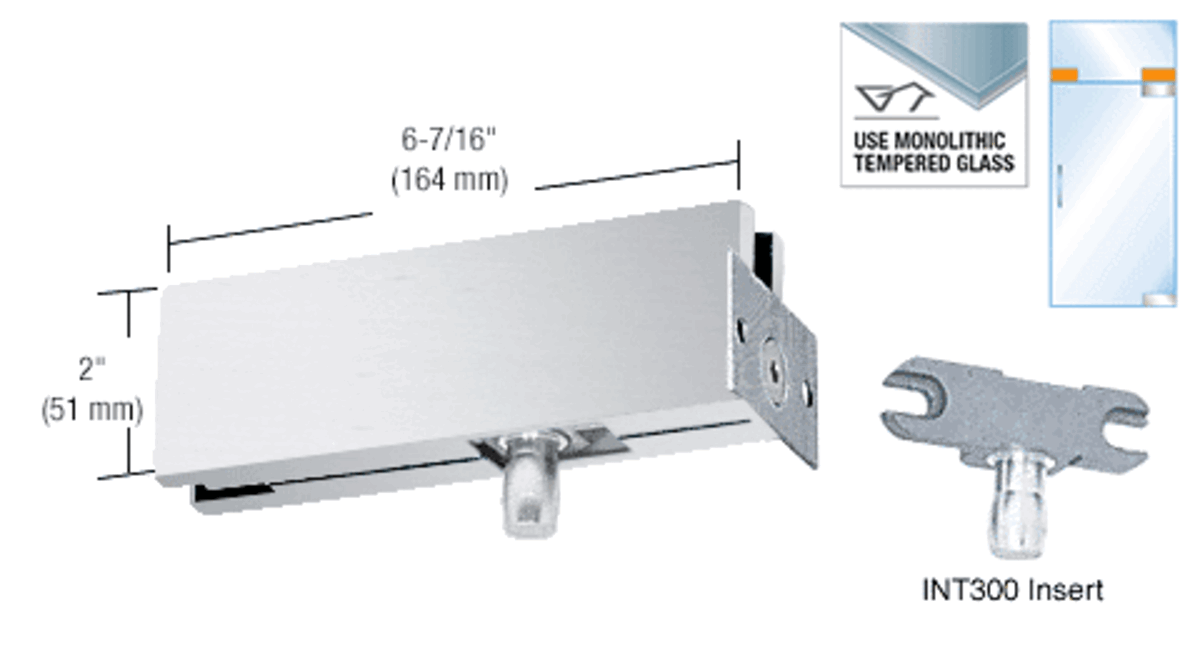

CRL PH34BS Brushed Stainless Wall-Mounted Transom Patch with 1NT300 Insert

C.R. Laurence PH34BS Brushed Stainless Wall Mounted Transom Patch with 1NT300 Insert is expertly designed to provide robust support for transoms mounted to side jambs. This versatile fixture accommodates both 2-3/4" and 2-9/16" (70 mm and 65 mm) pivot setback door patch fittings, making it an ideal choice for various door installations. Crafted for use with monolithic tempered glass, the PH34BS ensures long-lasting durability and aesthetic appeal. The inclusion of the INT300 Insert allows for seamless mounting of doors using either the CRL PH20A or PH21A Top Door Patch Fittings. This insert is adjustable on the non-hinged side, facilitating double swing door configurations. For added functionality, consider the INT306 Transom Patch Door Stop Insert for one-way door applications or the INT305L Transom Patch Keeper Insert for use with the AMR205 Lock in top door installations. Glass fabrication requirements include a 3/4" (19 mm) diameter hole and a corner notch. Note that these fittings are not compatible with laminated glass. With a brushed stainless steel finish, this transom patch not only resists corrosion but also maintains its factory appearance with periodic maintenance. Elevate your architectural projects with the reliable and stylish PH34BS Transom Patch.

Brushed Stainless Wall Mounted Transom Patch With 1NT300 Insert

• Works with Both 2-3/4" and 2-9/16" (70 and 65 mm) Pivot Setback Door Patch Fittings
• Use Monolithic Tempered Glass

Stainless Steel Advisory:

Resources

• CRL Stainless Steel Disclaimer
• PH34 Template.dwg
• PH34 Template.pdf
• Template gc-ph34.doc
