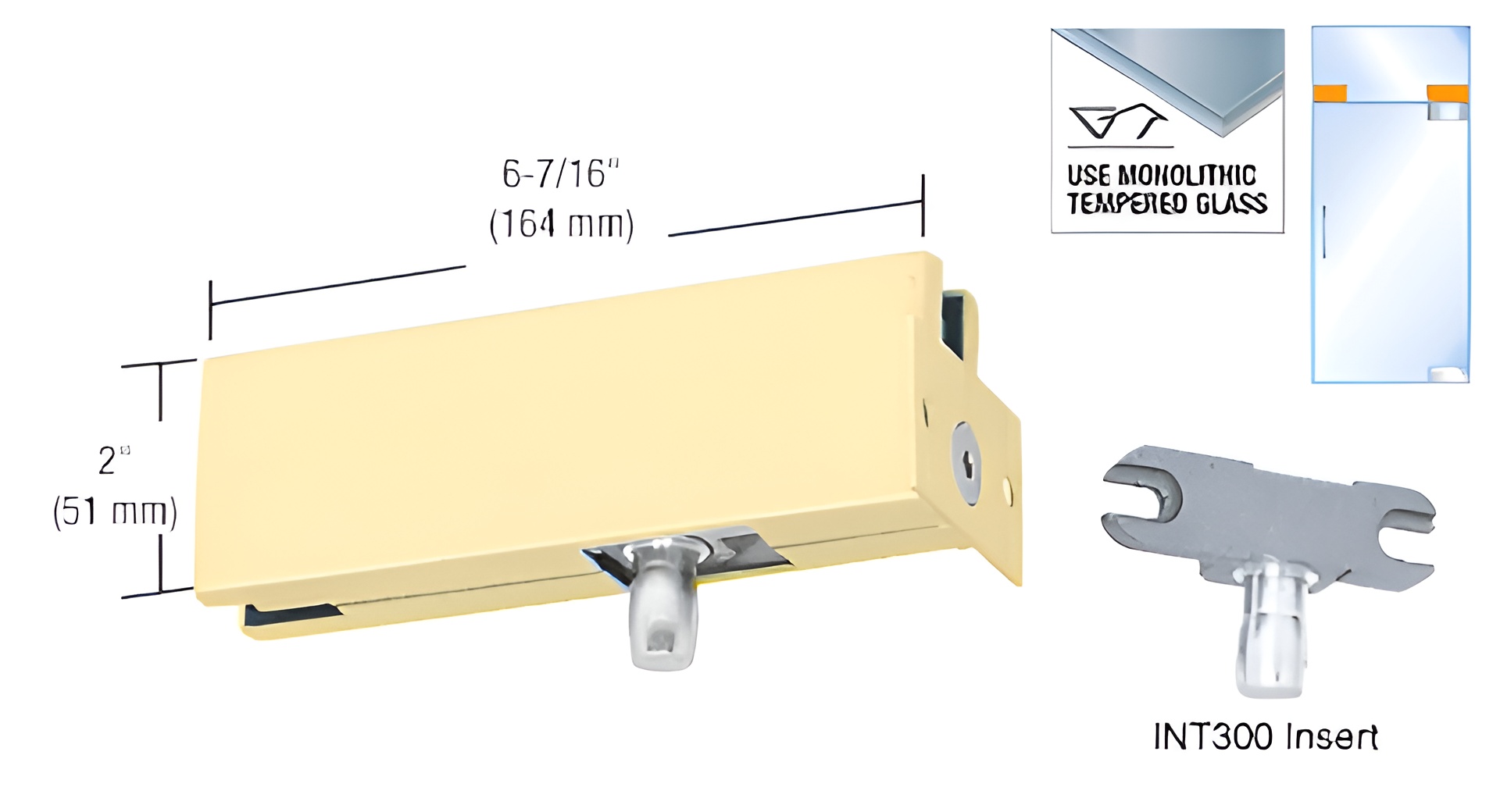

C.R. Laurence PH34SB Satin Brass Wall Mounted Transom Patch with 1NT300 Insert offers a reliable solution for supporting transoms from side jambs in various architectural settings. Designed to accommodate both 2-3/4" and 2-9/16" (70 mm and 65 mm) pivot setback door patch fittings, this transom patch is compatible with monolithic tempered glass, ensuring durability and strength. The included INT300 Insert allows for seamless installation with CRL's PH20A or PH21A Top Door Patch Fitting. Its versatile design enables positioning on the non-hinged side, making it suitable for double swing doors. For a one-way door configuration, an INT306 Transom Patch Door Stop Insert can be utilized, while an INT305L Transom Patch Keeper Insert can be paired with the AMR205 Lock for top door installations. Please note that glass fabrication requires a 3/4" (19 mm) diameter hole and corner notch. It's important to mention that these fittings are not compatible with laminated glass. Although the satin brass finish adds an elegant touch, be aware that brass may oxidize over time, leading to a tarnished appearance. For building professionals and discerning homeowners, the C.R. Laurence PH34SB provides a combination of functionality and aesthetic appeal in any project.
Satin Brass Wall Mounted Transom Patch with 1NT300 Insert
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Satin Brass
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)
Insert Type: 1NT300
Mounting Type: Wall Mount
Shipping Limitations: None
With Insert: Yes
