CRL PH40BR Polished Brass Sidelite Transom Patch with 1NT300 InsertC.R. Laurence PH40BR Polished Brass Sidelite Transom Patch With 1NT300 Insert provides a robust solution for supporting transoms from sidelite glass panels. Designed for compatibility with both 2-3/4" and 2-9/16" pivot setback door patch fittings, this transom patch accommodates 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass, ensuring durability and strength in your architectural applications. The PH40BR features an INT300 Insert, facilitating the mounting of a door with either the CRL PH20A or PH21A Top Door Patch Fitting. Its innovative design allows for the insert to be repositioned on the non-hinged side, making it suitable for double swing doors. For added versatility, the option to integrate an INT306 Transom Patch Door Stop Insert creates a one-way door configuration, while utilizing an INT305L Transom Patch Keeper Insert allows compatibility with the AMR205 Lock for secure top door installations. Should the weight of the transom exceed 100 lbs. (45.4 kg), ceiling support is recommended to prevent slippage. The product comes complete with a template and instructions for installation, ensuring a seamless setup. Please note, these fittings are not designed for laminated glass and come with a polished brass finish that may require proper maintenance to avoid tarnishing.

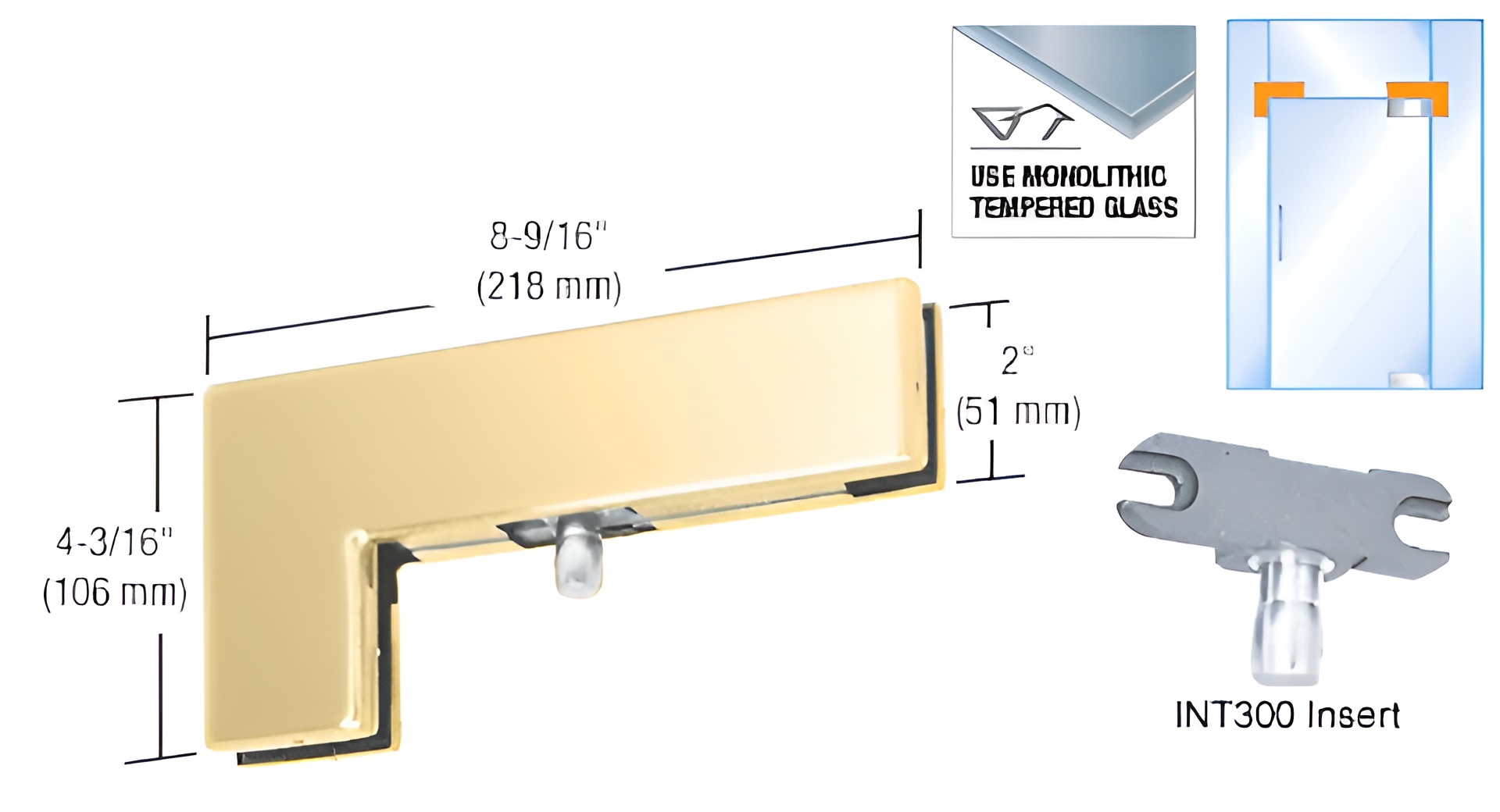

Polished Brass Sidelite Transom Patch With 1NT300 Insert
- Works with Both 2-3/4" and 2-9/16" (70 and 65 mm) Pivot Setback Door Patch Fittings
- For 3/8" or 1/2" (10 or 12 mm) Glass
- Use Monolithic Tempered Glass
The
CRL Sidelite Mounted Transom Patch is used to support a transom from a sidelite glass panel. It comes with a INT300 Insert for mounting a door with the CRL
PH20A or
PH21A Top Door Patch Fitting. The Insert can also be moved on the non-hinged side, allowing for a double swing door. A
INT306 Transom Patch Door Stop Insert can be used to create a one way door. Also, a
INT305 Transom Patch Keeper Insert can be installed for use with an
AMR205 Lock when used for top of the door installation.
If the weight of the transom exceeds 100 lbs. (45.4 kg) the transom must be supported from the ceiling. This is to prevent the Patches from slipping from too much weight. Use either Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings. Please contact our Technical Sales Department for assistance.
GLASS FABRICATION REQUIRED:
Three 7/8" (25 mm) Diameter
Holes and Corner Notch
COMES WITH:
Template and Instructions
Product Warning:
NOTE: These fittings are not for use with laminated glass.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Polished Brass
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)
Insert Type: 1NT300
Mounting Type: Sidelite
Shipping Limitations: None
With Insert: Yes
