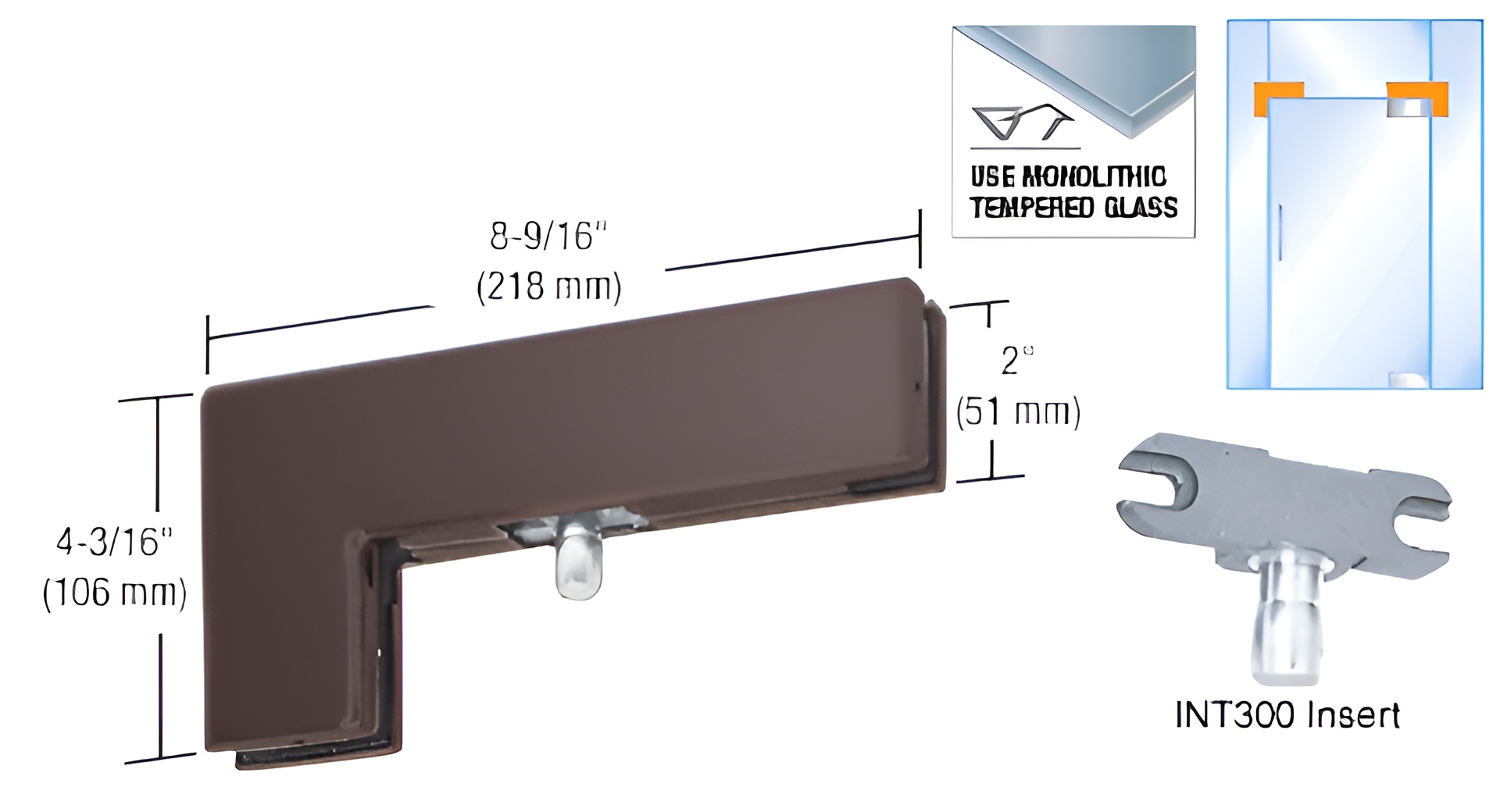

CRL PH40DU Dark Bronze Sidelite Transom Patch with 1NT300 Insert

C.R. Laurence PH40DU Dark Bronze Sidelite Transom Patch With 1NT300 Insert is expertly designed to provide robust support for transoms mounted from sidelite glass panels. This versatile patch accommodates both 2-3/4" and 2-9/16" pivot setback door patch fittings, making it ideal for various installations. Compatible with 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass, it ensures a strong and secure connection for your glass structures. The included 1NT300 insert allows for seamless integration with popular door patch fittings like the CRL PH20A and PH21A, while also offering flexibility for double swing door configurations by allowing the insert to be relocated on the non-hinged side. For those needing a one-way door, the optional INT306 transom patch door stop insert provides an effective solution. Additionally, the INT305 transom patch keeper insert works in conjunction with the AMR205 lock for enhanced security. It's essential to note that if the transom exceeds 100 lbs. (45.4 kg), ceiling support is required to maintain stability. This product comes complete with a template and instructions for easy installation. Please remember that laminated glass is not compatible with this fitting. With its sleek black bronze anodized finish, the PH40DU combines functionality with an elegant appearance.

Dark Bronze Sidelite Transom Patch With 1NT300 Insert

• Works with Both 2-3/4" and 2-9/16" (70 and 65 mm) Pivot Setback Door Patch Fittings
• For 3/8" or 1/2" (10 or 12 mm) Glass
• Use Monolithic Tempered Glass

Resources

• Glass Cutout Template PH40B.pdf
• Patch Dimensions PH40A.pdf
