C.R. Laurence PH40MBL Matte Black Sidelite Transom Patch With 1NT300 Insert is engineered for optimal support of transoms from sidelite glass panels. This versatile patch fitting accommodates both 2-3/4" and 2-9/16" (70 mm and 65 mm) pivot setback door patch fittings, making it an ideal choice for various installations. Designed for use with 3/8" or 1/2" (10 mm or 12 mm) monolithic tempered glass, it is essential for creating sleek and modern door systems. The included INT300 Insert allows for seamless mounting with CRL PH20A or PH21A Top Door Patch Fittings. Its adaptability extends to double swing doors, as the insert can be repositioned on the non-hinged side. For additional functionality, consider the INT306 Transom Patch Door Stop Insert for a one-way door or the INT305 Transom Patch Keeper Insert when incorporating an AMR205 Lock for top door installations. To ensure safety, any transom exceeding 100 lbs. (45.4 kg) must be supported from the ceiling. This patch fitting comes complete with a template and instructions for straightforward installation. Please note that these fittings are not compatible with laminated glass. Choose the PH40MBL for a refined and durable solution in your architectural projects.

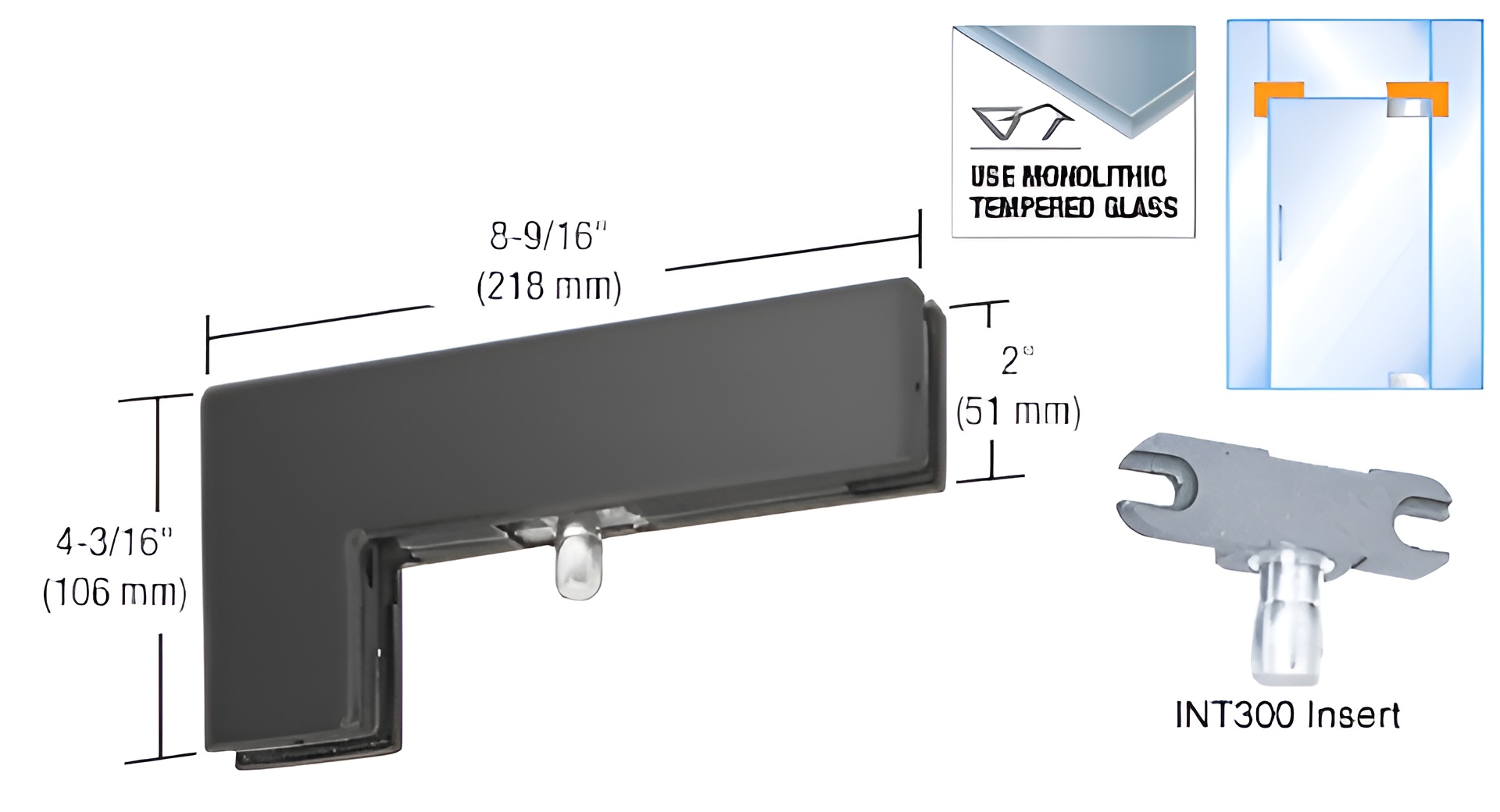

Matte Black Sidelite Transom Patch With 1NT300 Insert

• Works with Both 2-3/4" and 2-9/16" (70 and 65 mm) Pivot Setback Door Patch Fittings
• For 3/8" or 1/2" (10 or 12 mm) Glass
• Use Monolithic Tempered Glass

The CRL Sidelite Mounted Transom Patch is used to support a transom from a sidelite glass panel. It comes with a INT300 Insert for mounting a door with the CRL PH20A or PH21A Top Door Patch Fitting. The Insert can also be moved on the non-hinged side, allowing for a double swing door. A INT306 Transom Patch Door Stop Insert can be used to create a one way door. Also, a INT305 Transom Patch Keeper Insert can be installed for use with an AMR205 Lock when used for top of the door installation.

Resources

• Glass Cutout Template PH40B.pdf
