CRL PH40PS Polished Stainless Sidelite Transom Patch with 1NT300 InsertC.R. Laurence PH40PS Polished Stainless Sidelite Transom Patch with 1NT300 Insert provides robust support for transom installations from sidelite glass panels. Designed to accommodate both 2-3/4" and 2-9/16" pivot setback door patch fittings, this versatile patch is compatible with 3/8" or 1/2" (10 mm or 12 mm) monolithic tempered glass, ensuring a secure and durable connection. The integrated INT300 Insert simplifies mounting with CRL's PH20A or PH21A Top Door Patch Fittings, while its adjustable feature allows for a seamless installation on the non-hinged side, making it suitable for double swing doors. For additional functionality, the INT306 Transom Patch Door Stop Insert and INT305 Transom Patch Keeper Insert can be employed for one-way door setups and enhanced locking mechanisms, respectively. It is important to note that if the transom exceeds 100 lbs. (45.4 kg), ceiling support is advised to prevent slippage. The product comes complete with a template and instructions for easy installation, and it requires specific glass fabrication with three 7/8" (25 mm) diameter holes and a corner notch. Crafted from polished stainless steel, this transom patch combines aesthetic appeal with functional strength, making it an ideal choice for modern architectural projects.

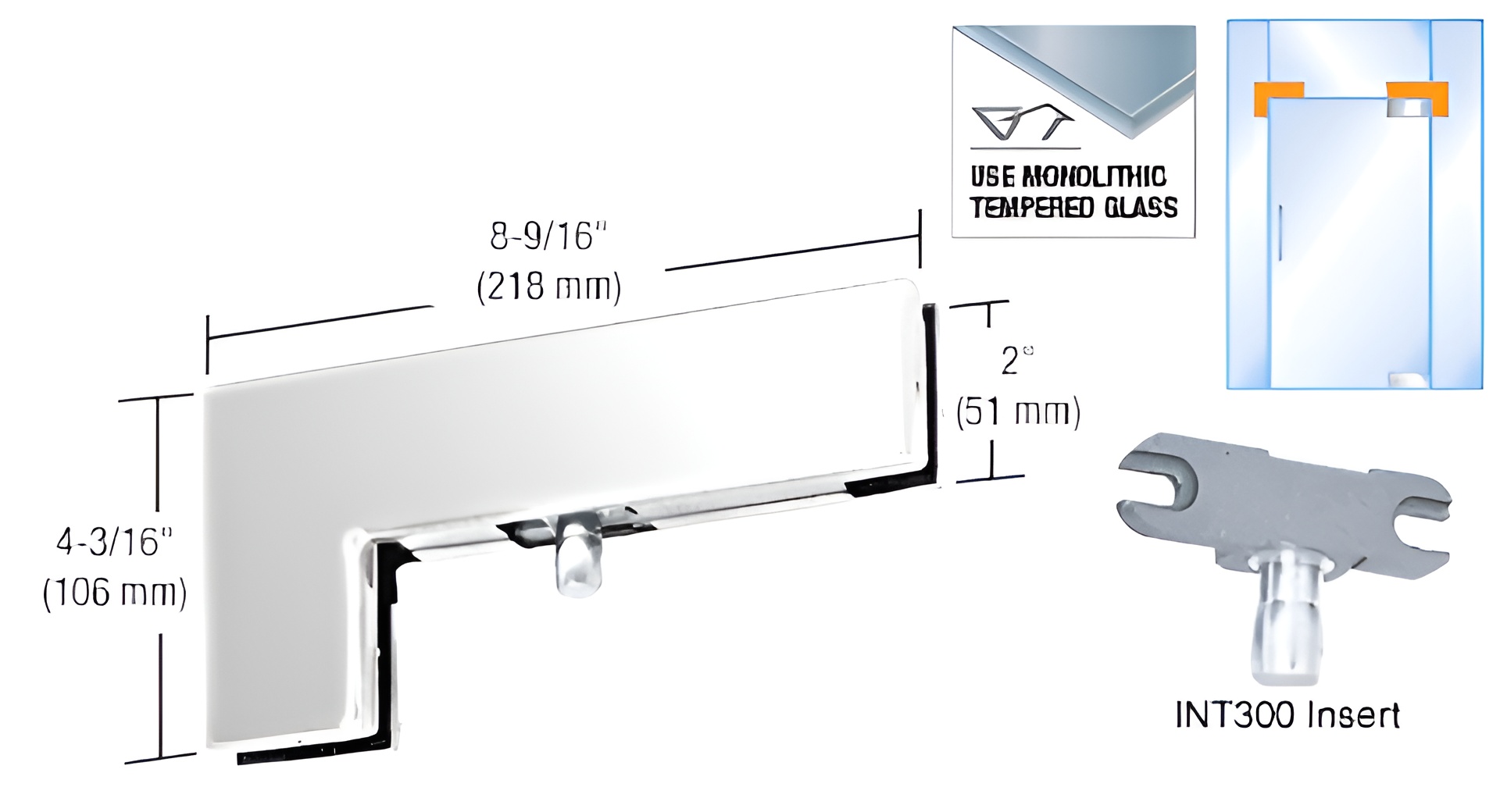

Polished Stainless Sidelite Transom Patch With 1NT300 Insert
- Works with Both 2-3/4" and 2-9/16" (70 and 65 mm) Pivot Setback Door Patch Fittings
- For 3/8" or 1/2" (10 or 12 mm) Glass
- Use Monolithic Tempered Glass
The
CRL Sidelite Mounted Transom Patch is used to support a transom from a sidelite glass panel. It comes with a INT300 Insert for mounting a door with the CRL
PH20A or
PH21A Top Door Patch Fitting. The Insert can also be moved on the non-hinged side, allowing for a double swing door. A
INT306 Transom Patch Door Stop Insert can be used to create a one way door. Also, a
INT305 Transom Patch Keeper Insert can be installed for use with an
AMR205 Lock when used for top of the door installation.
If the weight of the transom exceeds 100 lbs. (45.4 kg) the transom must be supported from the ceiling. This is to prevent the Patches from slipping from too much weight. Use either Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings. Please contact our Technical Sales Department for assistance.
GLASS FABRICATION REQUIRED:
Three 7/8" (25 mm) Diameter
Holes and Corner Notch
COMES WITH:
Template and Instructions
Product Warning:
NOTE: These fittings are not for use with laminated glass.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Polished Stainless Steel
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)
Insert Type: 1NT300
Mounting Type: Sidelite
Shipping Limitations: None
With Insert: Yes
