CRL PH40SB Satin Brass Sidelite Transom Patch with 1NT300 InsertC.R. Laurence PH40SB Satin Brass Sidelite Transom Patch With 1NT300 Insert offers a robust solution for supporting transoms from sidelite glass panels. Designed to accommodate both 2-3/4" and 2-9/16" pivot setback door patch fittings, this versatile patch is compatible with 3/8" or 1/2" (10 or 12 mm) glass, specifically monolithic tempered glass. The PH40SB includes an INT300 insert, making it easy to mount doors with the CRL PH20A or PH21A top door patch fittings. Its smart design allows for the insert to be repositioned on the non-hinged side, facilitating double swing door applications. For one-way door setups, consider integrating the INT306 transom patch door stop insert, while the INT305L patch keeper insert can be utilized with the AMR205 lock for top installations. It's important to note that if the transom exceeds 100 lbs. (45.4 kg), it must be ceiling-supported to prevent slippage. This product comes complete with a template and instructions for straightforward installation, and it is imperative to remember that laminated glass is not compatible with this fitting. The satin brass finish adds a touch of elegance, though it is susceptible to oxidation, potentially leading to a tarnished appearance over time.

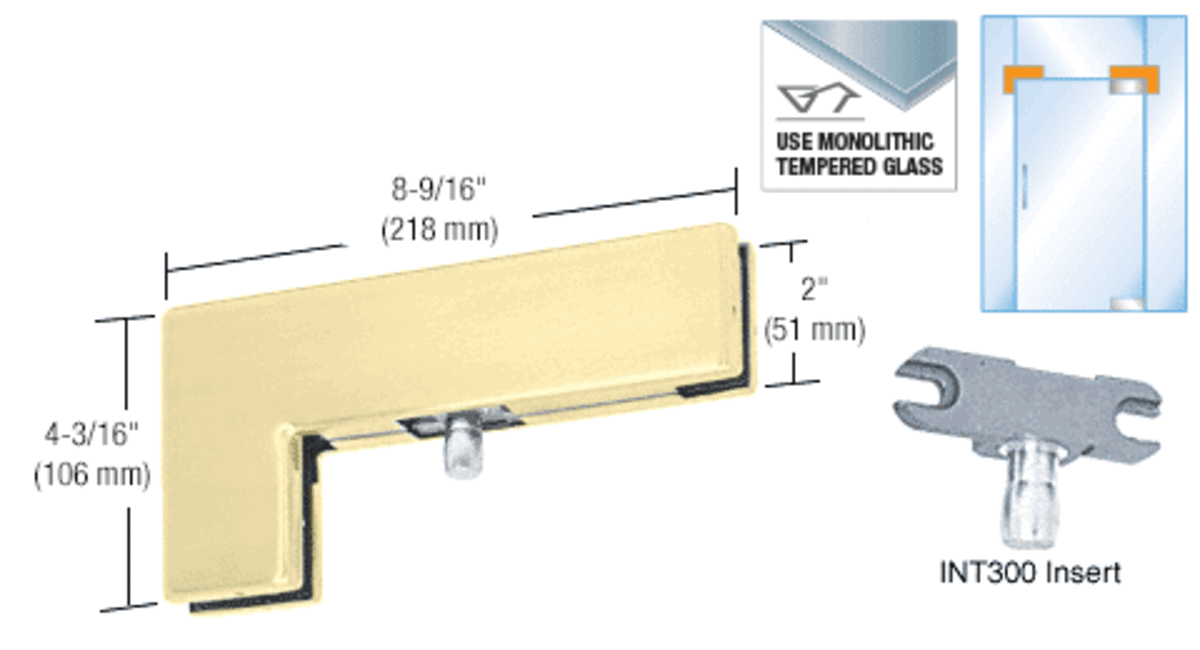

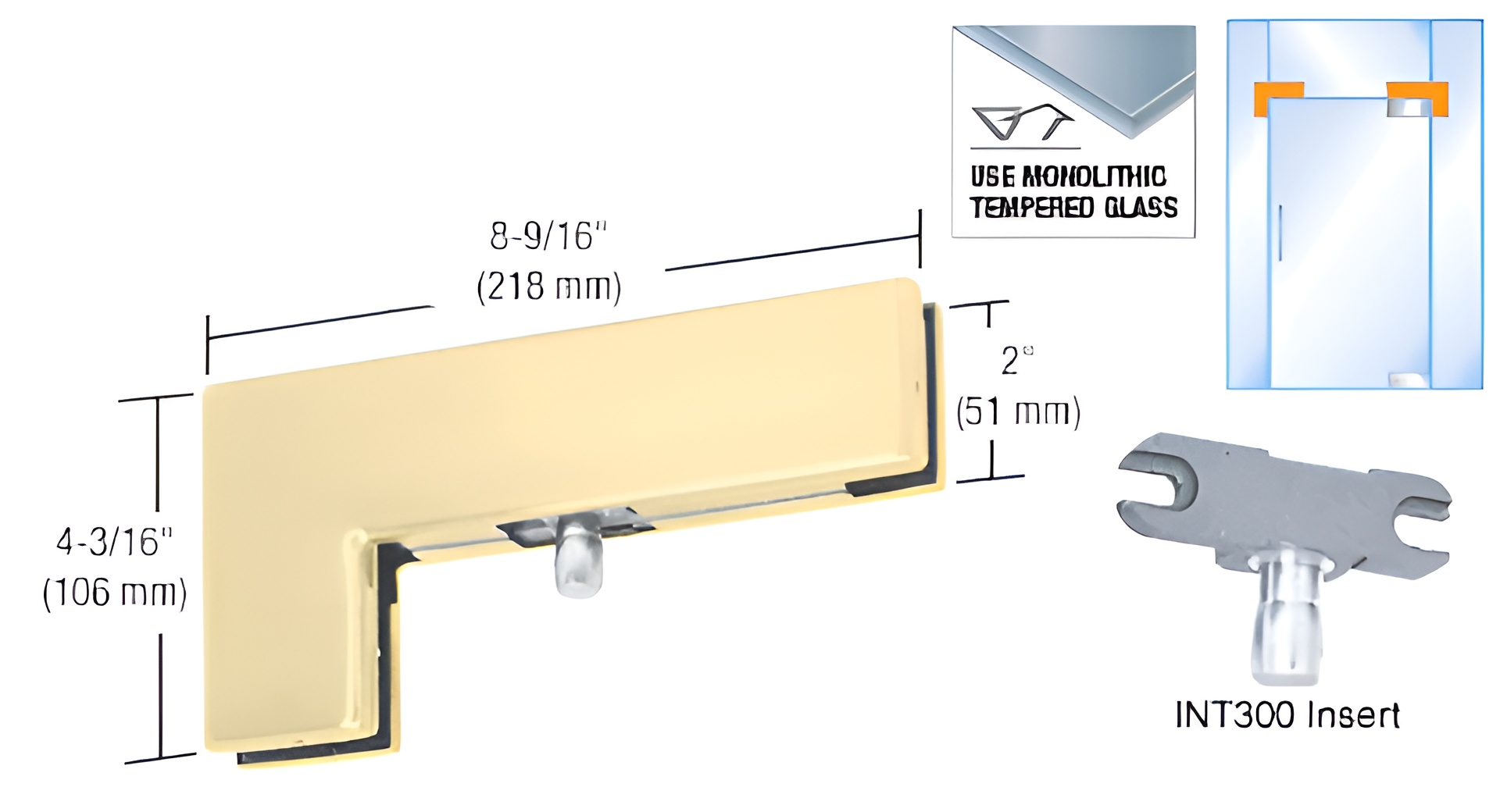

Satin Brass Sidelite Transom Patch With 1NT300 Insert
- Works with Both 2-3/4" and 2-9/16" (70 and 65 mm) Pivot Setback Door Patch Fittings
- For 3/8" or 1/2" (10 or 12 mm) Glass
- Use Monolithic Tempered Glass
The
CRL Sidelite Mounted Transom Patch is used to support a transom from a sidelite glass panel. It comes with a INT300 Insert for mounting a door with the CRL
PH20A or
PH21A Top Door Patch Fitting. The Insert can also be moved on the non-hinged side, allowing for a double swing door. A
INT306 Transom Patch Door Stop Insert can be used to create a one way door. Also, a
INT305 Transom Patch Keeper Insert can be installed for use with an
AMR205 Lock when used for top of the door installation.
If the weight of the transom exceeds 100 lbs. (45.4 kg) the transom must be supported from the ceiling. This is to prevent the Patches from slipping from too much weight. Use either Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings. Please contact our Technical Sales Department for assistance.
GLASS FABRICATION REQUIRED:
Three 7/8" (25 mm) Diameter
Holes and Corner Notch
COMES WITH:
Template and Instructions
Product Warning:
NOTE: These fittings are not for use with laminated glass.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Satin Brass
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)
Insert Type: 1NT300
Mounting Type: Sidelite
Shipping Limitations: None
With Insert: Yes
