CRL PH41LA Satin Anodized Left Hand Sidelite Transom Patch with Support Fin and InsertC.R. Laurence PH41LA Satin Anodized Left Hand Sidelite Transom Patch with Support Fin Bracket and 1NT300 Insert offers a robust solution for supporting transoms from sidelite glass panels. Designed for compatibility with both 2-3/4" and 2-9/16" pivot setback door patch fittings, this transom patch accommodates glass thicknesses of 3/8" or 1/2" (10 or 12 mm), making it versatile for various applications. The PH41LA features a left-handed configuration and includes the 1NT300 Insert, enabling seamless mounting with CRL’s PH20A or PH21A top door patch fittings. For single door installations, the insert can be easily removed on the non-hinged side, allowing for double swinging doors. Additional inserts, such as the INT306 Transom Patch Door Stop Insert, can create a one-way door configuration, while the INT305 Transom Patch Keeper Insert works with AMR205 locks for enhanced security. This transom patch is ideal for monolithic tempered glass applications and must be secured to the ceiling with an appropriate support fin bracket when handling transoms exceeding 100 lbs. (45.4 kg). Complete with a template and instructions, the PH41LA ensures a straightforward installation process. Please note, these fittings are not suitable for laminated glass.

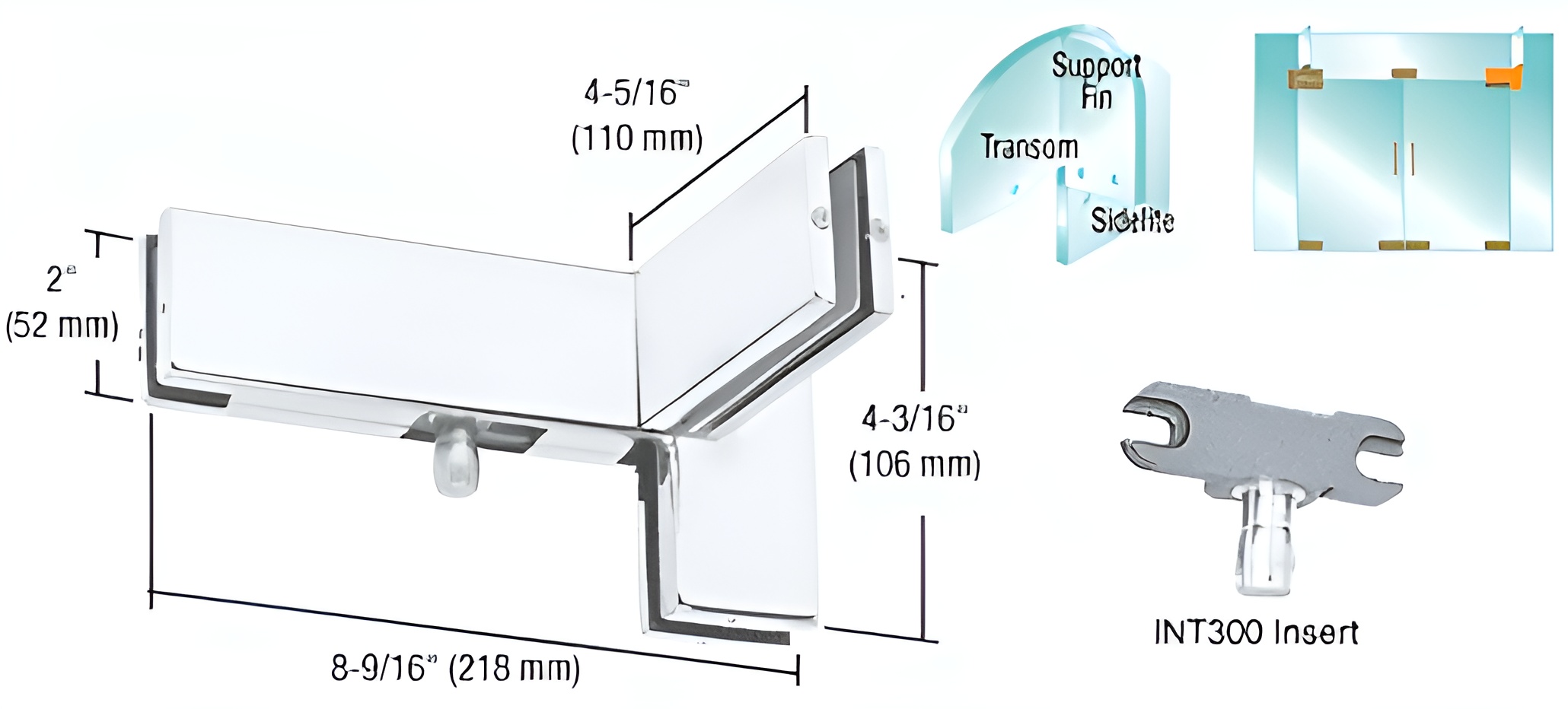

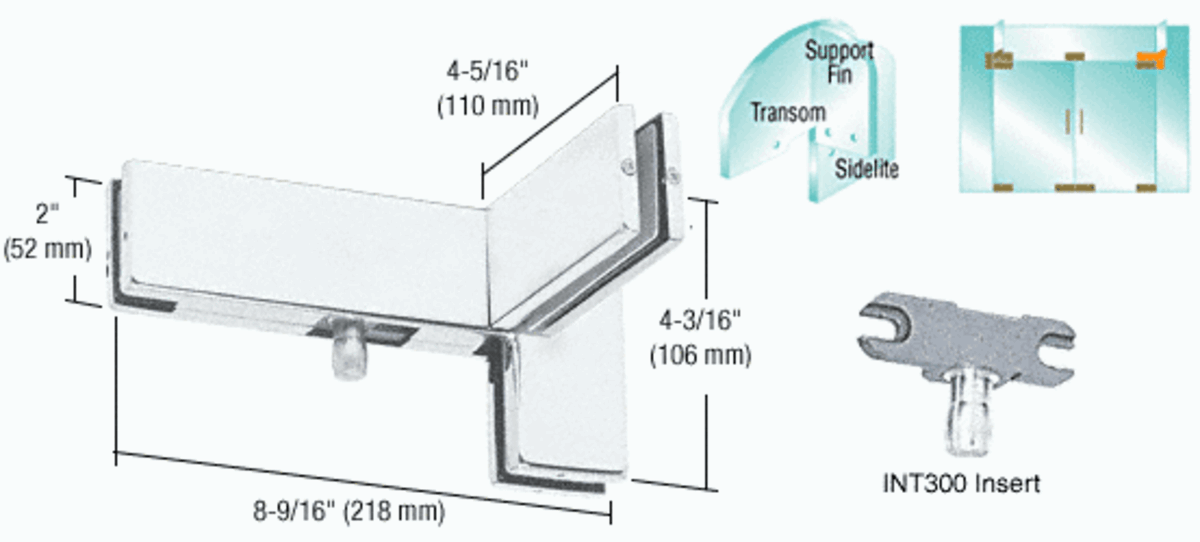

Satin Anodized Left Hand Sidelite Transom Patch with Support Fin Bracket and 1NT300 Insert
- Works with Both 2-3/4" and 2-9/16" (70 and 65 mm) Pivot Setback Door Patch Fittings
- For 3/8" or 1/2" (10 or 12 mm) Glass
- Left and Right Handed
- Use Monolithic Tempered Glass
The
CRL Left Hand Sidelite Mounted Transom Patch with Support Fin Bracket is used to support a transom from a sidelite glass panel. It comes with a
INT300 Insert for mounting a door with a CRL
PH20A or
PH21A Top Door Patch Fitting. For single doors, the insert can be removed on the non-hinged side allowing for a double swinging door. A
INT306 Transom Patch Door Stop Insert can be used to create a one way door. Also, a
INT305 Transom Patch Keeper Insert can be installed for use with an
AMR205 Lock when used for a top of the door installation. The support fin glass should be sized in accordance with approved design criteria (refer to GANA or Manufacturers Manual) and secured to the ceiling with a
Ceiling Mounted Support Fin Bracket.
If the weight of the transom exceeds 100 lbs. (45.4 kg) the transom must be supported from the ceiling. This is to prevent the Patches from slipping from too much weight. Use either Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings. Please contact our Technical Sales Department for assistance.
GLASS FABRICATION REQUIRED:
Five 3/4" (19 mm) Diameter
Holes and Two Corner Notches
COMES WITH:
Template and Instructions
Product Warning:
These fittings are not for use with Laminated Glass.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Satin Anodized
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)
Handing: Left Hand
Insert Type: 1NT300
Mounting Type: Sidelite
Shipping Limitations: None
With Insert: Yes
