CRL PH41LBR Polished Brass Left-Hand Sidelite Transom Patch with Support Fin BracketC.R. Laurence PH41LBR Polished Brass Left Hand Sidelite Transom Patch With Support Fin Bracket and 1NT300 Insert offers a robust solution for supporting transoms from sidelite glass panels. Designed for compatibility with both 2-3/4" and 2-9/16" pivot setback door patch fittings, this product accommodates 3/8" or 1/2" glass thickness, making it versatile for various applications. The left-hand configuration ensures precise installation, while the included 1NT300 insert allows seamless mounting with CRL's PH20A or PH21A top door patch fittings. For added flexibility, the insert can be removed on the non-hinged side for double swinging doors, or an INT306 Transom Patch Door Stop Insert can be used to create a one-way door. To maintain safety and structural integrity, the support fin glass should be correctly sized and secured to the ceiling, especially when dealing with transoms weighing over 100 lbs. (45.4 kg). Glass fabrication requires five 3/4" diameter holes and two corner notches, with all necessary templates and instructions included for user convenience. Please note, these fittings are not suitable for laminated glass. With its polished brass finish, the PH41LBR combines functionality with an elegant appearance, making it a preferred choice among building professionals and discerning homeowners.
Polished Brass Left Hand Sidelite Transom Patch With Support Fin Bracket and 1NT300 Insert
- Works with Both 2-3/4" and 2-9/16" (70 and 65 mm) Pivot Setback Door Patch Fittings
- For 3/8" or 1/2" (10 or 12 mm) Glass
- Left and Right Handed
- Use Monolithic Tempered Glass
The

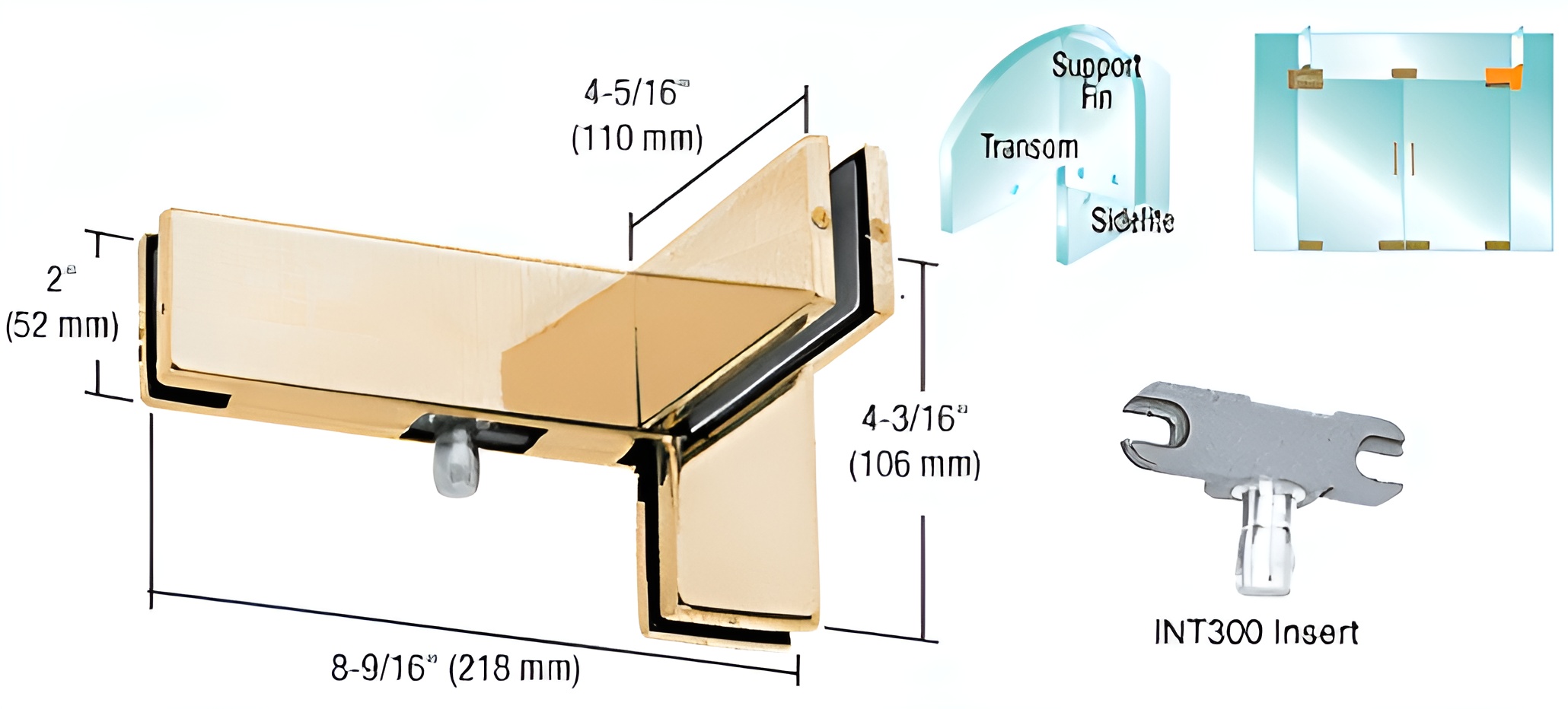

CRL Left Hand Sidelite Mounted Transom Patch with Support Fin Bracket is used to support a transom from a sidelite glass panel. It comes with a
INT300 Insert for mounting a door with a CRL
PH20A or
PH21A Top Door Patch Fitting. For single doors, the insert can be removed on the non-hinged side allowing for a double swinging door. A
INT306 Transom Patch Door Stop Insert can be used to create a one way door. Also, a
INT305 Transom Patch Keeper Insert can be installed for use with an
AMR205 Lock when used for a top of the door installation. The support fin glass should be sized in accordance with approved design criteria (refer to GANA or Manufacturers Manual) and secured to the ceiling with a
Ceiling Mounted Support Fin Bracket.
If the weight of the transom exceeds 100 lbs. (45.4 kg) the transom must be supported from the ceiling. This is to prevent the Patches from slipping from too much weight. Use either Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings. Please contact our Technical Sales Department for assistance.
GLASS FABRICATION REQUIRED:
Five 3/4" (19 mm) Diameter
Holes and Two Corner Notches
COMES WITH:
Template and Instructions
Product Warning:
These fittings are not for use with Laminated Glass.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Polished Brass
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)
Handing: Left Hand
Insert Type: 1NT300
Mounting Type: Sidelite
Shipping Limitations: None
With Insert: Yes
