CRL PH41LBS Brushed Stainless Left-Hand Sidelite Transom Patch with Support FinC.R. Laurence PH41LBS Brushed Stainless Left Hand Sidelite Transom Patch with Support Fin Bracket and 1NT300 Insert is expertly designed to provide robust support for transoms from sidelite glass panels. This versatile transom patch is compatible with both 2-3/4" and 2-9/16" (70 and 65 mm) pivot setback door patch fittings and can accommodate glass thicknesses of either 3/8" or 1/2" (10 or 12 mm), ensuring flexibility in your architectural designs. Engineered for both left and right-handed applications, this patch includes the 1NT300 insert, which simplifies the mounting of doors with compatible CRL top door patch fittings. For single door installations, the insert can be easily removed on the non-hinged side, allowing for a double swinging door configuration. Additionally, the option to use either an INT306 Transom Patch Door Stop Insert or an INT305 Transom Patch Keeper Insert enhances its functionality. It's important to note that when the transom exceeds 100 lbs. (45.4 kg), ceiling support is necessary to prevent slippage. This product comes complete with a template and instructions for straightforward installation. Crafted from brushed stainless steel, the PH41LBS combines durability with a sleek finish, making it an ideal choice for modern architectural applications.
Brushed Stainless Left Hand Sidelite Transom Patch with Support Fin Bracket and 1NT300 Insert
- Works with Both 2-3/4" and 2-9/16" (70 and 65 mm) Pivot Setback Door Patch Fittings
- For 3/8" or 1/2" (10 or 12 mm) Glass
- Left and Right Handed
- Use Monolithic Tempered Glass
The

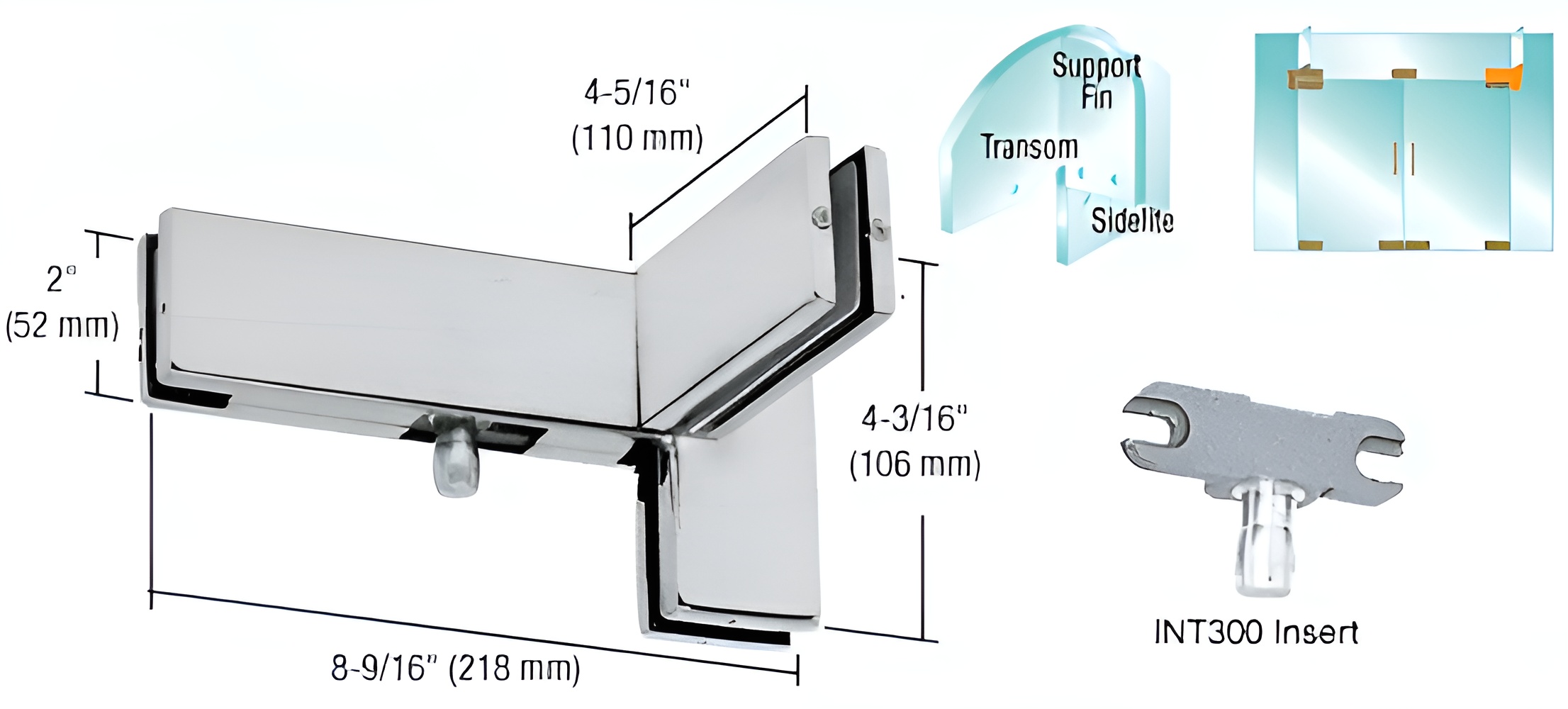

CRL Left Hand Sidelite Mounted Transom Patch with Support Fin Bracket is used to support a transom from a sidelite glass panel. It comes with a
INT300 Insert for mounting a door with a CRL
PH20A or
PH21A Top Door Patch Fitting. For single doors, the insert can be removed on the non-hinged side allowing for a double swinging door. A
INT306 Transom Patch Door Stop Insert can be used to create a one way door. Also, a
INT305 Transom Patch Keeper Insert can be installed for use with an
AMR205 Lock when used for a top of the door installation. The support fin glass should be sized in accordance with approved design criteria (refer to GANA or Manufacturers Manual) and secured to the ceiling with a
Ceiling Mounted Support Fin Bracket.
If the weight of the transom exceeds 100 lbs. (45.4 kg) the transom must be supported from the ceiling. This is to prevent the Patches from slipping from too much weight. Use either Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings. Please contact our Technical Sales Department for assistance.
GLASS FABRICATION REQUIRED:
Five 3/4" (19 mm) Diameter
Holes and Two Corner Notches
COMES WITH:
Template and Instructions
Product Warning:
These fittings are not for use with Laminated Glass.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
