CRL PH41LDU Dark Bronze Left Hand Sidelite Transom Patch with Support Fin BracketC.R. Laurence PH41LDU Dark Bronze Left Hand Sidelite Transom Patch With Support Fin Bracket and 1NT300 Insert is expertly designed to provide robust support for transoms mounted from sidelite glass panels. This versatile patch fitting accommodates both 2-3/4" and 2-9/16" (70 mm and 65 mm) pivot setback door patch fittings, ensuring compatibility with multiple configurations. It is suitable for use with 3/8" or 1/2" (10 mm or 12 mm) monolithic tempered glass, making it a reliable choice for various applications. The product comes equipped with a 1NT300 insert, facilitating the mounting of doors with compatible CRL top door patch fittings, such as the PH20A or PH21A. Its left-handed design allows for seamless integration into your architectural projects. For added versatility, the insert can be removed on the non-hinged side, allowing for double swinging door setups. This patch fitting requires specific glass fabrication, including five 3/4" (19 mm) diameter holes and two corner notches. Additionally, if the transom weight exceeds 100 lbs. (45.4 kg), it must be supported from the ceiling to ensure stability. Complete with a template and instructions, the PH41LDU is an essential component for professional-grade installations. Please note that these fittings are not suitable for laminated glass.

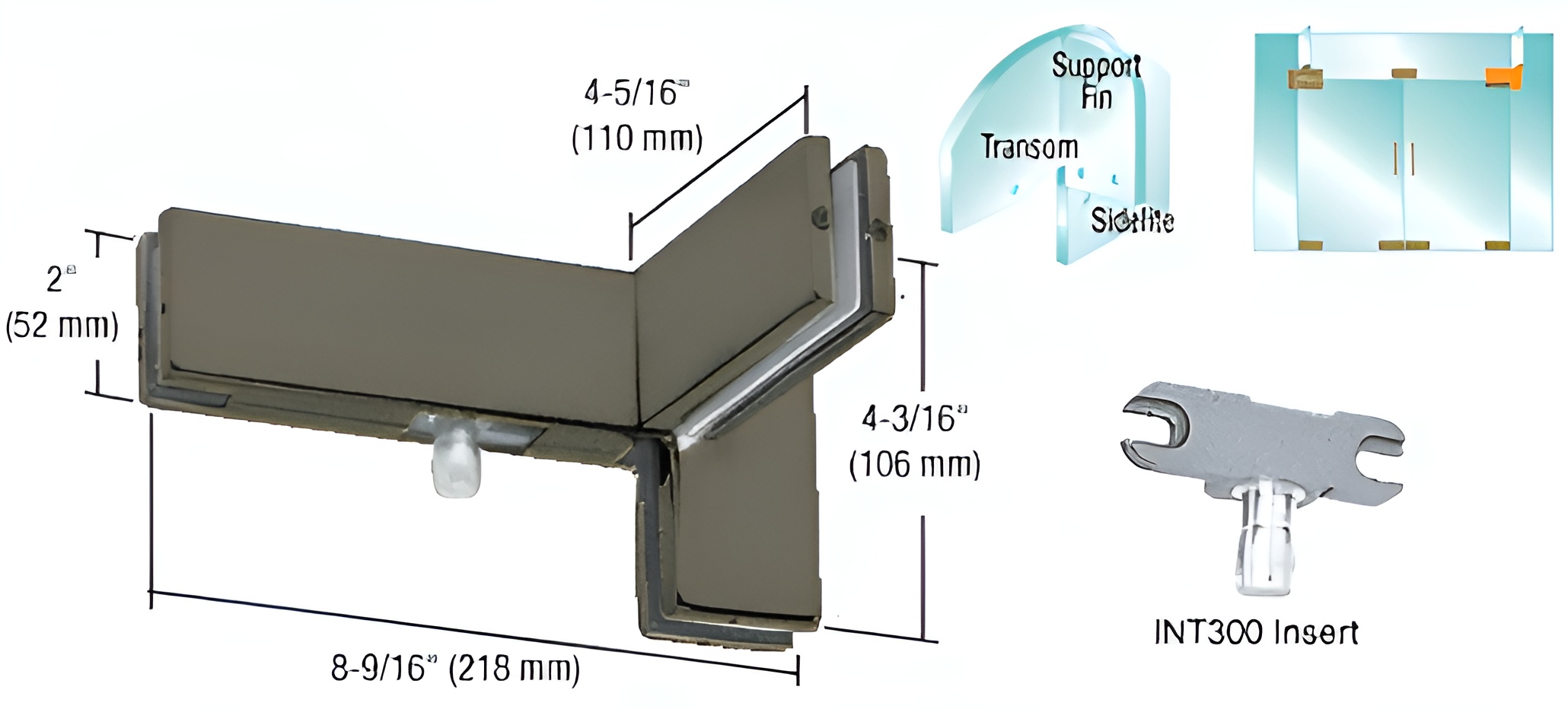

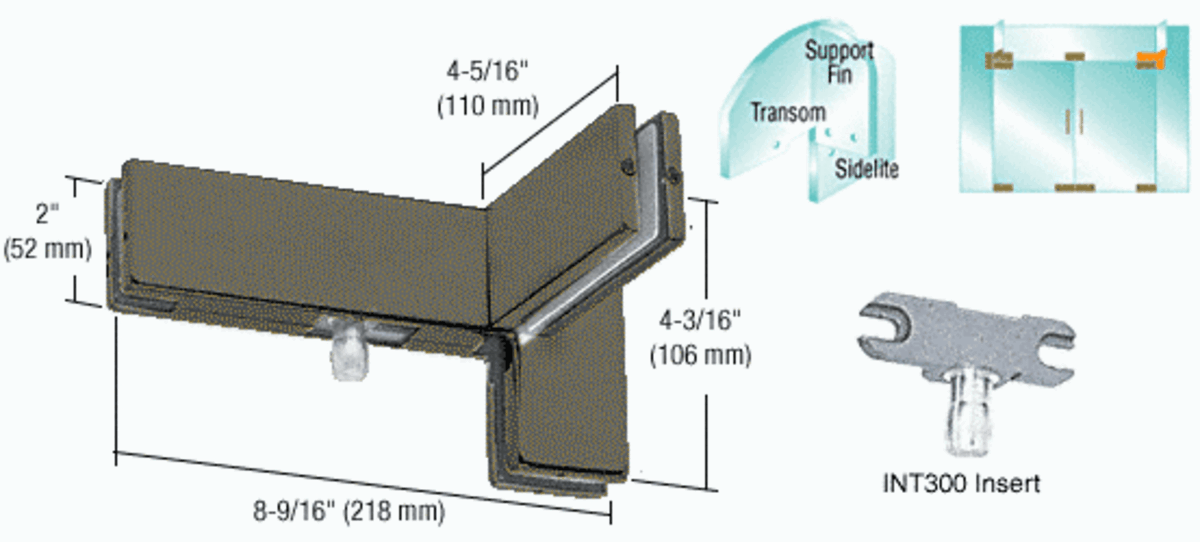

Dark Bronze Left Hand Sidelite Transom Patch With Support Fin Bracket and 1NT300 Insert
- Works with Both 2-3/4" and 2-9/16" (70 and 65 mm) Pivot Setback Door Patch Fittings
- For 3/8" or 1/2" (10 or 12 mm) Glass
- Left and Right Handed
- Use Monolithic Tempered Glass
The
CRL Left Hand Sidelite Mounted Transom Patch with Support Fin Bracket is used to support a transom from a sidelite glass panel. It comes with a
INT300 Insert for mounting a door with a CRL
PH20A or
PH21A Top Door Patch Fitting. For single doors, the insert can be removed on the non-hinged side allowing for a double swinging door. A
INT306 Transom Patch Door Stop Insert can be used to create a one way door. Also, a
INT305 Transom Patch Keeper Insert can be installed for use with an
AMR205 Lock when used for a top of the door installation. The support fin glass should be sized in accordance with approved design criteria (refer to GANA or Manufacturers Manual) and secured to the ceiling with a
Ceiling Mounted Support Fin Bracket.
If the weight of the transom exceeds 100 lbs. (45.4 kg) the transom must be supported from the ceiling. This is to prevent the Patches from slipping from too much weight. Use either Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings. Please contact our Technical Sales Department for assistance.
GLASS FABRICATION REQUIRED:
Five 3/4" (19 mm) Diameter
Holes and Two Corner Notches
COMES WITH:
Template and Instructions
Product Warning:
These fittings are not for use with Laminated Glass.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Black Bronze Anodized
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)
Handing: Left Hand
Insert Type: 1NT300
Mounting Type: Sidelite
Shipping Limitations: None
With Insert: Yes
