CRL PH41LPS Polished Stainless Left-Hand Sidelite Transom Patch with Support FinC.R. Laurence PH41LPS Polished Stainless Left Hand Sidelite Transom Patch with Support Fin Bracket and 1NT300 Insert offers a robust solution for supporting transoms from sidelite glass panels. Designed for use with both 2-3/4" and 2-9/16" pivot setback door patch fittings, this versatile patch accommodates 3/8" or 1/2" tempered glass, catering to various installation needs. Equipped with the 1NT300 insert, it facilitates mounting on doors fitted with CRL’s PH20A or PH21A top door patches. For single door applications, the insert can be removed from the non-hinged side, allowing for double swinging doors. Additionally, options for one-way doors and lock installations with the INT306 and INT305L inserts enhance the product's functionality. The support fin bracket must be secured to the ceiling, especially when the transom exceeds 100 lbs., ensuring stability and safety. Proper glass fabrication is essential, requiring five 3/4" diameter holes and two corner notches. Each unit comes complete with a template and instructions for seamless installation. Crafted from polished stainless steel, this transom patch not only ensures durability but also adds a touch of elegance. Note that these fittings are not suitable for laminated glass, and periodic maintenance is recommended to preserve their finish.

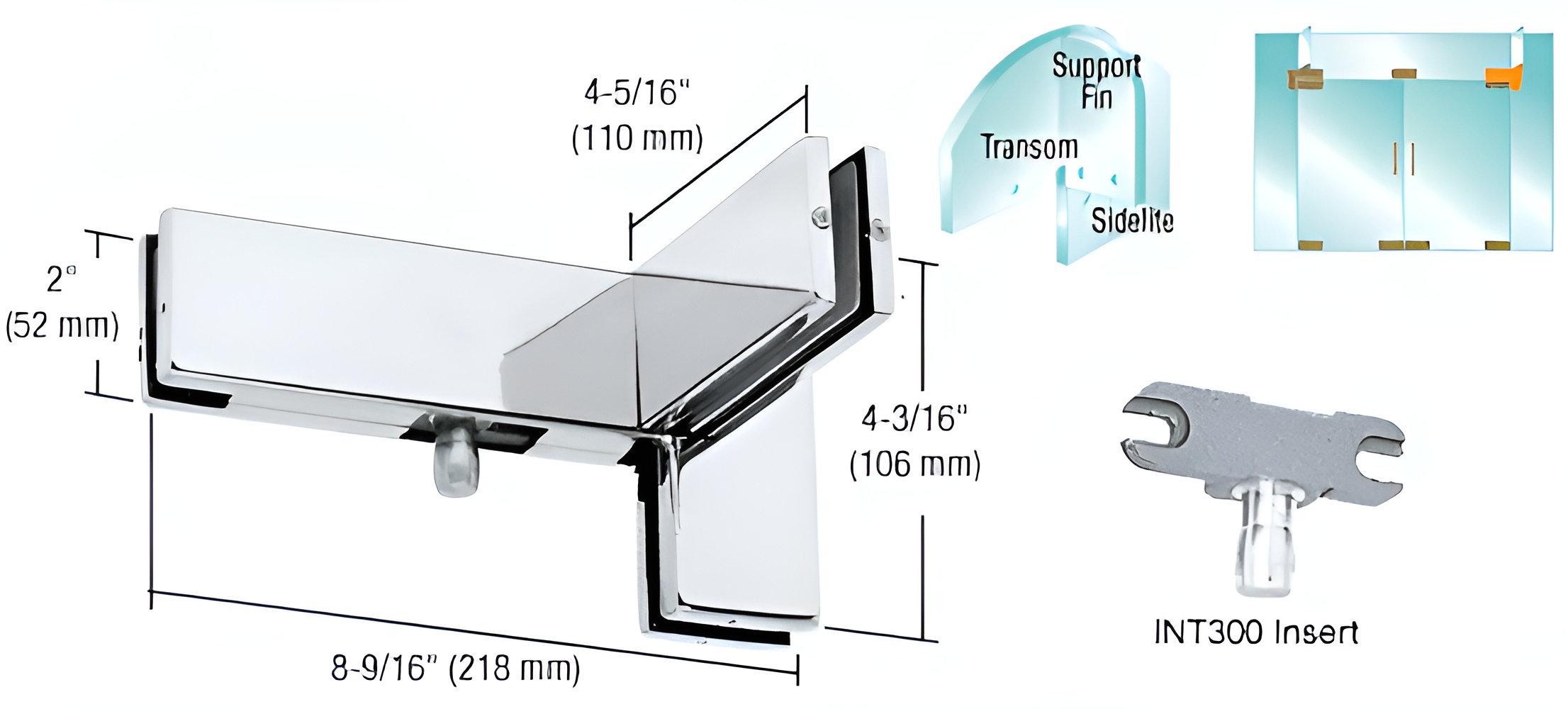

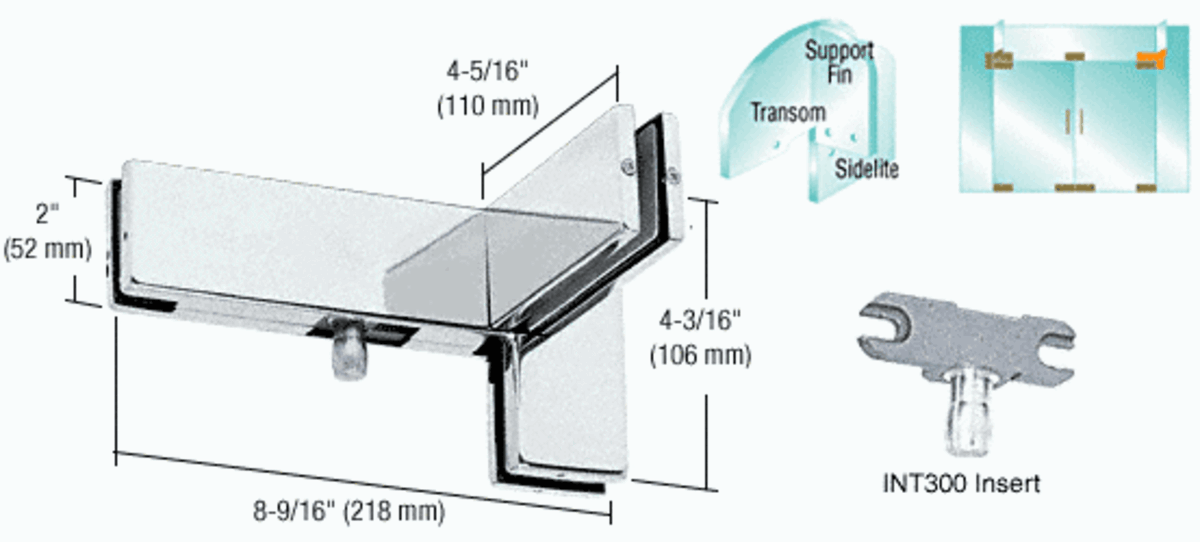

Polished Stainless Left Hand Sidelite Transom Patch with Support Fin Bracket and 1NT300 Insert
- Works with Both 2-3/4" and 2-9/16" (70 and 65 mm) Pivot Setback Door Patch Fittings
- For 3/8" or 1/2" (10 or 12 mm) Glass
- Left and Right Handed
- Use Monolithic Tempered Glass
The
CRL Left Hand Sidelite Mounted Transom Patch with Support Fin Bracket is used to support a transom from a sidelite glass panel. It comes with a
INT300 Insert for mounting a door with a CRL
PH20A or
PH21A Top Door Patch Fitting. For single doors, the insert can be removed on the non-hinged side allowing for a double swinging door. A
INT306 Transom Patch Door Stop Insert can be used to create a one way door. Also, a
INT305 Transom Patch Keeper Insert can be installed for use with an
AMR205 Lock when used for a top of the door installation. The support fin glass should be sized in accordance with approved design criteria (refer to GANA or Manufacturers Manual) and secured to the ceiling with a
Ceiling Mounted Support Fin Bracket.
If the weight of the transom exceeds 100 lbs. (45.4 kg) the transom must be supported from the ceiling. This is to prevent the Patches from slipping from too much weight. Use either Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings. Please contact our Technical Sales Department for assistance.
GLASS FABRICATION REQUIRED:
Five 3/4" (19 mm) Diameter
Holes and Two Corner Notches
COMES WITH:
Template and Instructions
Product Warning:
These fittings are not for use with Laminated Glass.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Polished Stainless Steel
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)
Handing: Left Hand
Insert Type: 1NT300
Mounting Type: Sidelite
Shipping Limitations: None
With Insert: Yes
