CRL PH41RMBL Matte Black Right Hand Sidelite Transom Patch with Support Fin and InsertC.R. Laurence PH41RMBL Matte Black Right Hand Sidelite Transom Patch with Support Fin Bracket and 1NT300 Insert is expertly designed to provide robust support for transoms mounted alongside glass panels. This versatile patch fitting accommodates both 2-3/4" (70 mm) and 2-9/16" (65 mm) pivot setback door patch fittings, ensuring compatibility with a variety of door configurations. Engineered for use with either 3/8" or 1/2" (10 or 12 mm) glass, it can be utilized as a left or right-handed option depending on your installation needs. The included 1NT300 insert allows for seamless mounting of doors with C.R. Laurence PH20A or PH21A top door patch fittings. For added versatility, the insert can be removed for double-swinging door applications. When supporting heavier transoms exceeding 100 lbs. (45.4 kg), it is essential to secure the transom to the ceiling using a Ceiling Mounted Support Fin Bracket. Glass fabrication requires five 3/4" (19 mm) diameter holes and two corner notches, and the product is accompanied by a template and instructions for ease of installation. Please note that this fitting is not suitable for use with laminated glass, ensuring safety and reliability in your design. The elegant matte black finish adds a modern touch to any architectural project.

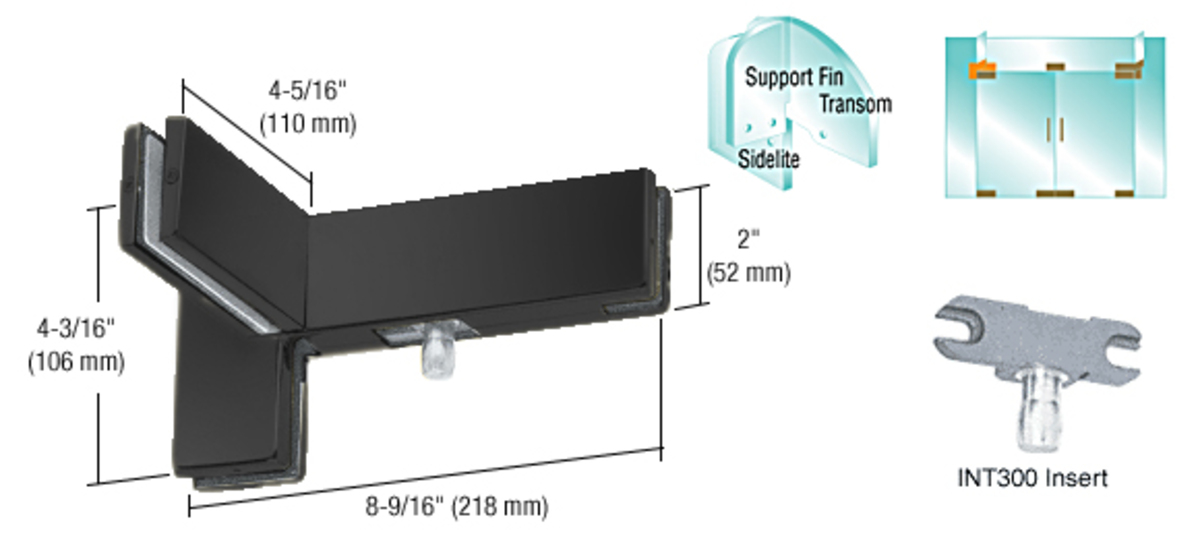

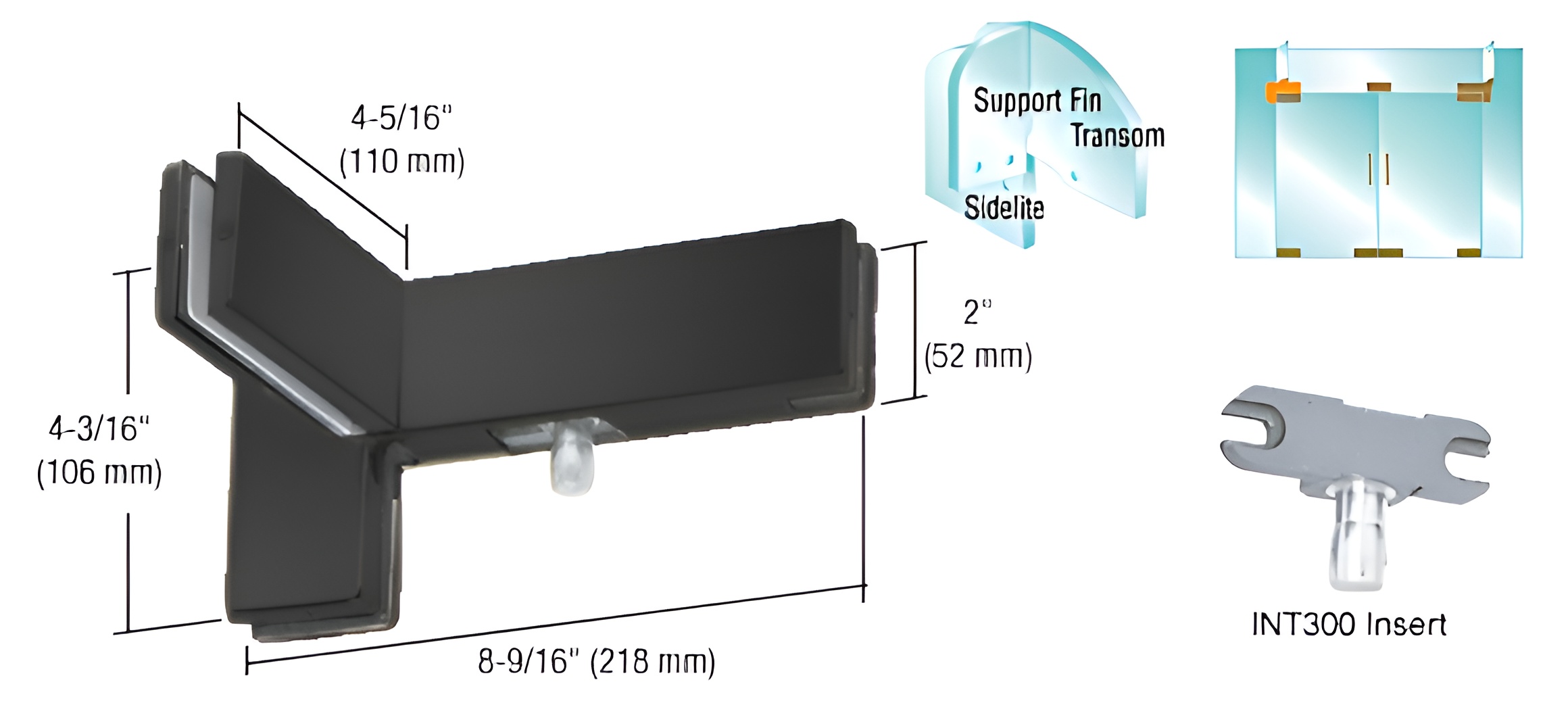

Matte Black Right Hand Sidelite Transom Patch with Support Fin Bracket and 1NT300 Insert
- Works with Both 2-3/4" (70 mm) and 2-9/16" (65 mm) Pivot Setback Door Patch Fittings
- For 3/8" or 1/2" (10 or 12 mm) Glass
- Left and Right Handed
The CRL Left Hand Sidelite Mounted Transom Patch with Support Fin Bracket is used to support a transom from a sidelite glass panel. It comes with a INT300 Insert for mounting a door with a CRL PH20A or PH21A Top Door Patch Fitting. For single doors, the insert can be removed on the non-hinged side allowing for a double swinging door. A INT306 Transom Patch Door Stop Insert can be used to create a one way door. Also, a INT305 Transom Patch Keeper Insert can be installed for use with an AMR205 Lock when used for a top of the door installation. The support fin glass should be sized in accordance with approved design criteria (refer to GANA or Manufacturers Manual) and secured to the ceiling with a Ceiling Mounted Support Fin Bracket.
" target="_blank">https://www.crlaurence.com/p/1NT300">INT300 Insert for mounting a door with a CRL
PH20A or
PH21A Top Door Patch Fitting. For single doors, the insert can be removed on the non-hinged side allowing for a double swinging door. A
INT306 Transom Patch Door Stop Insert can be used to create a one way door. Also, a
INT305 Transom Patch Keeper Insert can be installed for use with an
AMR205 Lock when used for a top of the door installation. The support fin glass should be sized in accordance with approved design criteria (refer to GANA or Manufacturers Manual) and secured to the ceiling with a
Ceiling Mounted Support Fin Bracket.
If the weight of the transom exceeds 100 lbs. (45.4 kg) the transom must be supported from the ceiling. This is to prevent the Patches from slipping from too much weight. Use either Cat. No. B5BC Smoke Baffle Channel or PH94 Patch Fittings. Please contact our Technical Sales Department for assistance.
GLASS FABRICATION REQUIRED:
Five 3/4" (19 mm) Diameter
Holes and Two Corner Notches
COMES WITH:
Template and Instructions
Product Warning:
These fittings are not for use with Laminated Glass.
