CRL PH51BS Brushed Stainless Double Transom Patch with Fin Two 1NT300C.R. Laurence PH51BS Brushed Stainless Double Transom Patch With Fin and Two 1NT300 combines innovative design and robust functionality in one remarkable product. This double transom patch is expertly engineered to accommodate both 2-3/4" (70 mm) and 2-9/16" (65 mm) pivot setback door patch fittings, making it a versatile choice for various installations. Crafted from high-density cast body material, it provides exceptional durability and support. Ideal for 3/8" or 1/2" (10 or 12 mm) glass, this patch is designed for use with side-by-side double doors featuring either a single lite or double lite split transom. Included with the product are two INT300 inserts for seamless mounting with CRL’s PH20A or PH21A top door patch fittings. Additional options, such as the INT306 Transom Patch Door Stop Insert and INT305L Transom Patch Keeper Insert, enhance its adaptability for specific applications. For installation, glass fabrication is required, with distinct specifications for split and single transom configurations. A template and instructions are provided for ease of use. It’s important to note that these fittings are not suitable for laminated glass. The brushed stainless finish adds a sleek aesthetic while ensuring longevity with periodic maintenance.

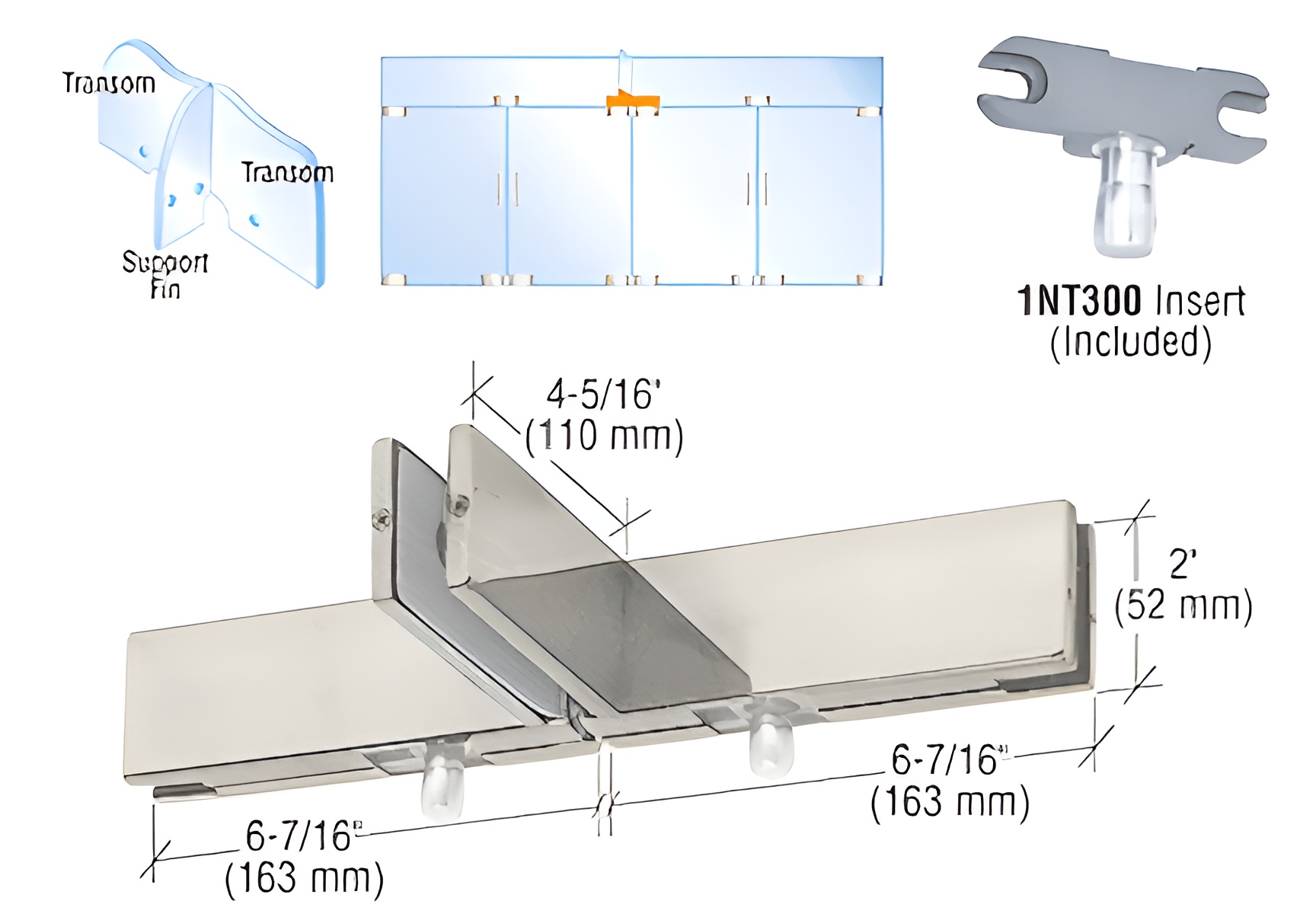

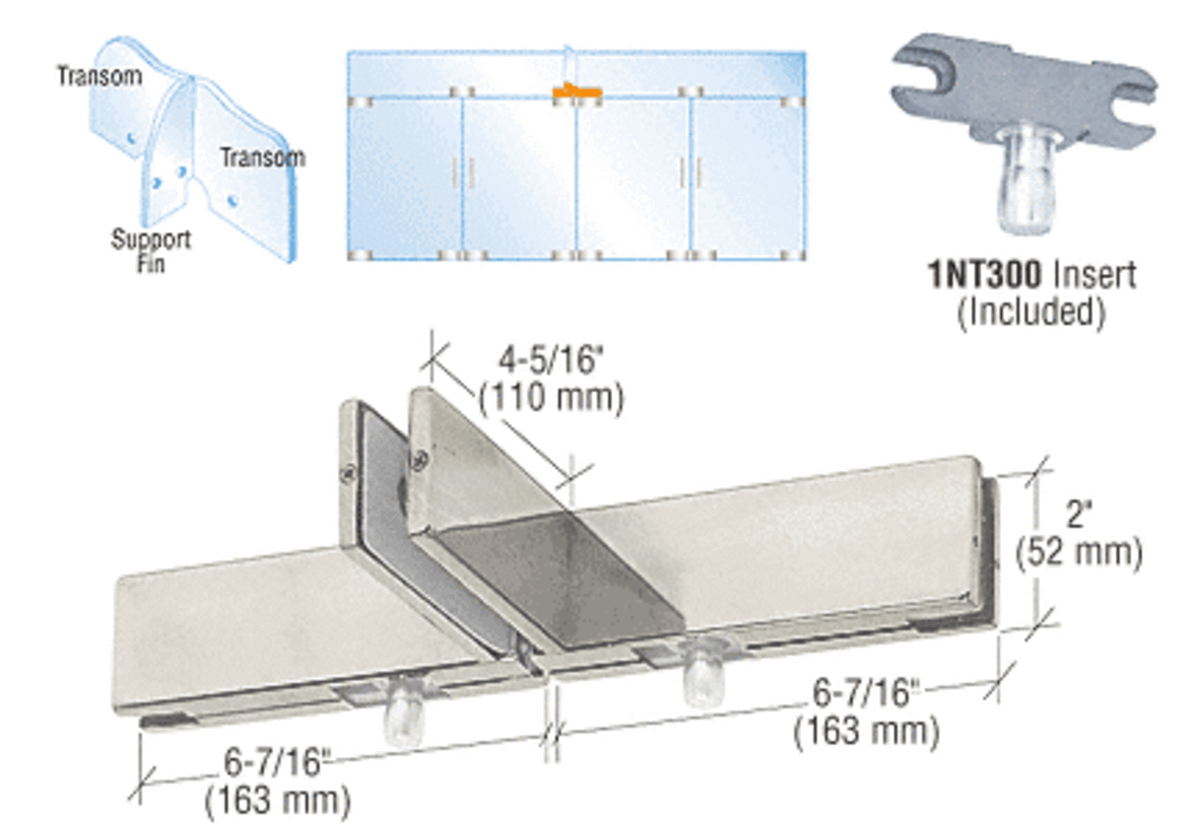

Brushed Stainless Double Transom Patch With Fin and Two 1NT300
- Works with Both 2-3/4" (70 mm) and 2-9/16" (65 mm) Pivot Setback Door Patch Fittings
- High Density Cast Body
- For 3/8" or 1/2" (10 or 12 mm) Glass
The
CRL Double Transom Patch with Support Fin Bracket is designed to provide two top pivoting points for side-by-side double doors with either a single lite or double lite split transom. It comes with two INT300 Inserts for mounting doors with CRL's
PH20A or
PH21A Top Door Patch Fitting. A
INT306 Transom Patch Door Stop Insert can be used to create a one way door. Also, a
INT305 Transom Patch Keeper Insert can be installed for use with an
AMR205 Lock when used for top of the door installation. The support fin glass should be sized in accordance with approved design criteria (refer to GANA or Manufacturer's Manual), and secured to the ceiling with a
Ceiling Mounted Support Fin Bracket.
GLASS FABRICATION REQUIRED:
For Split Transom (Two Lites of Glass):
Four 3/4" (19 mm) Diameter Holes and Three Corner Notches; For Single Transom (One Lite of Glass):
Four 3/4" (19 mm) Diameter Holes,
One Corner Notch and
One U-Shaped Cut-Out
COMES WITH:
Template and Instructions
Product Warning:
NOTE: These fittings are not for use with laminated glass.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Brushed Stainless Steel
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)
Insert Type: 1NT300
Shipping Limitations: None
With Insert: Yes
