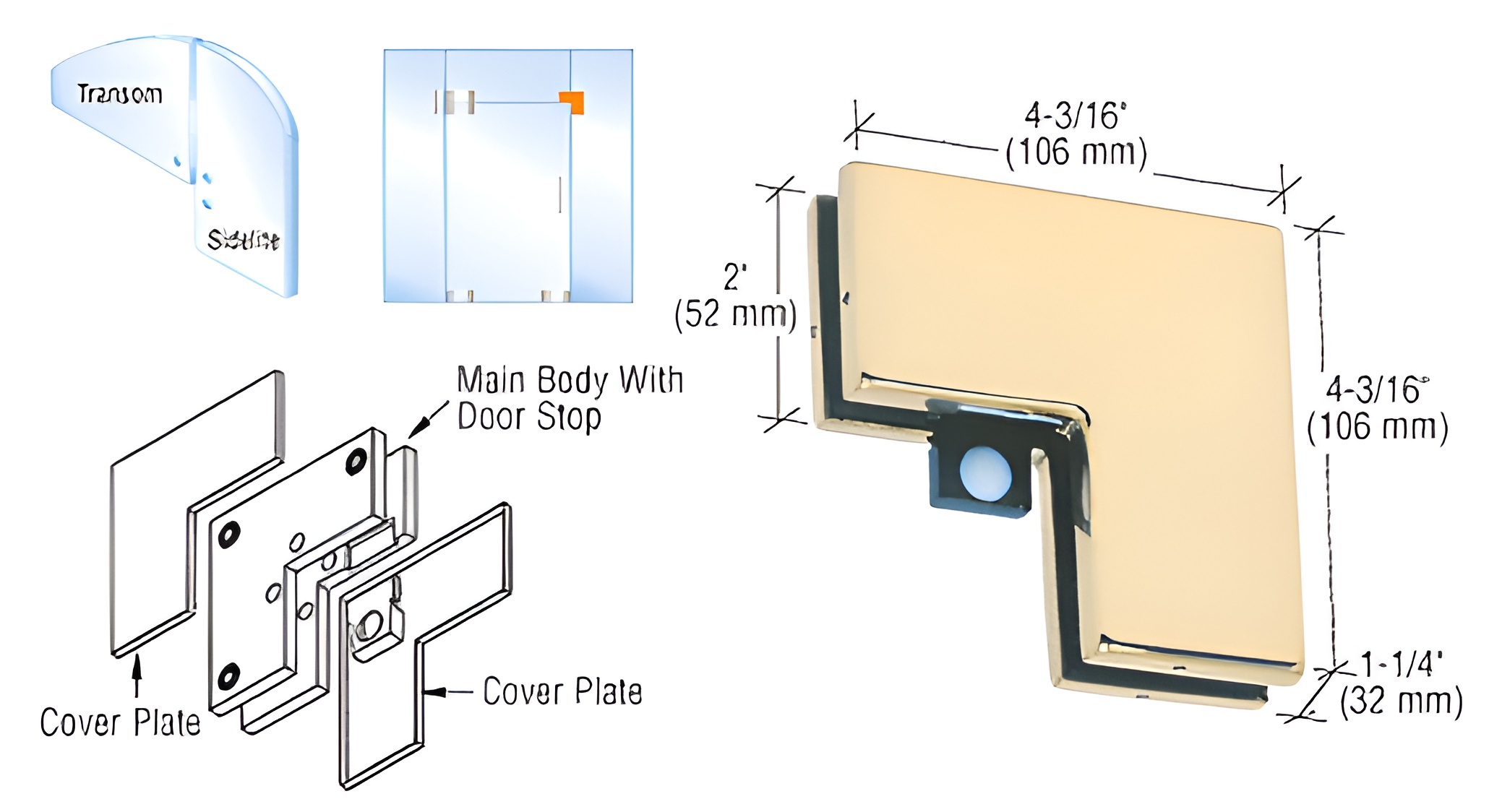

CRL PH60BR Brass Sidelite Transom Patch with Reversible Door Stop

C.R. Laurence PH60BR Brass Sidelite Mounted Transom Patch With Reversible Door Stop is an essential component for connecting sidelites and transoms, primarily used on the strike or swinging side of the door. This versatile patch accommodates both 3/8" and 1/2" (10 or 12 mm) monolithic tempered glass, ensuring a robust and reliable installation. One of the standout features of the PH60BR is its reversible door stop. By simply rotating this component, you can configure the door to swing either in or out, providing flexibility for your architectural design. Additionally, by removing the door stop altogether, the door can act as a double-acting entry, enhancing accessibility and convenience. The installation process is straightforward, as the product comes with a template and instructions. However, glass fabrication is required, specifically three 3/4" (19 mm) diameter holes for a proper fit. It’s crucial to note that these fittings are not compatible with laminated glass. With a polished brass finish, this transom patch not only offers functionality but also adds an elegant touch to your glass applications. Keep in mind that brass may oxidize over time, resulting in a tarnished appearance. For building professionals and discerning homeowners, the C.R. Laurence PH60BR is a reliable choice for enhancing glass structures.

Brass Sidelite Mounted Transom Patch With Reversible Door Stop

• For 3/8" or 1/2" (10 or 12 mm) Glass
• Doors Can Swing Either In or Out
• Use Monolithic Tempered Glass

Brass Finish Advisory:

Resources

• Brass Finish Disclaimer
• Template gc-ph60.dwg
