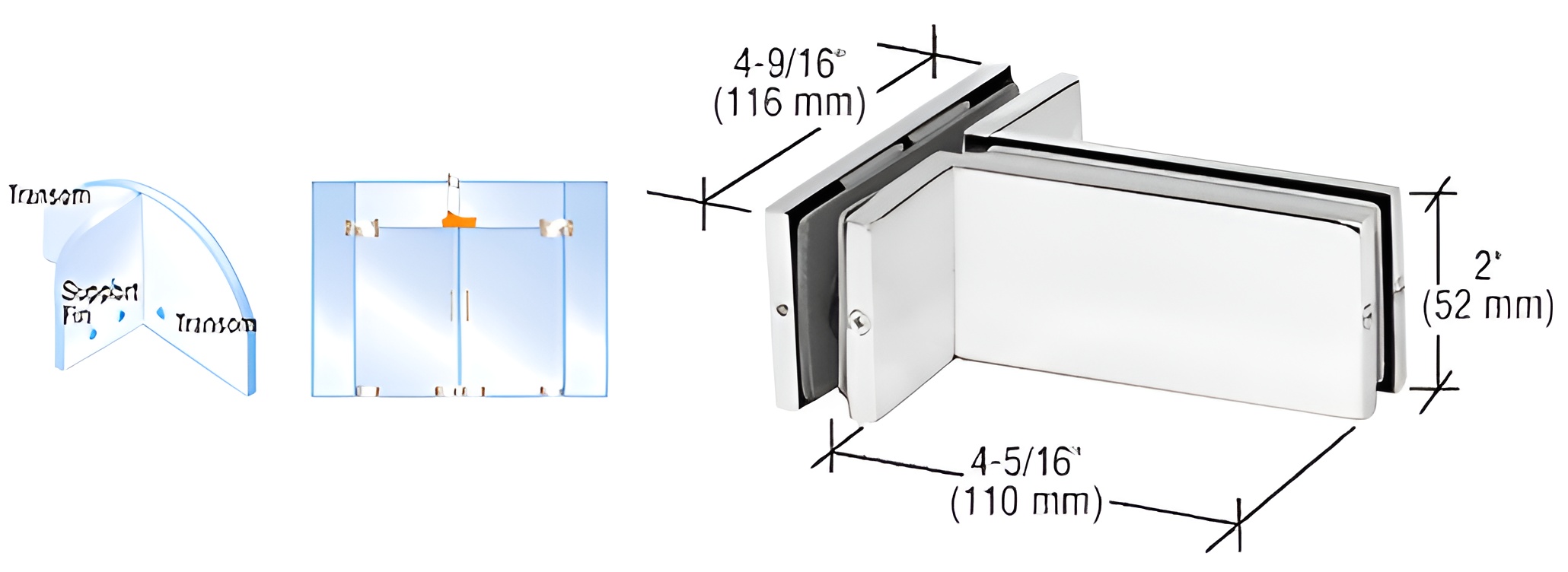

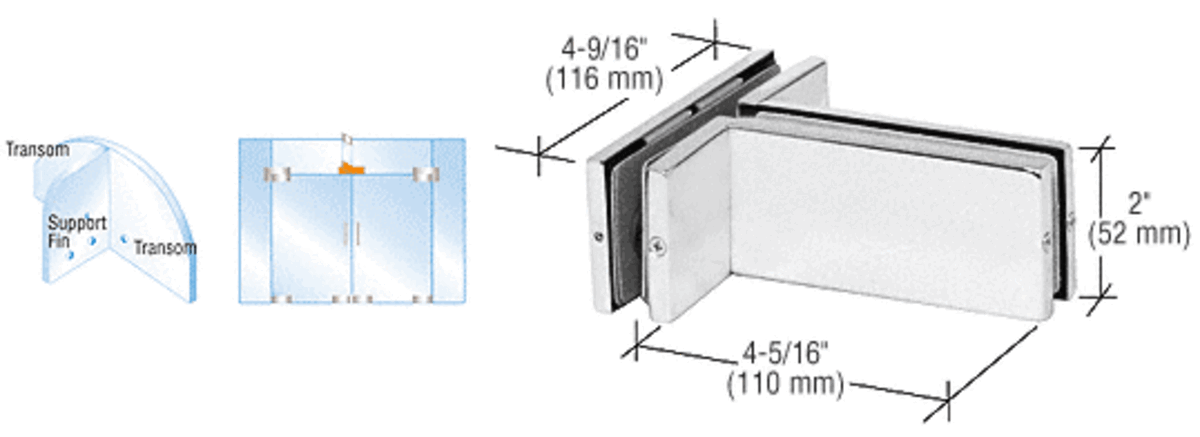

C.R. Laurence PH71A Satin Anodized Transom Mounted Patch Connector With Support Fin Bracket offers a robust solution for one or two lite transoms that require additional lateral support. Tailored for use with 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass, this connector is engineered to enhance structural integrity while delivering an aesthetically pleasing finish. The included support fin bracket must be secured to the ceiling, with the support fin glass sized according to approved design criteria, ensuring compliance and durability. Fabrication is straightforward, requiring four 3/4" (19 mm) diameter holes for installation. Additionally, the product comes complete with a template and instructions, simplifying the setup process. Notably, these fittings are not compatible with laminated glass, making it essential to verify the glass type before installation. The satin anodized finish adds an elegant touch, seamlessly integrating into a variety of architectural styles. With no shipping limitations and the convenience of UPS delivery, the CRL PH71A model is ready to meet your glazing needs while maintaining safety and performance standards. Choose this connector for reliable support and a sleek appearance that professionals and discerning homeowners alike will appreciate.
Satin Anodized Transom Mounted Patch Connector With Support Fin Bracket
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Satin Anodized
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)
Shipping Limitations: None
