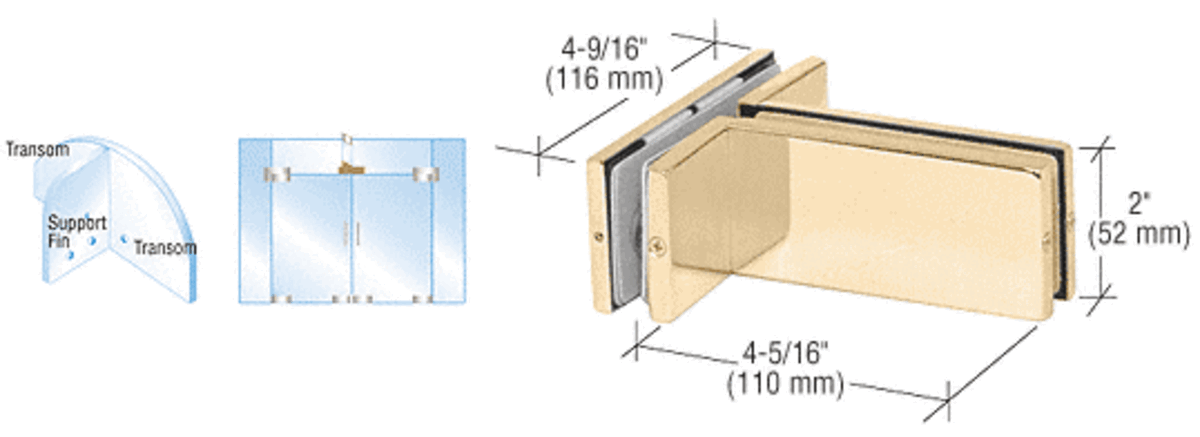

C.R. Laurence PH71BR Brass Transom Mounted Patch Connector with Support Fin Bracket is designed for use with 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass. This connector is ideal for one or two lite transoms that require added lateral support, ensuring the structural integrity of your glazing system. To achieve optimal performance, the support fin glass must adhere to approved design criteria, as outlined by GANA or the manufacturer's manual, and be securely attached to the ceiling using a compatible Ceiling Mounted Support Fin Bracket. For installation, the glass will require four 3/4" (19 mm) diameter holes, and the product comes complete with a template and instructions to streamline the process. It's important to note that these fittings are not suitable for laminated glass, ensuring that you choose the right materials for your project. The polished brass finish not only adds an elegant touch but also requires some maintenance, as brass can be prone to oxidation and tarnishing over time. C.R. Laurence provides essential information about the brass finish to help you maintain its appearance. This product ships via UPS and has no shipping limitations, making it a convenient choice for your architectural needs.
Brass Transom Mounted Patch Connector with Support Fin Bracket
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Polished Brass
Glazing Thickness: 3/8 in. (10 mm)
Shipping Limitations: None
