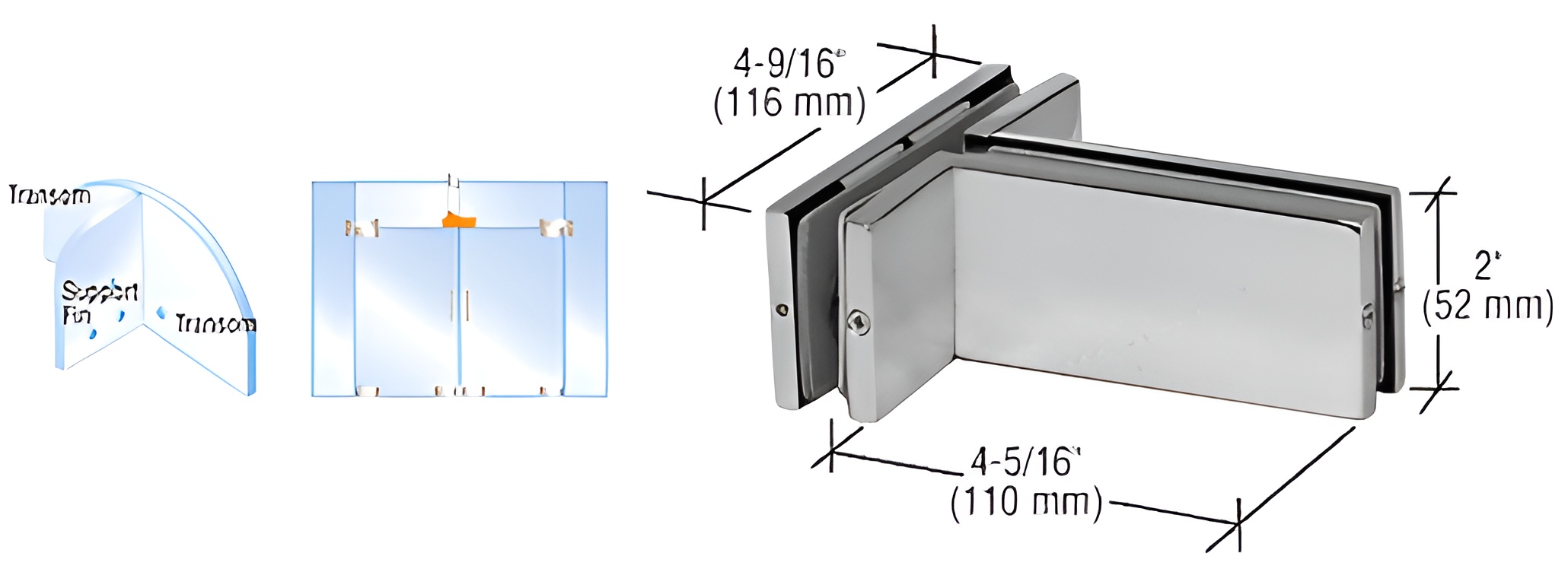

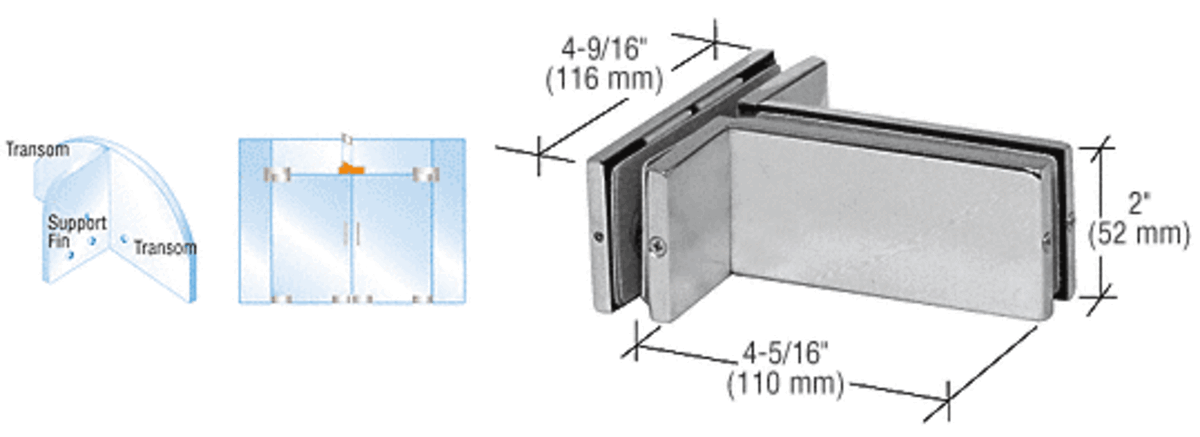

CRL PH71BS Brushed Stainless Transom Patch Connector with Support Fin Bracket

C.R. Laurence PH71BS Brushed Stainless Transom Mounted Patch Connector with Support Fin Bracket provides robust support for one or two lite transoms, ensuring structural integrity and stability. Designed for use with 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass, this connector is ideal for projects that demand additional lateral support. The support fin bracket, which should be secured to the ceiling using a compatible Ceiling Mounted Support Fin Bracket, is sized to meet approved design criteria, in accordance with GANA or the Manufacturer's Manual. Proper glass fabrication is crucial, requiring the installation of four 3/4" (19 mm) diameter holes for effective performance. Included with your PH71BS connector is a template and detailed instructions, making installation straightforward for both professionals and knowledgeable homeowners. It’s important to note that this fitting is not intended for use with laminated glass, ensuring your project adheres to safety standards. Finished in a brushed stainless steel, the connector combines durability with a modern aesthetic, suitable for a variety of applications. While stainless steel is resistant to corrosion, periodic maintenance is recommended to preserve its factory finish. Trust C.R. Laurence for your architectural needs to achieve a flawless and enduring design.

Brushed Stainless Transom Mounted Patch Connector with Support Fin Bracket

• For 3/8" or 1/2" (10 or 12 mm) Glass
• Use Monolithic Tempered Glass

Stainless Steel Advisory:

Resources

• CRL Stainless Steel Disclaimer
• PH71 Template
• Template and Specs ph71.pdf
