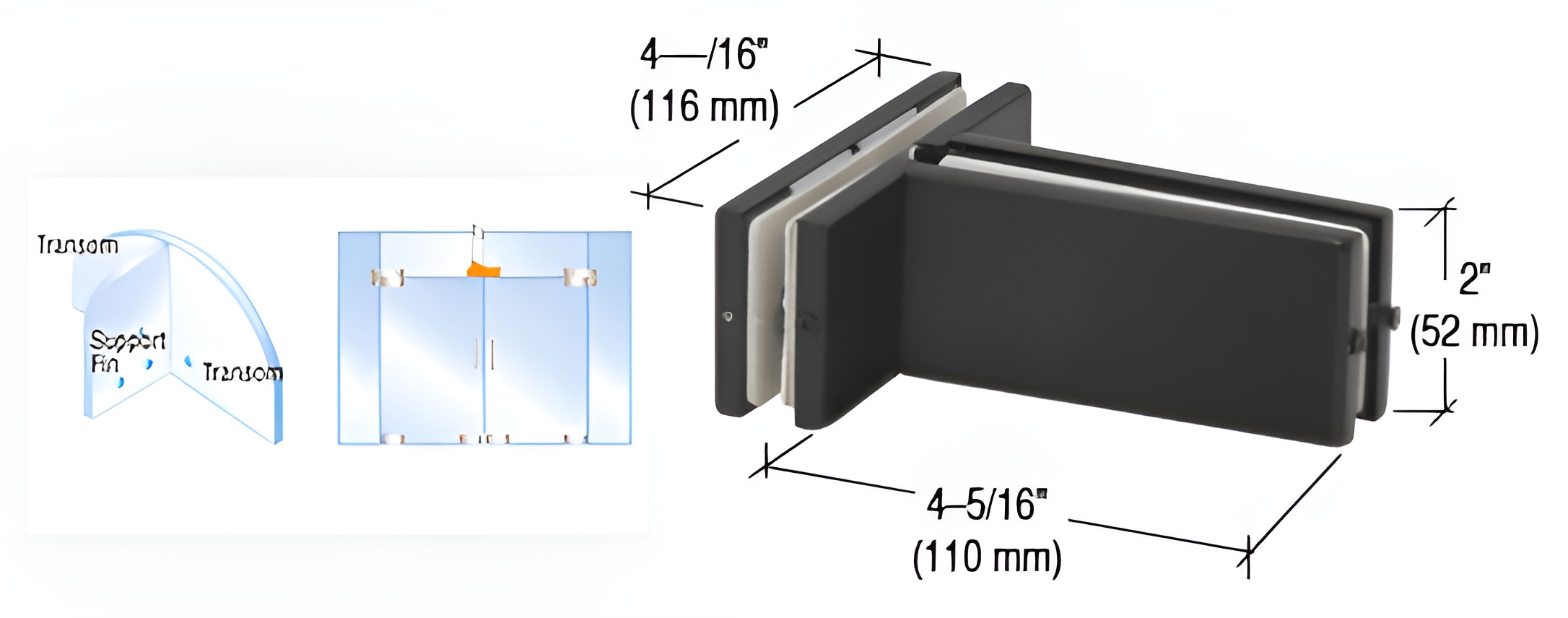

CRL PH71MBL Matte Black Transom Patch Connector with Support Fin Bracket

C.R. Laurence PH71MBL Matte Black Transom Mounted Patch Connector With Support Fin Bracket is designed to provide enhanced structural support for one or two lite transoms. Tailored for use with monolithic tempered glass, this connector accommodates glass thicknesses of 3/8" or 1/2" (10 or 12 mm), ensuring versatility for various applications. This robust patch connector features a support fin bracket that is essential for achieving the desired lateral stability, particularly in installations requiring additional reinforcement. For optimal performance, the support fin glass must be sized according to approved design criteria, adhering to guidelines from GANA or the Manufacturer's Manual. The connector is secured to the ceiling using a compatible Ceiling Mounted Support Fin Bracket, which is sold separately. Installation is straightforward, as the product comes complete with a template and instructions, enabling accurate glass fabrication with four 3/4" (19 mm) diameter holes. Notably, this fitting is not suitable for laminated glass, ensuring that users select the appropriate materials for their projects. With its sleek matte black finish, the PH71MBL not only delivers functional support but also adds a modern aesthetic to any architectural design. Ideal for building professionals and discerning homeowners, this product exemplifies C.R. Laurence's commitment to quality and innovation.

Matte Black Transom Mounted Patch Connector With Support Fin Bracket

• For 3/8" or 1/2" (10 or 12 mm) Glass
• Use Monolithic Tempered Glass

This CRL Transom Mounted Patch Connector with Support Fin Bracket is used on one or two lite transoms that require additional lateral support to achieve the desired structural strength. The support fin glass should be sized to approved design criteria (refer to GANA or Manufacturer's Manual), and secured to the ceiling with a Ceiling Mounted Support Fin Bracket.

Resources

• PH71 Template
