CRL PH81BR Brass Patch Connector with Support Fin Bracket

C.R. Laurence PH81BR Brass Patch Connector with Support Fin Bracket is expertly designed to provide essential support for two lite glass junctions, making it an ideal choice for applications that require enhanced structural strength. This connector accommodates both 3/8" and 1/2" (10 mm or 12 mm) monolithic tempered glass, ensuring compatibility with various glazing systems. Engineered for reliability, the PH81BR is paired with a support fin bracket that must be secured to the ceiling using the PH94 Ceiling Mounted Support Fin Bracket. Proper glass fabrication is crucial, requiring the installation of six 3/4" (19 mm) diameter holes and a corner notch. Each unit comes complete with a template and clear instructions, simplifying the installation process for building professionals and knowledgeable homeowners alike. It is important to note that these fittings are not suitable for laminated glass, ensuring safety and compliance with industry standards. The polished brass finish adds an elegant touch, although users should be aware of its susceptibility to oxidation and potential tarnishing over time. For further information on handling and maintenance, please refer to the Brass Finish Disclaimer in the Technical References section. The C.R. Laurence PH81BR is a vital component for achieving stunning glass installations with the strength they require.

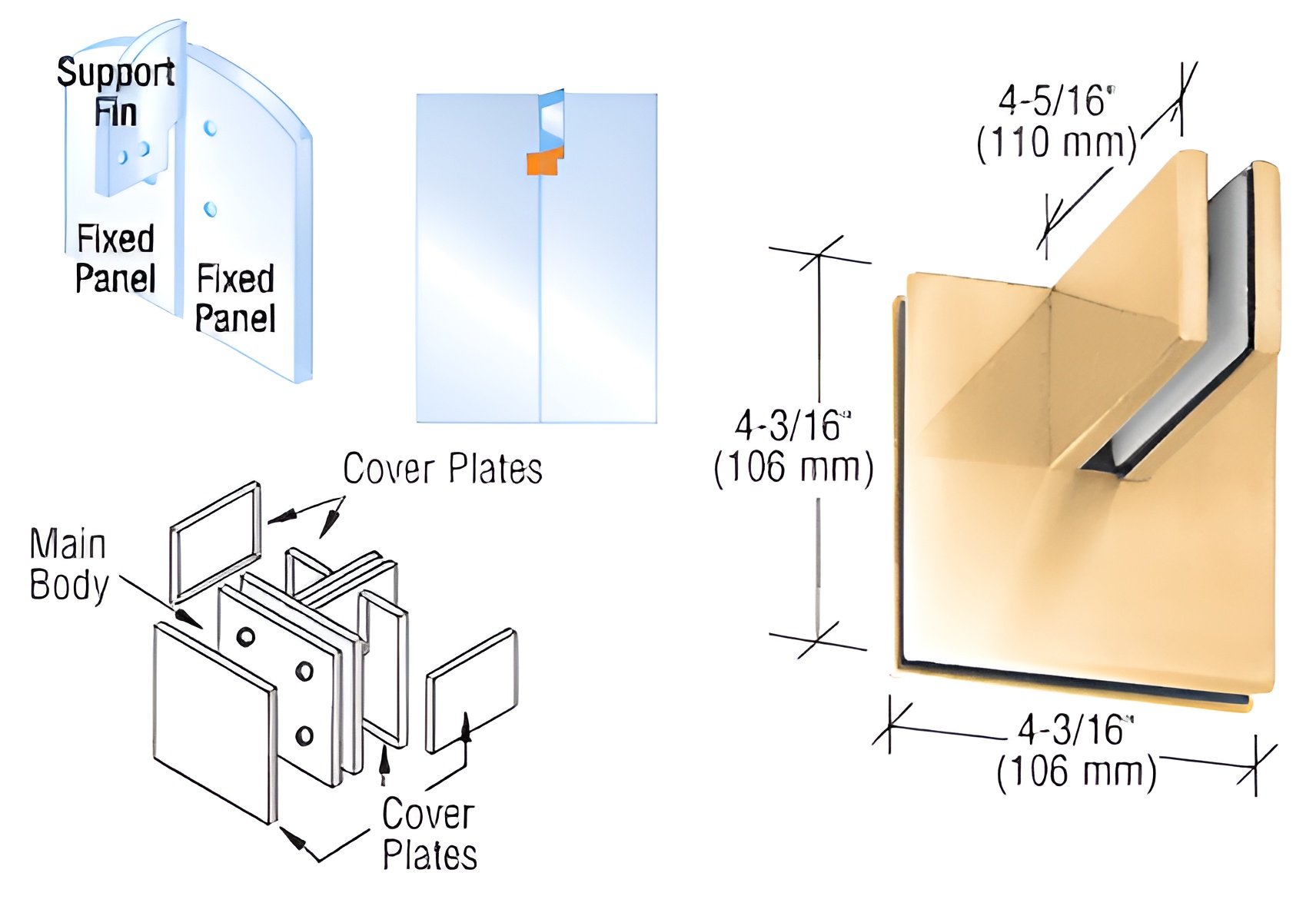

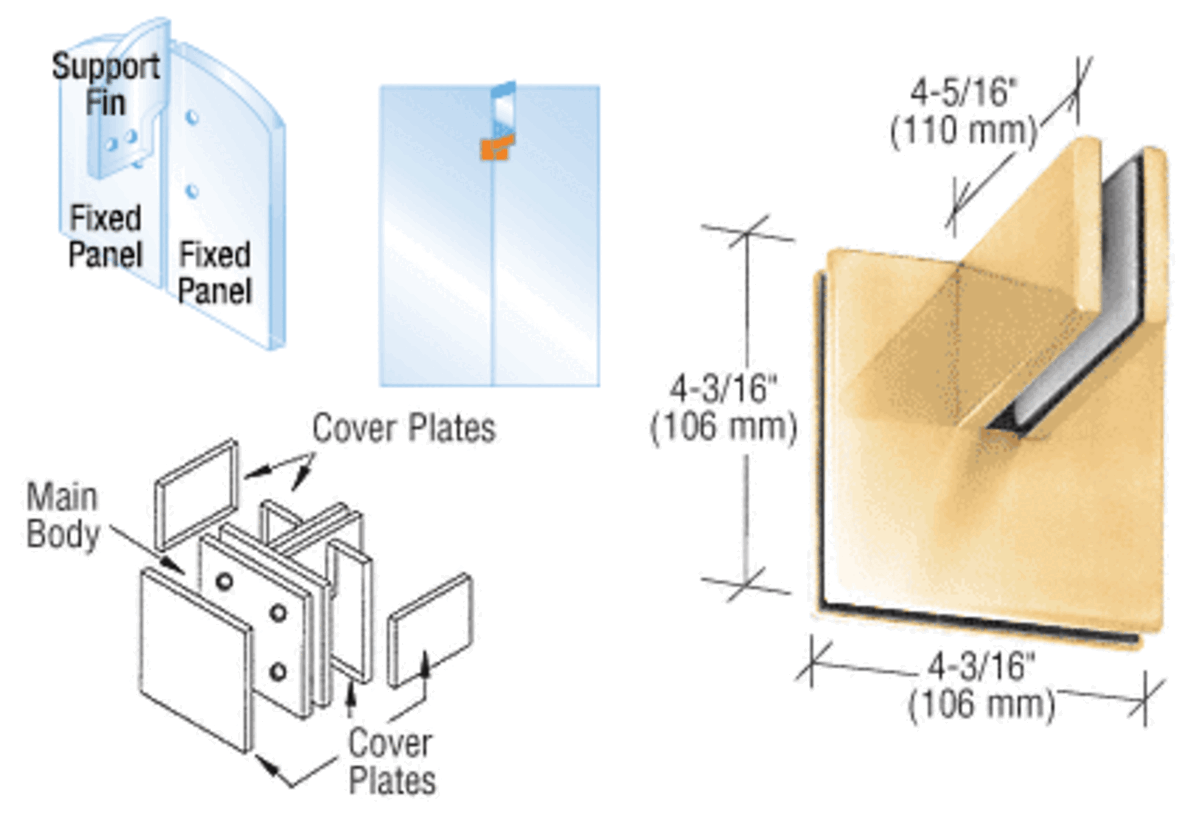

Brass Patch Connector with Support Fin Bracket

• For 3/8" or 1/2" (10 or 12 mm) Glass
• Use Monolithic Tempered Glass

Brass Finish Advisory:

Resources

• Brass Finish Disclaimer
• PH81 Template
• Template GC-PH81-Model.pdf
