CRL PHA1LDU Black Bronze Anodized Patch Door Kit with Lock - North America

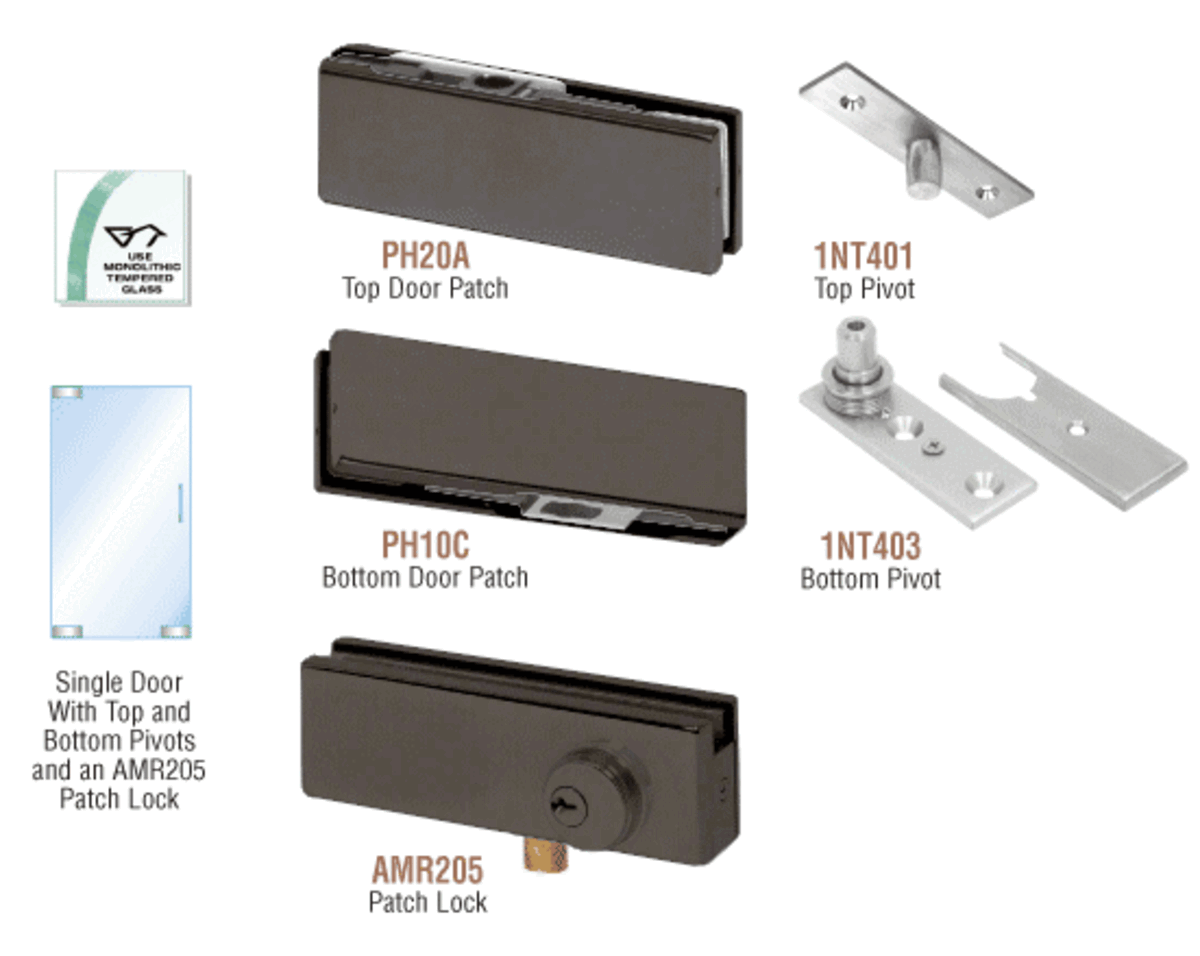

C.R. Laurence PHA1LDU Black Bronze Anodized North American Patch Door Kit - With Lock offers a sophisticated solution for creating a single free-swinging door, designed specifically for monolithic tempered glass in thicknesses of 3/8" or 1/2" (10 or 12 mm). This kit is ideal for building professionals and knowledgeable homeowners seeking a reliable and stylish door hardware option. The kit includes all essential components: a PH20A top door patch, a PH10C bottom door patch, and both top and bottom pivots (1NT401 and 1NT403). Gaskets are provided to ensure a snug fit for the tempered glass, though it's important to note that the glass must feature the necessary holes and notches. For those needing added security, the kit is available with a lock, which includes a Cat. No. AMR205 patch lock, while additional cylinders, thumbturns, and keepers can be ordered separately. With a pivot setback of 2-3/4" (70 mm) and compliance with GANA guidelines for maximum door sizes, this kit ensures stability and durability. The elegant black bronze anodized finish not only enhances aesthetic appeal but also provides long-lasting quality. Enhance your door system with the C.R. Laurence PHA1LDU Patch Door Kit, combining functionality and style seamlessly.

Black Bronze Anodized North American Patch Door Kit - With Lock

• For 3/8" or 1/2" (10 or 12 mm) Glass
• Available With or Without Locks
• Use Monolithic Tempered Glass

Resources

• PH20 PH10 Template.pdf
