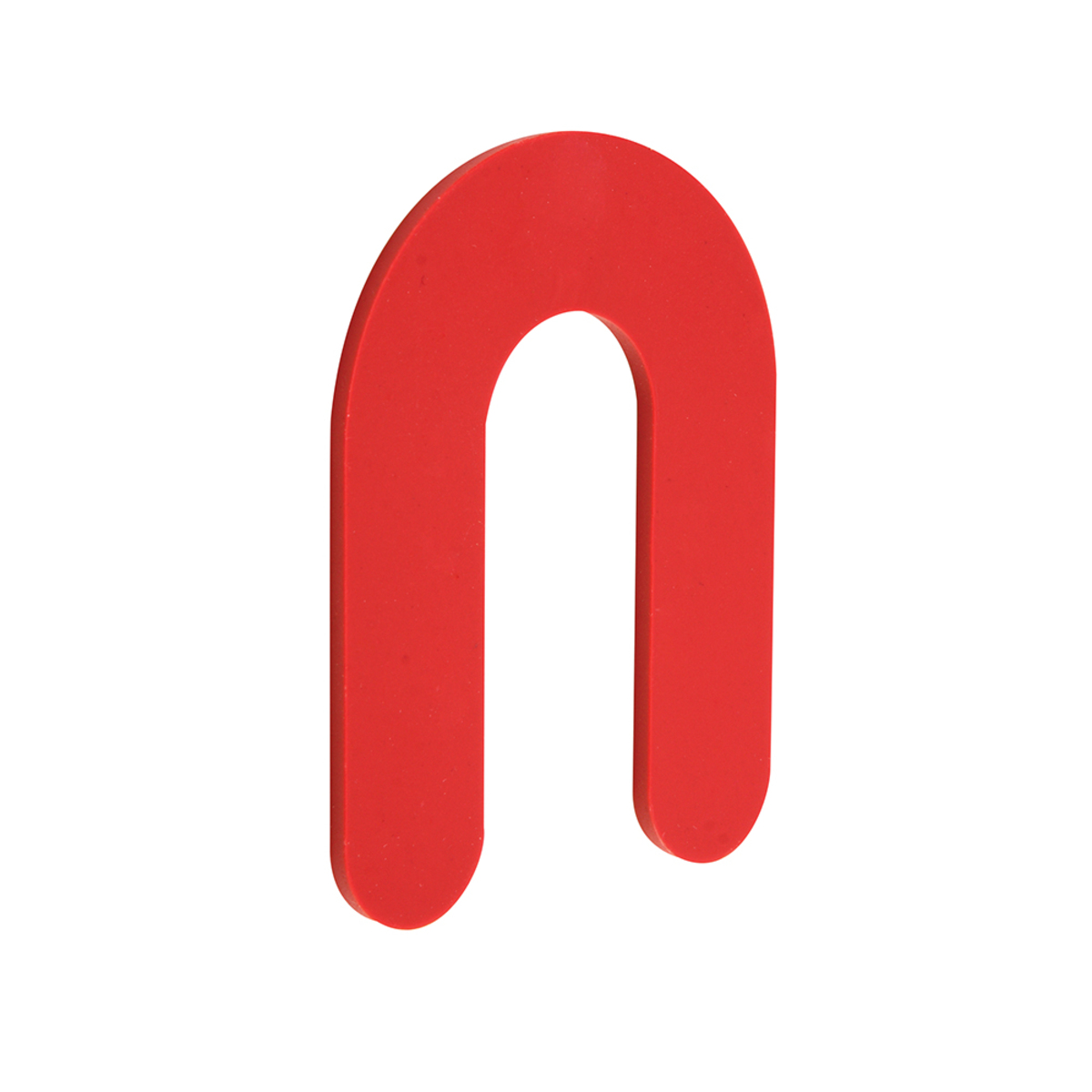

CRL PHS28 Red 1/8" x 3" Plastic Horseshoe Shims

CRL PHS28 Red 1/8" x 3" Plastic Horseshoe Shims

C.R. Laurence PHS28 Red 1/8" x 3" Plastic Horseshoe Shims are expertly designed to tackle leveling challenges across a variety of applications. Approved by architects, these shims are ideal for the installation of windows, doors, curtain walls, storefronts, and insulating glass units, making them a versatile choice for building professionals. Their adaptability extends to industries such as appliances, automotive, aviation, and mobile homes, effectively reducing labor and material costs. Crafted from high-impact styrene plastic, the PHS28 shims are engineered for both vertical and horizontal use. They come in three thicknesses-1/16", 1/8", and 1/4"-and lengths of 2", 3", and 3-1/2", ensuring you have the right fit for any project. The 3-1/2" length is particularly popular for storefront installations, accommodating standard aluminum tubing. Conveniently packaged in 100-count sleeves, these shims are easy to transport to job sites or store securely in the shop. The innovative tub packaging allows for quick dispensing and inventory management, making them an essential tool for your building requirements. With their economical pricing and effective performance, C.R. Laurence PHS28 shims are a must-have for any contractor's toolkit.

Red 1/8" x 3" Plastic Horseshoe Shims

• Color Coded for Convenience
• Simplifies All Leveling Requirements
• Packed in Convenient Sleeves and Tubs
• Economical
• Three Standard Lengths

CRL Plastic Horseshoe Shims are made to simplify leveling problems wherever they occur, and have been approved by architects for use in the installation of windows, doors, curtainwalls, storefronts, and insulating glass units. They are adaptable for use in the appliance, automotive, aviation, and mobile home industries as well. They help cut labor and material costs wherever used.

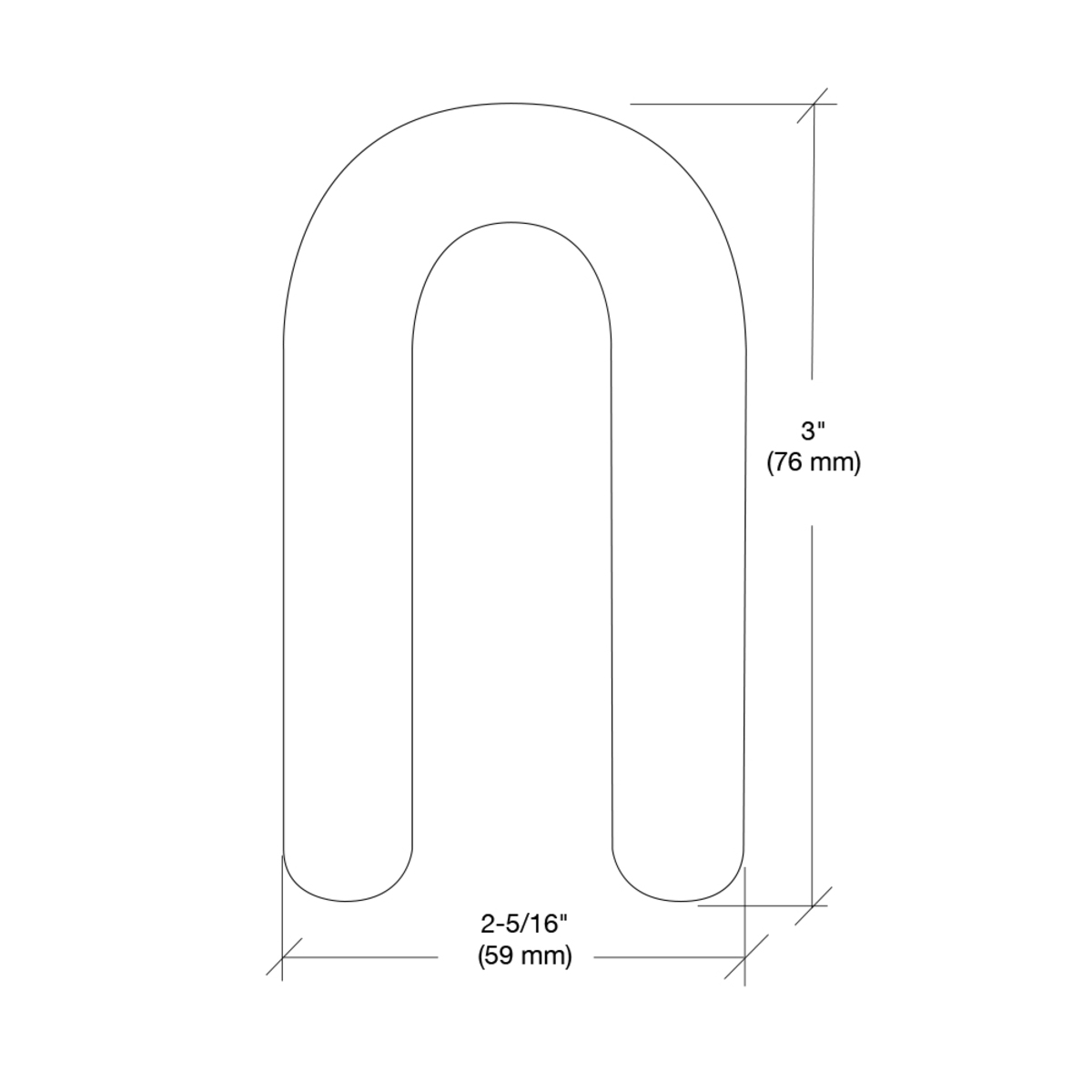

CRL Horseshoe Shims are made of high-impact styrene plastic, properly designed and balanced for vertical or horizontal use. They are available in three thicknesses 1/16", 1/8", and 1/4" (1.6, 3.2, and 6.4 mm), and three lengths 2", 3", and 3-1/2" (51, 76, and 89 mm).

The 3-1/2" (89 mm) length is extremely popular for installing storefront aluminum since most major storefront fabricators use 4" (102 mm) tubing. You will find these valuable aids in your building requirements.

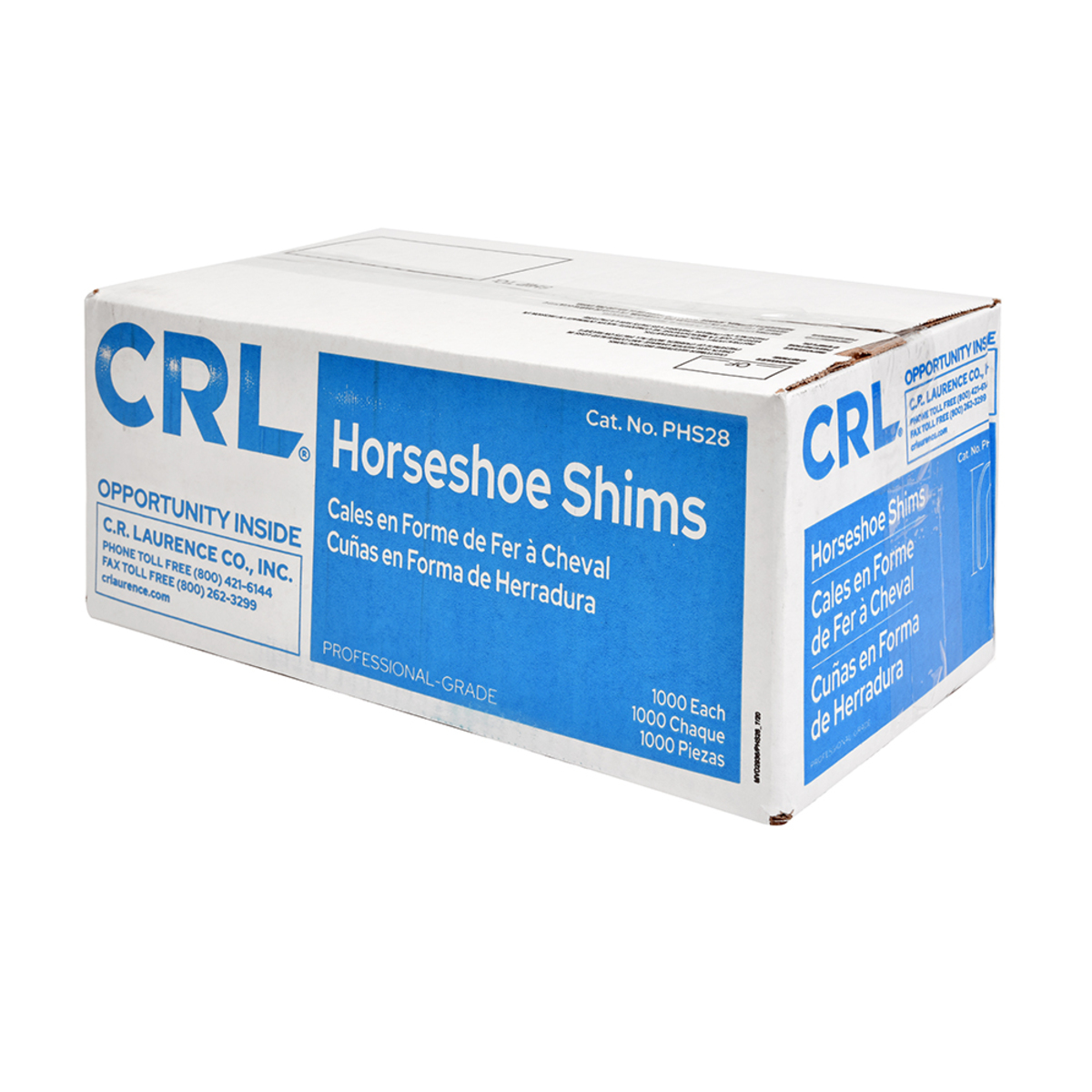

New innovative packaging makes it easier to bring shims to the job site, or store them in the shop. Convenient 100 count sleeves in each box of 1,000 allow for easy dispensing and accounting of shims to your field crew at the beginning of the day. 100 count sleeves are packed in our CRL tubs when ordered by the hundred for easy and secure storage in the shop.


Product Warning:

Click Here to view product lab testing results, and " target="_blank">https://prod.sd02.cloud.opentext.com/ImConvServlet/imconv/cd9360e8782eba209cd5488b8e7ad1d2fca5c0fe/original?hybrisId=cyd3v0u8ig-oldcastle1-p1&assetDescr=Material%20Testing%20Laboratory%20Report">Click Here to view product lab testing results, and here to view Shim Properties." target="_blank">https://prod.sd02.cloud.opentext.com/ImConvServlet/imconv/d9a6c2082bad21d8935a9383ef8a63933e142638/original?hybrisId=cyd3v0u8ig-oldcastle1-p1&assetDescr=Shims%20Property%20Chart">here to view Shim Properties.

Resources

• Fire Resistance Testing AVDV3326 Shimstack 03 18.pdf
• Material Testing Laboratory Report
• Safety Data Sheets PHS28.pdf
• Shims Property Chart
