CRL PL92252P0 U.S. Aluminum KYNAR 925 White Patio Door Pivot Hinge Pair

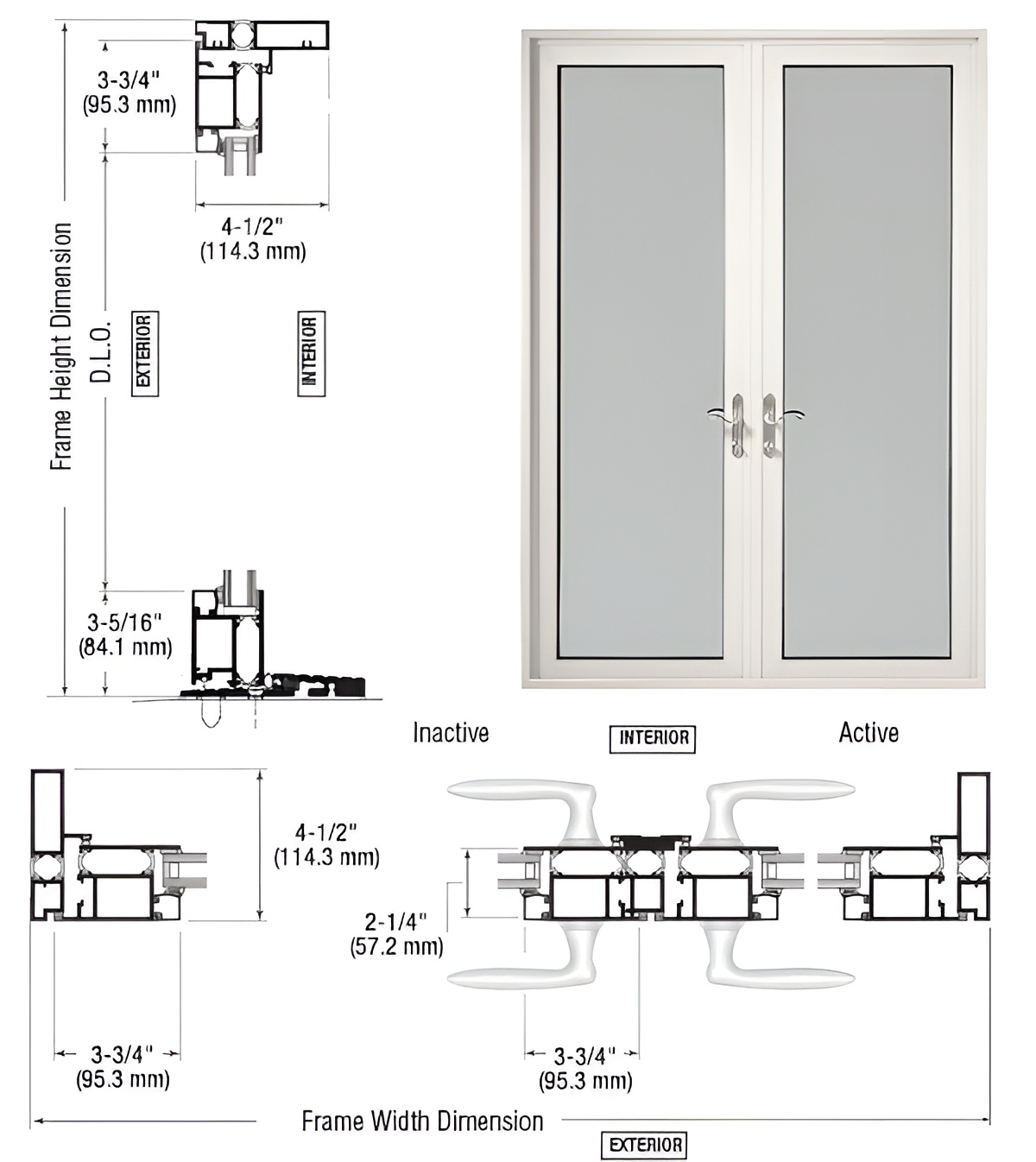

CRL PL92252P0 - U.S. Aluminum White KYNAR Paint Series 925 Patio Door Pivot Hinge Pair Swing Out offers a robust and reliable solution for your patio door needs. This hinge pair is designed with a sturdy frame measuring 1" x 4-1/2" (25 x 114.3 mm) and accommodates 1" (25 mm) insulating glass. Featuring a thermally broken door and frame, this system enhances energy efficiency while ensuring durability. Equipped with a seven-point locking device, this patio door hinge provides enhanced security, making it an ideal choice for residential and commercial applications. The standard bottom rail and low-profile threshold are tailored for swing-out applications, ensuring smooth operation and easy access. With its 2-1/4" (57.2 mm) thick door, 3.75" (95 mm) stiles, and 3" (76 mm) bottom rail, the design is both functional and aesthetically pleasing. Finished in White Kynar, the hinge pair not only stands up to the elements but also complements various architectural styles. Please note that shipping is restricted to common carriers only. This product is perfect for building professionals and homeowners seeking quality and reliability in their glazing solutions.

-U.S. Aluminum White KYNAR Paint Series 925 Patio Door Pivot Hinge Pair Swing Out

• 1" x 4-1/2" (25 x 144 mm) Framing
• Accepts 1" (25 mm) insulating Glass
• Thermally Broken Door and Frame
• Seven-Point Locking Device
• Standard Bottom Rail and Low Profile Threshold for Swing Out Applications

Resources

• Entrance Hardware Brochure
• Entrance Hardware Brochure
• Institutional Project Case Studies
• Institutional Project Case Studies
• Series 900 925 Patio Door Adjustable Pivot Hinge - Field Replacement Installation Instructions
• Series 900 Terrace Door Series 925 Patio Door and D900 Impact Resistant Terrace Door Numbering Key - Hardware Selection
• Series 900 Terrace Door and Series 925 Patio Door - Sidelite Assembly Installation Instructions
• Series 925 Outswing - Air Water Structural - 48 X 96 - G6910.01-303-47 Test Report
• Series 925 Pair Outswing - Air Water Structural - 96 X 96 - G8680.01-303-47 Test Report
• Series 925 Patio Door Numbering Key for Outswing Doors With Up Over Frame and Transom Frame
• Series 925 Patio Door Product Information
• Series 925 Patio Door for Outswing Door Quote Request Form
• Series 925 Swinging Patio Door Installation Instructions
• USAL14 The Storefront Store Catalog
• USAL14 The Storefront Store Catalog
• USAL15 Curtain Walls Catalog
• USAL15 Curtain Walls Catalog
