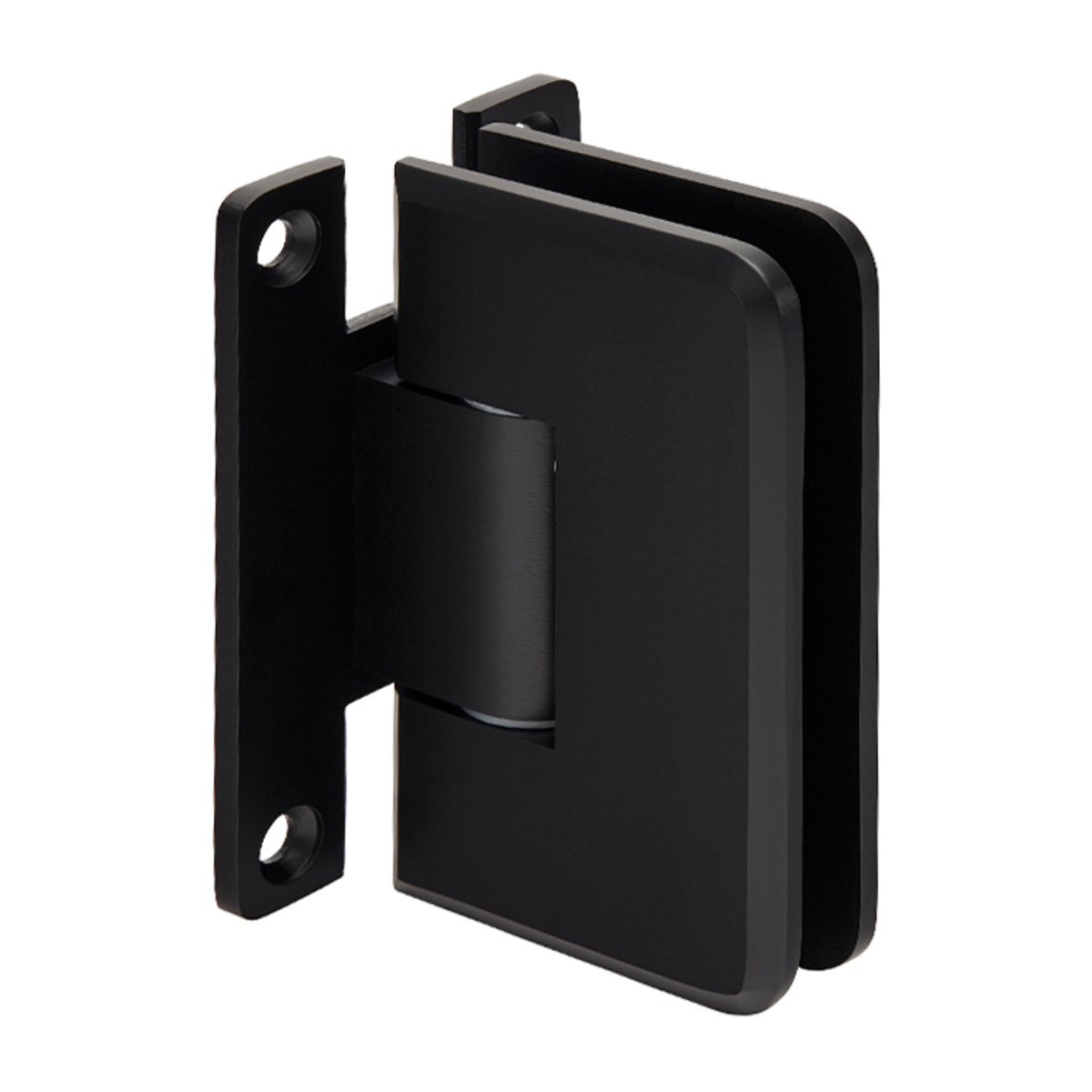

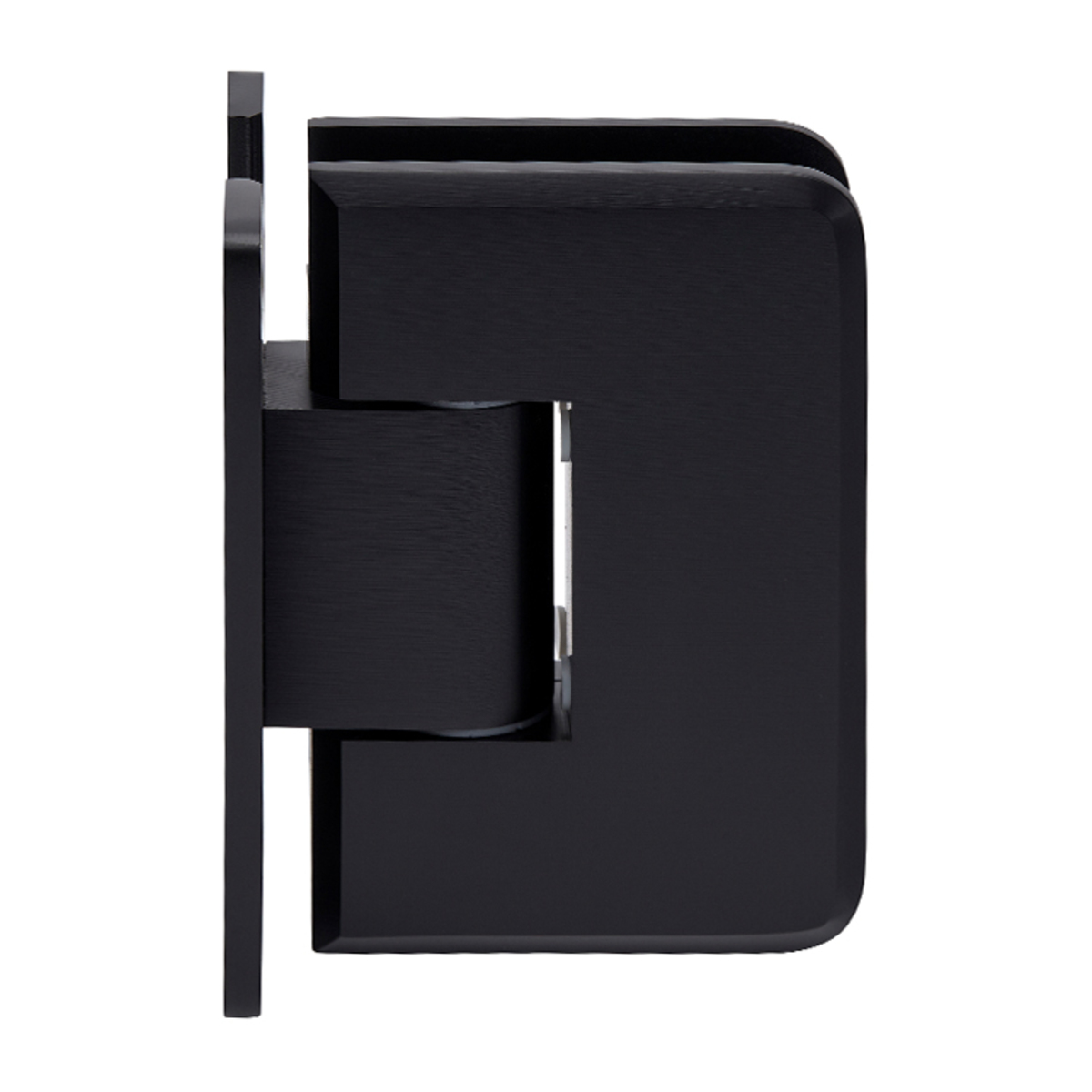

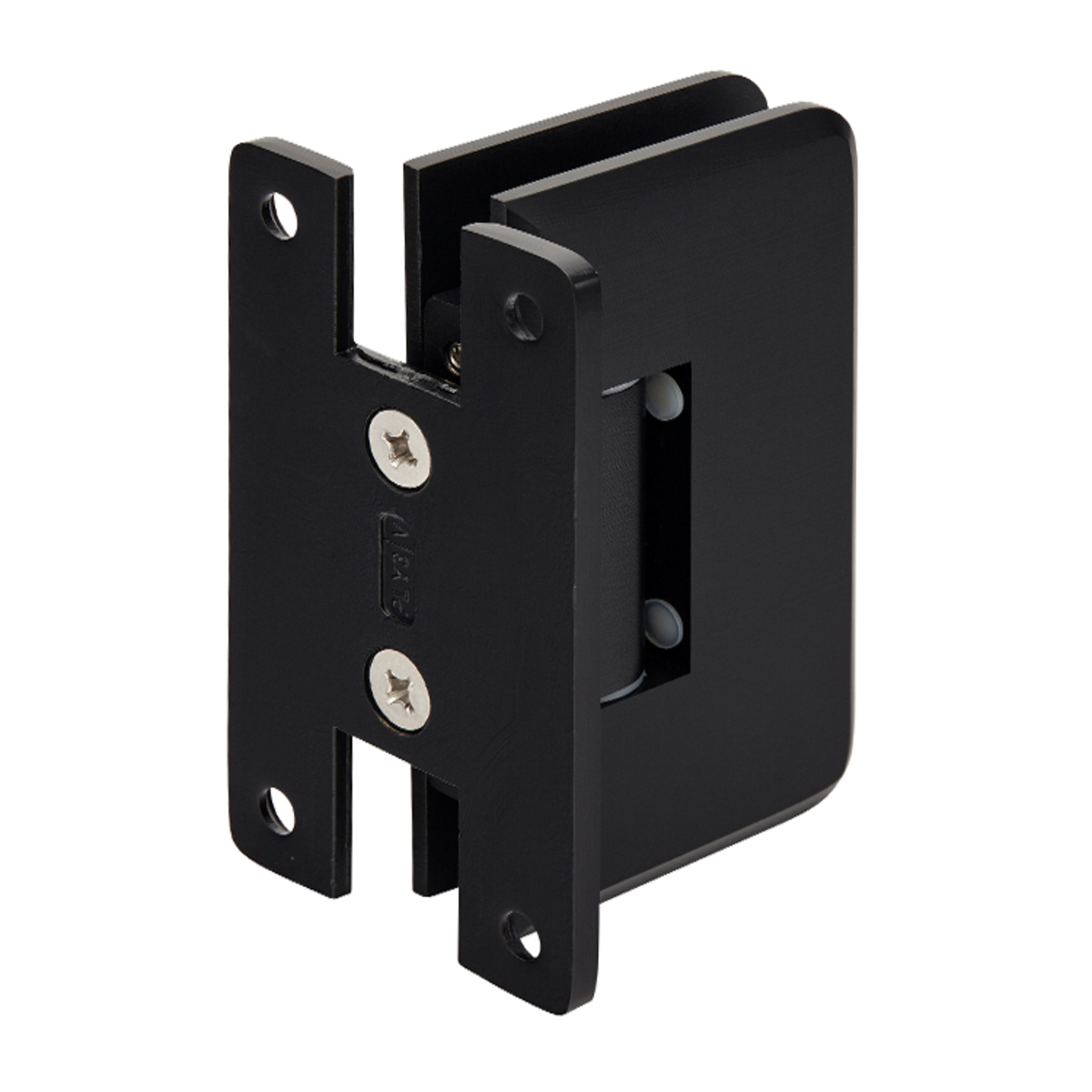

CRL PLY0370RB Oil Rubbed Bronze Plymouth Wall Mount 'H' Back Plate Hinge

CRL PLY0370RB Oil Rubbed Bronze Plymouth Wall Mount 'H' Back Plate Hinge

C.R. Laurence PLY0370RB Oil Rubbed Bronze Plymouth Series Wall Mount 'H' Back Plate Hinge is an exceptional choice for supporting heavier and wider shower doors, capable of accommodating weights up to 140 lbs. (64 kg) and widths of 39" (1 m) using just two hinges. Crafted from solid brass with a stunning oil rubbed bronze finish, this hinge not only enhances the aesthetic appeal of your shower enclosure but also ensures durability and performance. The Plymouth Series hinges feature an integrated safety interlock that enhances glass panel control, while a stiffening beam minimizes clamping plate flex for superior holding power. Designed for use with 3/8" to 1/2" (10 to 12 mm) thick tempered glass, these hinges provide a frameless look that reduces the amount of visible hardware. With a hinge swing range of 90 degrees in and out, these self-centering hinges facilitate smooth operation. The included gaskets, screws, and precise glass fabrication dimensions make installation straightforward. Please note that these hinges are intended for residential or hotel shower use only; approval is required for alternative applications. Enhance your bathroom's functionality and elegance with the C.R. Laurence Plymouth Series Hinge, where robust construction meets sophisticated design.

Oil Rubbed Bronze Plymouth Series Wall Mount 'H' Back Plate Hinge

• An Excellent Choice for Heavier, Wider Shower Doors
• Integrated Safety Interlock Enhances Glass Panel Control
• Wall Mount and 180 Degree Glass-to-Glass Models Available
• For Use with 3/8" to 1/2" (10 to 12 mm) Thick Tempered Glass

CRL Plymouth Series Hinges have the ability of supporting wider, heavier doors, with a maximum door weight of 140 lbs. (64 kg), and a maximum door width of 39" (1 m) using only two hinges.


NOTE: Do not use three hinges.

This produces a frameless aesthetic by reducing the amount of hardware needed. These hinges utilize an integrated stiffening beam to minimize clamping plate flex, resulting in exceptional holding power. They also deliver increased self-centering force, and the heat-treated stainless steel springs produce enhanced durability. For use with 3/8" and 1/2" (10 and 12 mm) thick tempered glass. Stocked in six popular finishes, with custom finishes available.

Using two hinges with 3/8" to 1/2" glass (10 to 12 mm), 39" (1 m) width, the two hinges will hold up to 140 lbs. (64 kg).

SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 Degree in and 90 Degree Out (at Factory Set Position)
Closing Type: Self-Centering when within 15 Degree of Closed Position
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions

NOTE: Do not exceed either door weight or door width maximum capacities. Maximum two hinges per door. Glass fabrication is required.


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
