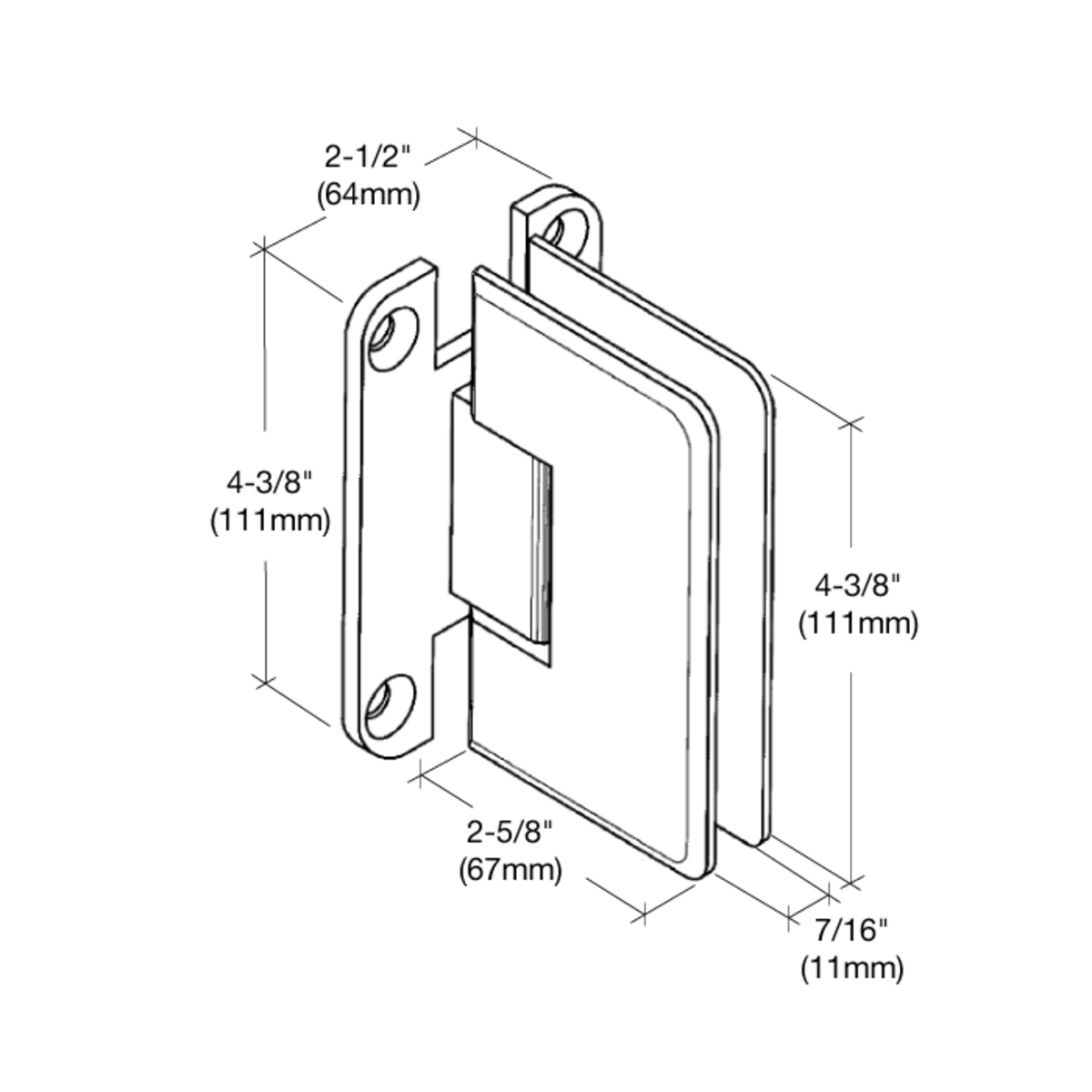

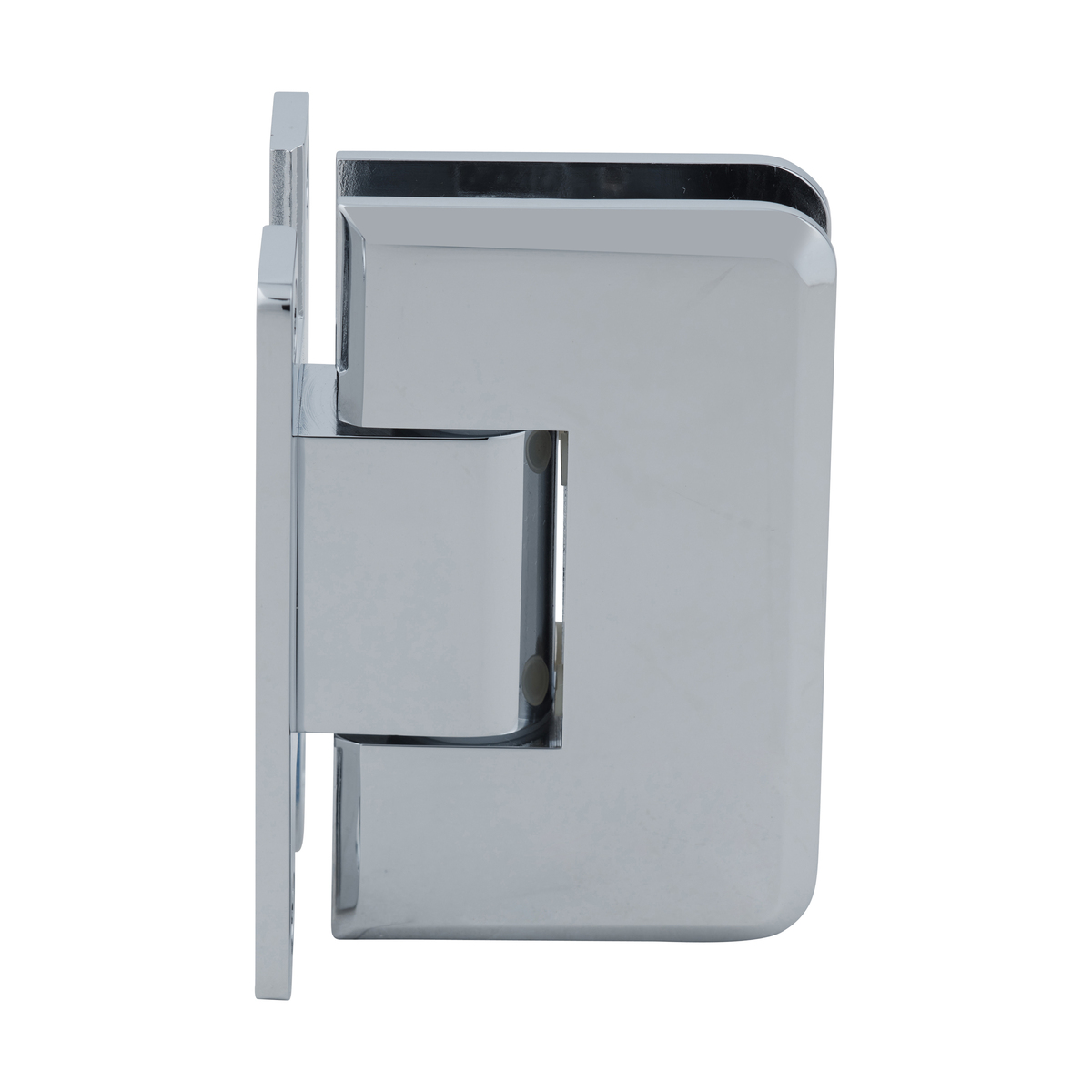

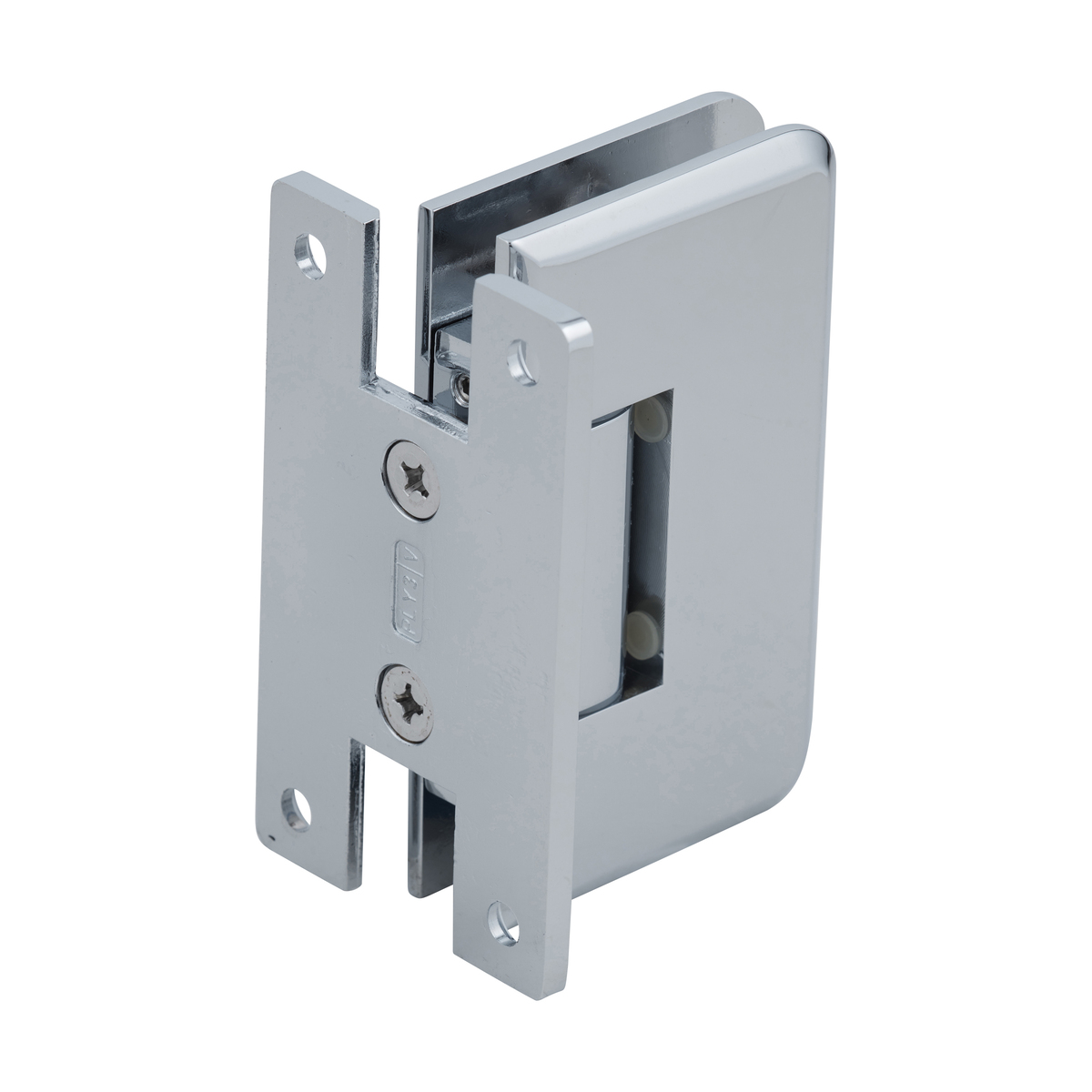

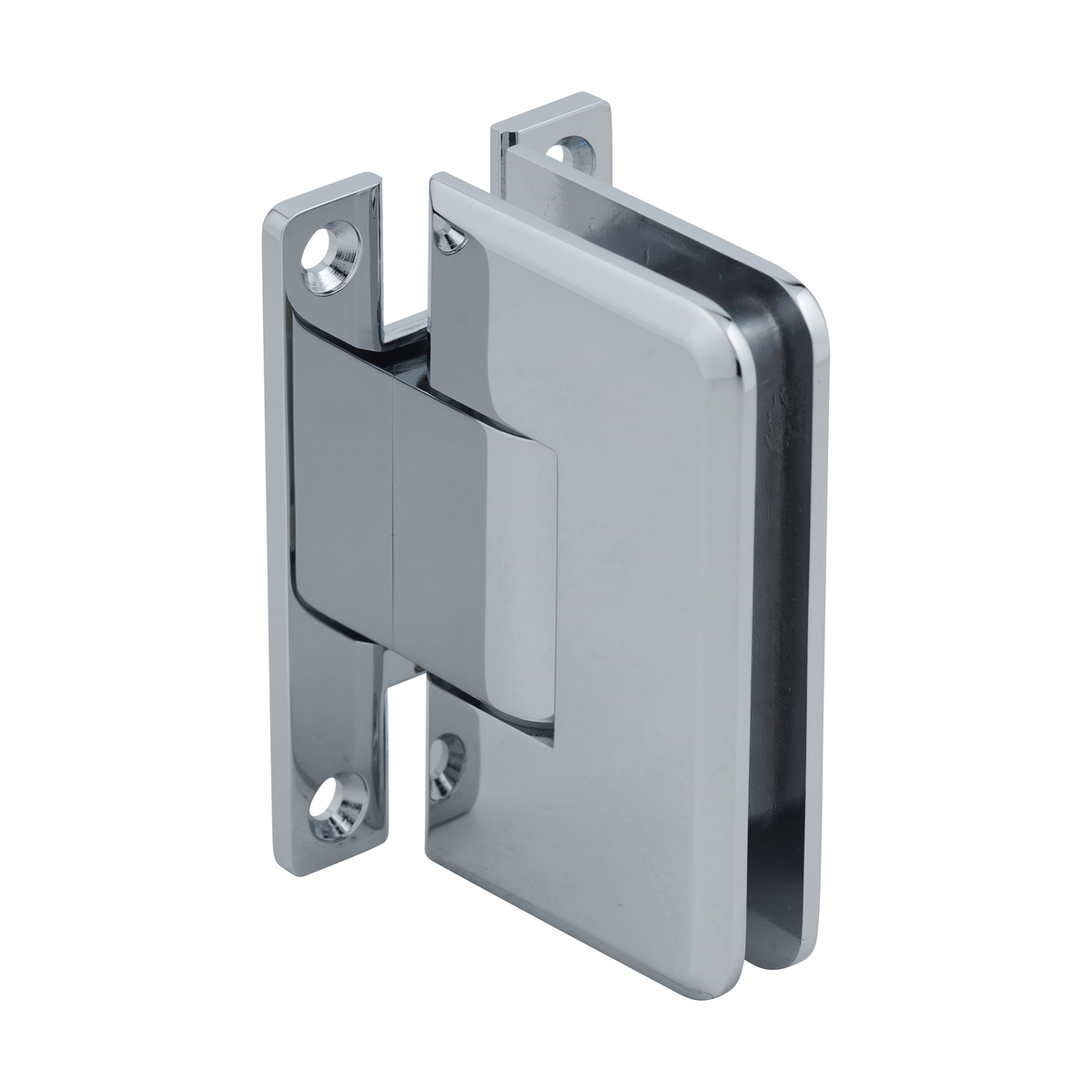

CRL PLY037CH Polished Chrome Plymouth Wall Mount 'H' Back Plate Hinge

CRL PLY037CH Polished Chrome Plymouth Wall Mount 'H' Back Plate Hinge

C.R. Laurence PLY037CH Polished Chrome Plymouth Series Wall Mount 'H' Back Plate Hinge is an outstanding choice for supporting heavier, wider shower doors with a maximum capacity of 140 lbs (64 kg) and up to 39 inches (1 m) in width, all while utilizing just two hinges. This innovative design reduces the amount of visible hardware, achieving a clean, frameless aesthetic that enhances any bathroom space. Featuring an integrated safety interlock, this hinge enhances glass panel control, ensuring durability and stability. The solid brass construction is complemented by heat-treated stainless steel springs that deliver exceptional holding power and longevity. With a glass thickness compatibility of 3/8" to 1/2" (10 to 12 mm) tempered safety glass, the PLY037CH hinge is versatile and dependable. The hinge allows for 90-degree swings both inward and outward, with self-centering capabilities when within 15 degrees of the closed position. Each package includes gaskets, screws, and necessary glass fabrication dimensions, simplifying installation. Stocked in six popular finishes, with custom options available, the C.R. Laurence Plymouth Series hinge is designed for both residential and hotel shower applications, making it a reliable choice for any project.

Polished Chrome Plymouth Series Wall Mount 'H' Back Plate Hinge

• An Excellent Choice for Heavier, Wider Shower Doors
• Integrated Safety Interlock Enhances Glass Panel Control
• Wall Mount and 180 Degree Glass-to-Glass Models Available
• For Use with 3/8" to 1/2" (10 to 12 mm) Thick Tempered Glass

CRL Plymouth Series Hinges have the ability of supporting wider, heavier doors, with a maximum door weight of 140 lbs. (64 kg), and a maximum door width of 39" (1 m) using only two hinges.


NOTE: Do not use three hinges.

This produces a frameless aesthetic by reducing the amount of hardware needed. These hinges utilize an integrated stiffening beam to minimize clamping plate flex, resulting in exceptional holding power. They also deliver increased self-centering force, and the heat-treated stainless steel springs produce enhanced durability. For use with 3/8" and 1/2" (10 and 12 mm) thick tempered glass. Stocked in six popular finishes, with custom finishes available.

Using two hinges with 3/8" to 1/2" glass (10 to 12 mm), 39" (1 m) width, the two hinges will hold up to 140 lbs. (64 kg).

SPECIFICATIONS:
Glass Thickness: 3/8" to 1/2" (10 to 12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90 Degree in and 90 Degree Out (at Factory Set Position)
Closing Type: Self-Centering when within 15 Degree of Closed Position
Cut-Out Required
Includes: Gaskets, Screws, and Glass Fabrication Dimensions

NOTE: Do not exceed either door weight or door width maximum capacities. Maximum two hinges per door. Glass fabrication is required.


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
