CRL PNA91252L0 Custom Series 925 White KYNAR Left-Swing Patio Door with Transom Frame

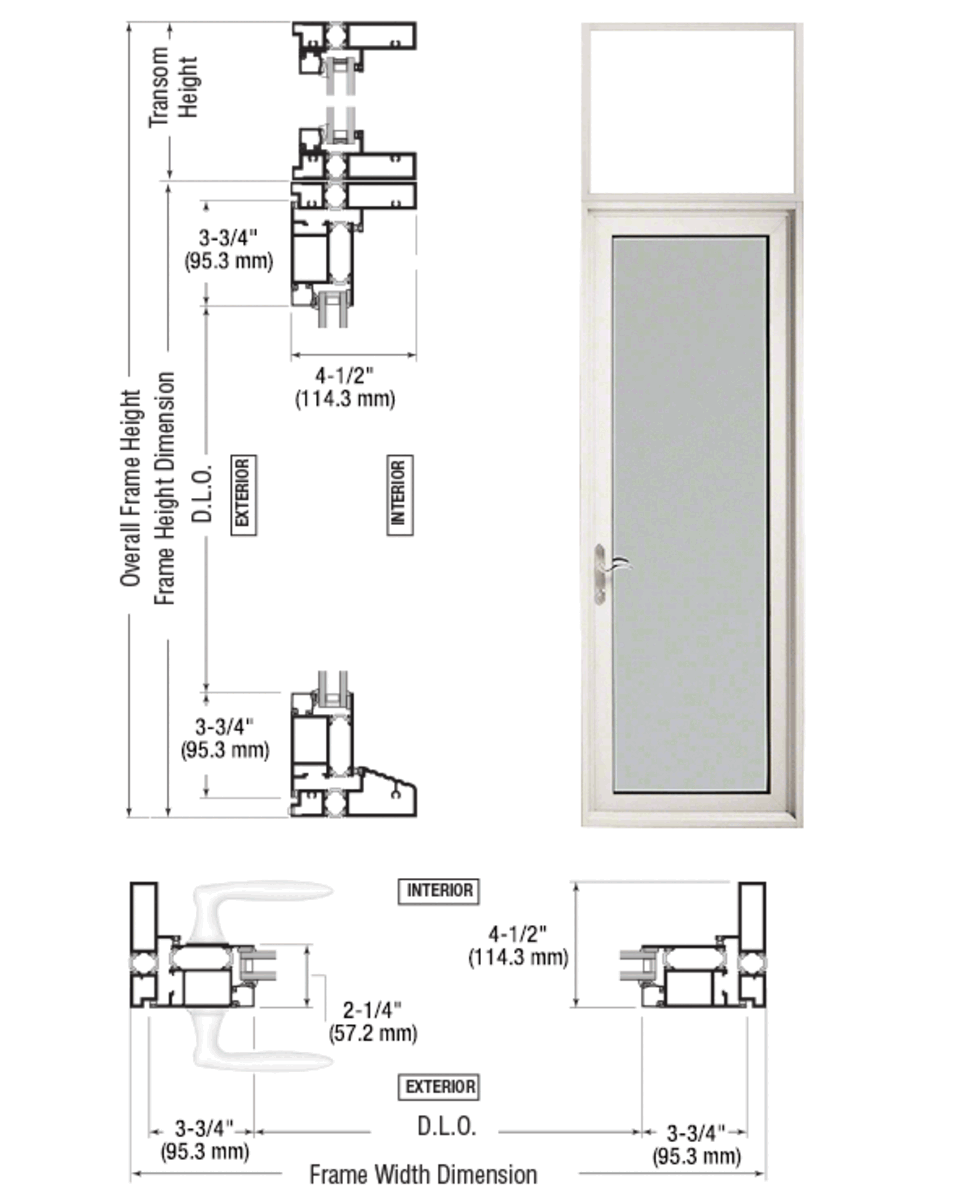

CRL PNA91252L0 Custom Series 925 White KYNAR Paint Hinged Left Swing Out Patio Single Door with Transom Frame is a meticulously designed entrance solution that combines aesthetics with functionality. Crafted with a robust 1" x 4-1/2" (25 x 144 mm) thermally broken framing, this patio door ensures excellent thermal performance, making it an ideal choice for energy-efficient homes. The door features a medium stile thickness of 2-1/4" (57 mm) and a generous 10" (254 mm) bottom rail, providing both strength and style. The inclusion of a five-point locking device enhances security, ensuring peace of mind for homeowners. Additionally, the low profile threshold contributes to a seamless transition between indoor and outdoor spaces, while accepting 1" (25 mm) insulating glass for superior insulation. Designed for durability, the door is finished in White KYNAR, offering not only a sleek appearance but also resistance to fading and scratching. This model is equipped with offset pivot hinges and a substantial 3-3/4" (95 mm) top rail, ensuring smooth operation and longevity. Please note that this product ships via common carrier only. Elevate your outdoor living space with the reliability and elegance of the CRL PNA91252L0 patio door.

Custom Series 925 White KYNAR Paint Hinged Left Swing Out Patio Single Door with Transom Frame, 10" Bottom Rail, and Low Profile Threshold

• 1" x 4-1/2" (25 x 144 mm) Framing
• Thermally Broken
• Five-Point Locking Device
• Low Profile Threshold
• Accepts 1" (25 mm) Insulating Glass
