CRL PNA91571L0 U.S. Aluminum KYNAR 925 Left Swing Transom Patio Door Hinge

CRL PNA91571L0 - U.S. Aluminum Custom KYNAR Paint Series 925 Transom Patio Door Hinge Left Swing Out offers a sophisticated blend of durability and elegance, tailored for modern architectural needs. This transom frame measures 1" x 4-1/2" (25 x 114.3 mm) and is designed to accommodate 1" (25 mm) insulating glass, ensuring energy efficiency and thermal performance with its thermally broken door and frame construction. The robust five-point locking device enhances security, making it an ideal choice for residential and commercial applications. Featuring a generous 10" (254 mm) bottom rail and a low profile threshold, this door is optimized for out-swing applications, seamlessly merging functionality with aesthetics. The stiles are engineered for butt hinge hardware, while the integrated glass stops are suited for 1" (25 mm) tempered glass from other suppliers. Finished in a custom Kynar coating, the CRL Series 925 not only meets rigorous performance standards but also adds a polished look to any entryway. Please note that shipping is restricted to common carriers only, ensuring safe and reliable delivery. Elevate your project with the precision and quality of the CRL PNA91571L0, designed for those who demand excellence in architectural features.

-U.S. Aluminum Custom KYNAR Paint Series 925 Transom Patio Door Hinge Left Swing Out

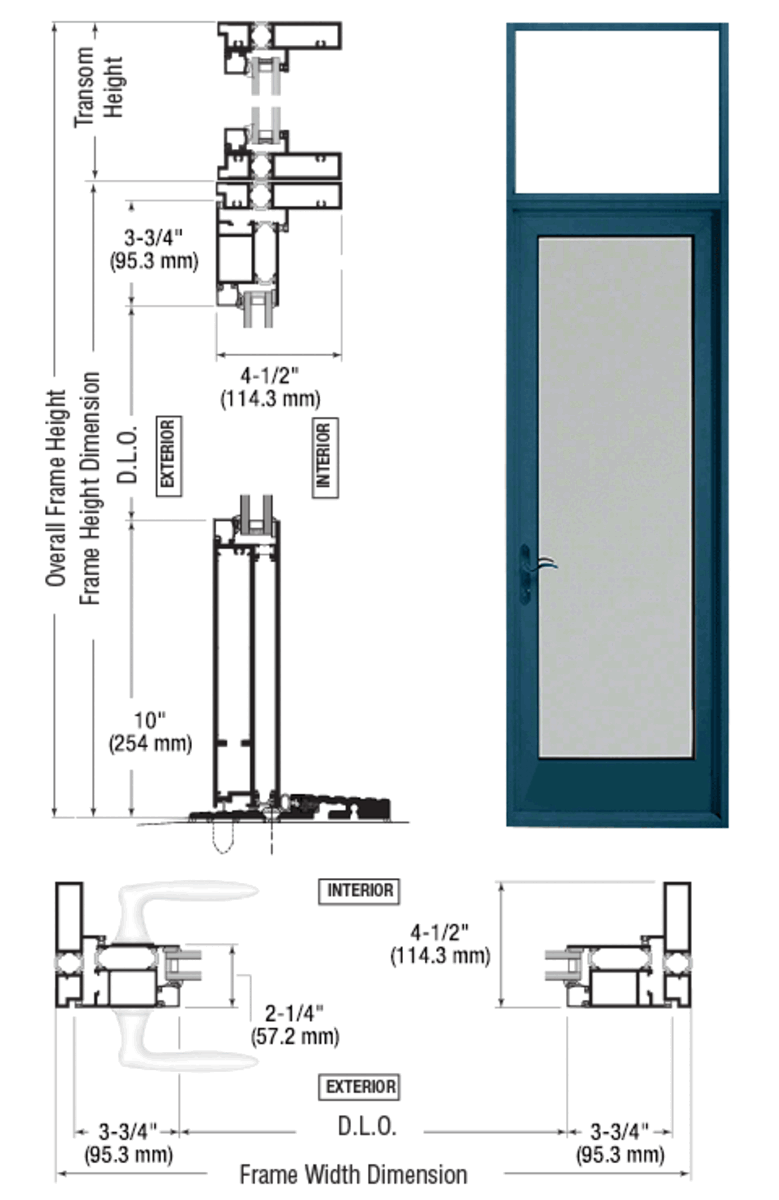

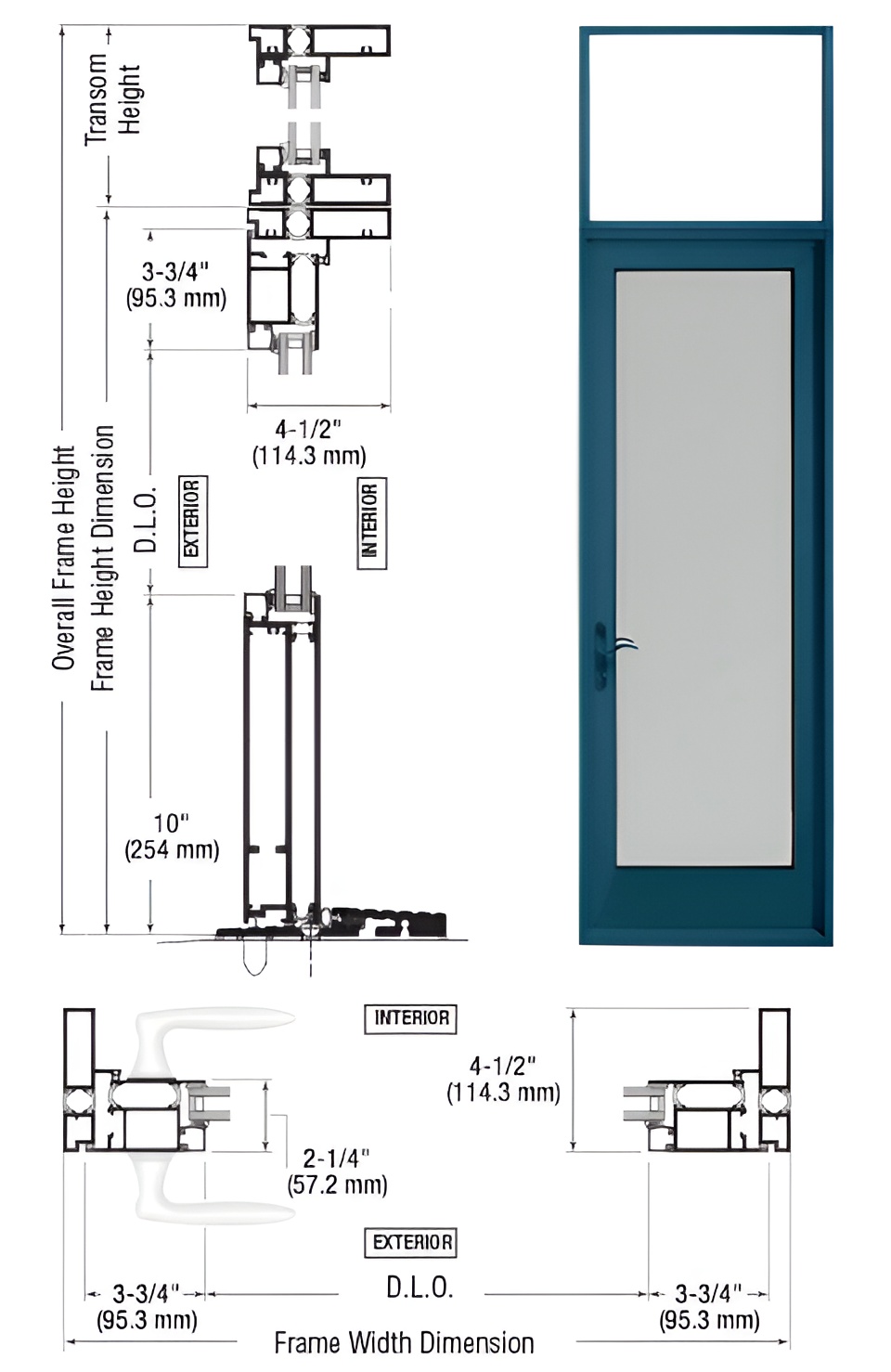

• 1" x 4-1/2" (25 x 144 mm) Transom Frame
• Accepts 1" (25 mm) Insulating Glass
• Thermally Broken Door and Frame
• Five-Point Locking Device
• 10" Bottom Rail and Low Profile Threshold for Out Swing Applications

Resources

• Entrance Hardware Brochure
• Entrance Hardware Brochure
• Institutional Project Case Studies
• Institutional Project Case Studies
• Series 900 925 Patio Door Adjustable Pivot Hinge - Field Replacement Installation Instructions
• Series 900 Terrace Door Series 925 Patio Door and D900 Impact Resistant Terrace Door Numbering Key - Hardware Selection
• Series 900 Terrace Door and Series 925 Patio Door - Sidelite Assembly Installation Instructions
• Series 925 Outswing - Air Water Structural - 48 X 96 - G6910.01-303-47 Test Report
• Series 925 Pair Outswing - Air Water Structural - 96 X 96 - G8680.01-303-47 Test Report
• Series 925 Patio Door Numbering Key for Outswing Doors With Up Over Frame and Transom Frame
• Series 925 Patio Door Product Information
• Series 925 Patio Door for Outswing Door Quote Request Form
• Series 925 Swinging Patio Door Installation Instructions
• USAL14 The Storefront Store Catalog
• USAL14 The Storefront Store Catalog
• USAL15 Curtain Walls Catalog
• USAL15 Curtain Walls Catalog
