CRL PNL92522P0 U.S. Aluminum Class I Bronze Black Anodized Series 925 Transom Patio Door Pair

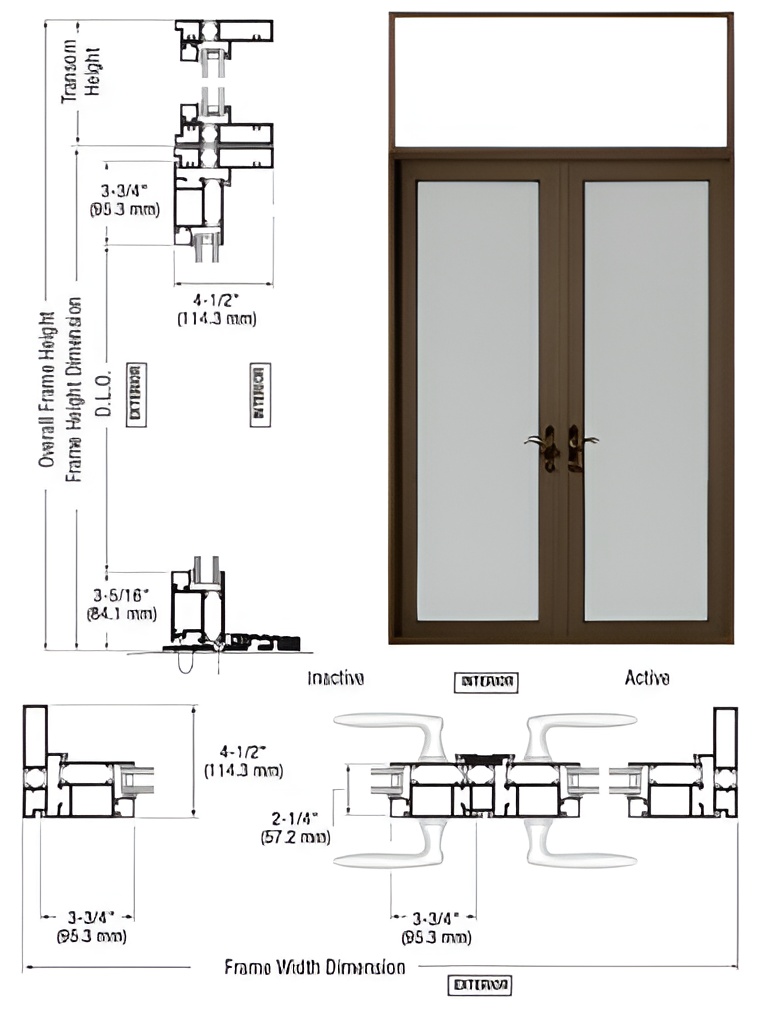

CRL PNL92522P0 - U.S. Aluminum Class I Bronze Black Anodized Series 925 Transom Patio Door Pair Swing Out combines aesthetic appeal with robust functionality, making it an ideal choice for modern spaces. This stylish transom door features a 1" x 4-1/2" (25 x 114.3 mm) frame, designed to accommodate 1" (25 mm) insulating glass, ensuring excellent thermal performance. The thermally broken design enhances energy efficiency by minimizing heat transfer, while the seven-point locking device provides superior security and peace of mind. This model is equipped with a standard bottom rail and a low-profile threshold, perfect for out-swing applications, allowing for smooth operation and accessibility. Crafted with 2-1/4" (57.2 mm) thick doors, 3.75" (95 mm) stiles, and a 3" (76 mm) bottom rail, this patio door pair is built for durability and long-lasting use. It also includes stiles designed for butt hinge hardware and glass stops for 1" (25 mm) tempered glass. With its elegant black bronze anodized finish, the CRL Series 925 not only enhances the visual appeal of any entryway but also withstands the elements, making it a smart investment for residential or commercial properties. Please note that shipping is via common carrier only, ensuring safe delivery of your new patio doors.

-U.S. Aluminum Class I Bronze Black Anodized Series 925 Transom Patio Door Pair Swing Out

• 1" x 4-1/2" (25 x 144 mm) Transom Frame
• Accepts 1" (25 mm) Insulating Glass
• Thermally Broken Door and Frame
• Seven-Point Locking Device
• Standard Bottom Rail and Low Profile Threshold for Out Swing Applications
