CRL PNL92571P0 U.S. Aluminum KYNAR 925 Transom Patio Door Pair - Swing Out

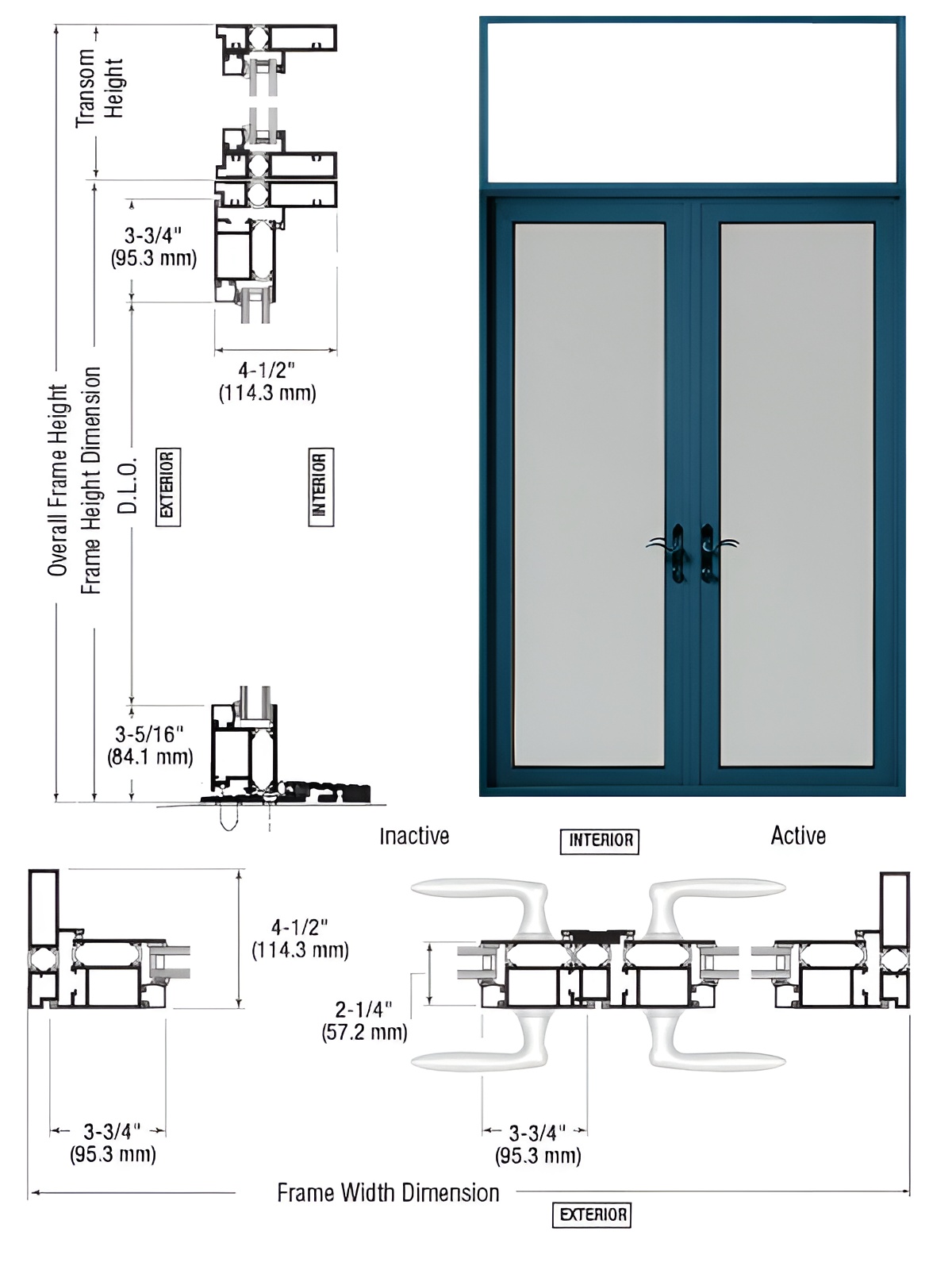

CRL PNL92571P0 - U.S. Aluminum Custom KYNAR Paint Series 925 Transom Patio Door Pair Swing Out combines elegance with advanced functionality, perfect for modern architectural needs. This patio entrance system features a robust 1" x 4-1/2" (25 x 114.3 mm) transom frame, enhancing structural integrity while accommodating 1" (25 mm) insulating glass for improved energy efficiency. Designed with a thermally broken door and frame, it effectively minimizes heat transfer, contributing to a comfortable indoor environment. The door boasts a substantial thickness of 2-1/4" (57.2 mm) and is equipped with precision-engineered stiles and rails, including a 3" (76 mm) bottom rail and a low-profile threshold, making it ideal for outswing applications. Security and ease of use are paramount, which is why this system features a seven-point locking device, providing enhanced protection against intrusions. Additionally, the customizable Kynar finish offers durability while allowing for aesthetic flexibility to match various design preferences. Shipping is restricted to common carriers only, ensuring safe delivery of this premium product. With its combination of quality, security, and aesthetic appeal, the CRL Series 925 is an excellent choice for any professional or homeowner looking to elevate their space.

-U.S. Aluminum Custom KYNAR Paint Series 925 Transom Patio Door Pair Swing Out

• 1" x 4-1/2" (25 x 144 mm) Transom Frame
• Accepts 1" (25 mm) Insulating Glass
• Thermally Broken Door and Frame
• Seven-Point Locking Device
• Standard Bottom Rail and Low Profile Threshold for Out Swing Applications
