CRL PP41EBS Brushed Stainless 16" High 1.5" Square PP41 Plaza End Post with Air SpaceC.R. Laurence PP41EBS Brushed Stainless 16" High 1-1/2" Square PP41 Plaza Series Counter/Partition End Post With Air Space is engineered for durability and style in glass partition applications. This end post stands at a height of 16" (406 mm) and features a robust 1-1/2" (38 mm) square design, crafted from high-quality brushed stainless steel that not only enhances aesthetics but also ensures longevity. Designed with practicality in mind, the post includes a 1/4" (6 mm) channel for secure glass attachment, accommodating 1/4" glass panels with ease. The integrated 2" (51 mm) air space allows for effective thermal expansion, while the supplied flat cap and welded base plate ensure a sturdy installation. Each kit comes complete with one post, a welded flange base, a top cap, and installation screws, making setup straightforward and efficient. Ready to ship from Los Angeles within three to five days, these posts are perfect for both commercial and residential projects. For those looking for custom solutions, C.R. Laurence offers fabrication options to meet specific needs. With a focus on quality and compliance, the PP41EBS is an ideal choice for any glass partition or divider system, combining functionality and elegance seamlessly.
Brushed Stainless 16" High 1-1/2" Square PP41 Plaza Series Counter/Partition End Post With Air Space
- 16" x 1-1/2" (406 x 38 mm) Square Posts with 1/4" (6 mm) Channel and 2" (51 mm) Air Space
- Supplied with Flat Cap and Welded Base Plate
- Posts Ready-to-Ship in Three to Five Days from Los Angeles
CRL Plaza Series Glass Partition and Divider Posts are constructed with 1-1/2" (38 mm) Stainless Steel Square Tubing. 1/4" (6 mm) glass can be attached to the full length U-Channels with Cat. No. 33SC Clear Silicone, which meets CRL Standards.
Model PP43 Posts are available off the shelf in two stock sizes and two finishes. You can install them in wood, marble or vitreous counter tops using the Welded Flange Base and the supplied screws. Each Kit contains one Post, one Welded Flange Base, one Top Cap, and Installation Screws. (Flat Top Cap Included.)
These Posts are stock sizes and are ready-to-ship to you. We can fabricate Custom Posts to ship from Los Angeles, California within three to five working days. Also, for Do-it-Yourselfers we offer stock component parts ready-to-ship so you can fabricate complete units in your own shop.

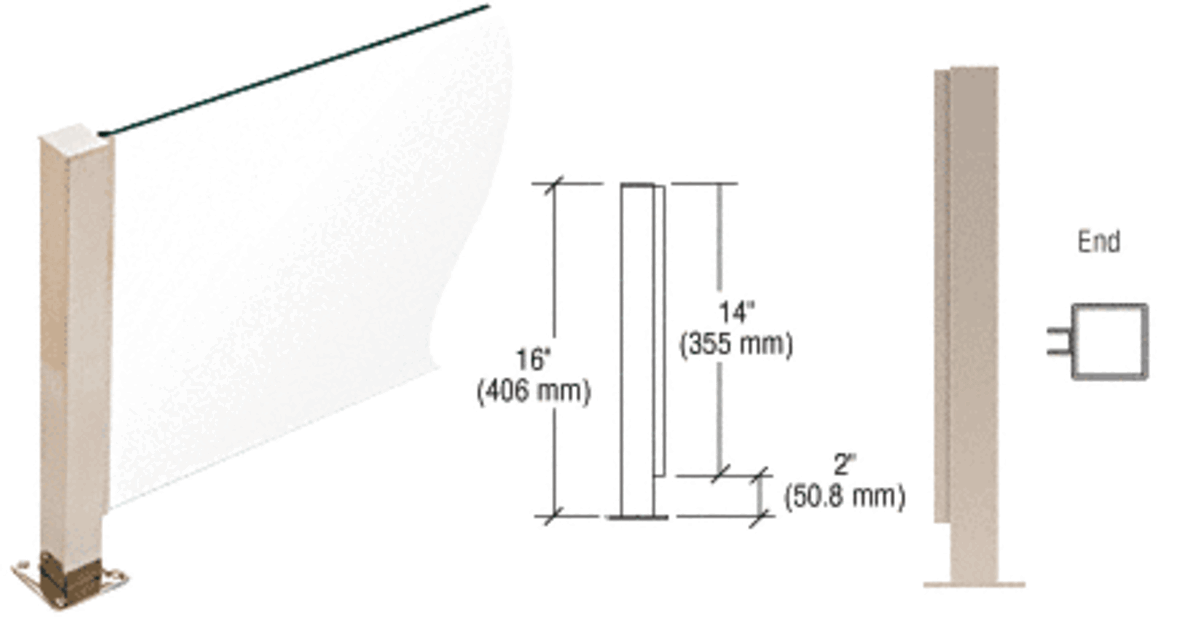

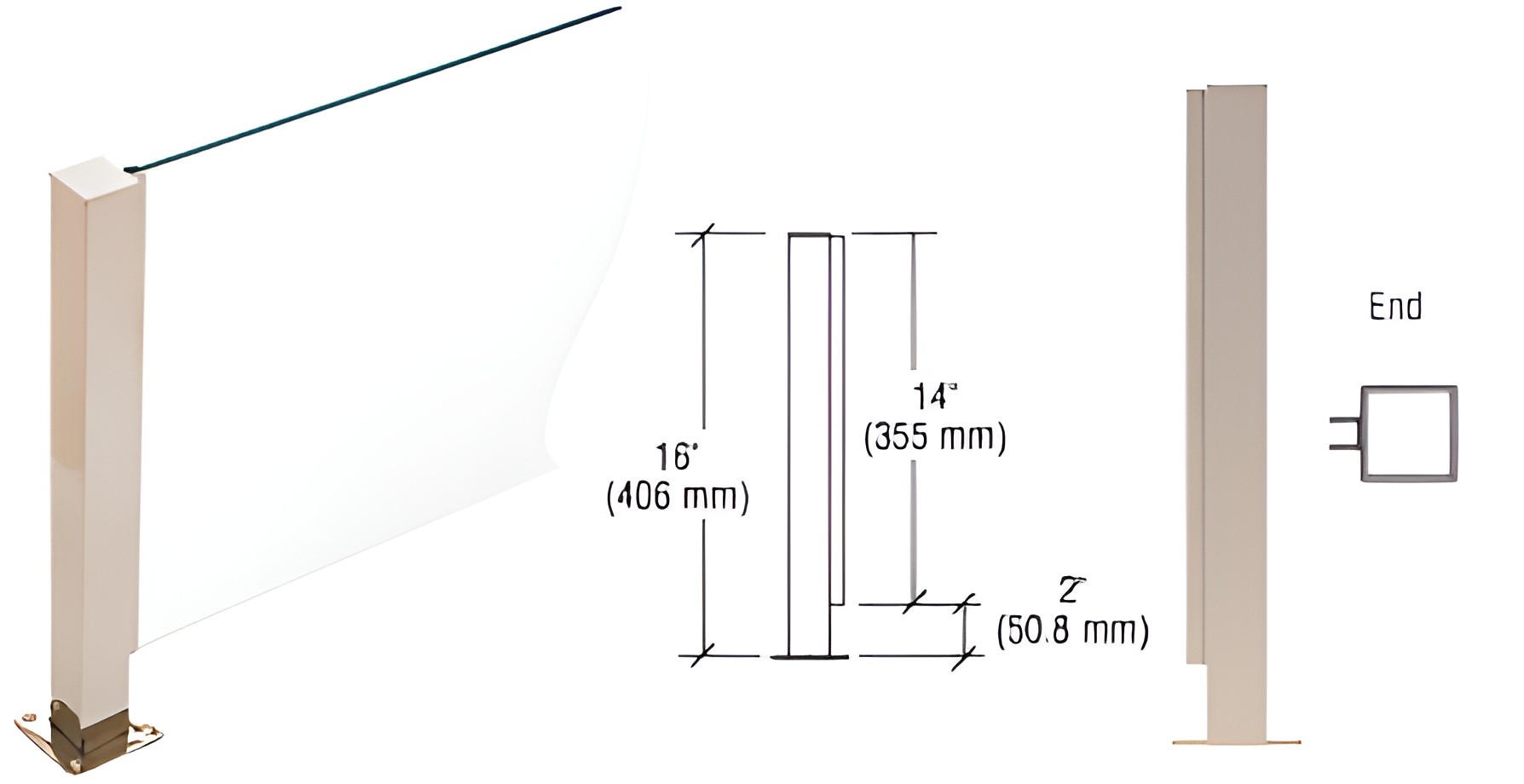

Posts measure 1-1/2" (38 mm) square; Welded base plates measure 3" (76.2 mm) square; 1/4" (6 mm) glazing channels measure full length, and rise 1/2" (12.7 mm) from the post surface.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Air Gap: 2 in. (50.8 mm)
Base Type: Square Flat - Welded
Cap Type: Flat
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Configuration: Non-Handed End Post
Finish/ Color:: Brushed Stainless Steel
Glazed: No
Glazing Attachment Type: U-Channel
Glazing Thickness: 1/4 in. (6 mm)
Height: 16 in. (406.4 mm)
Material: Stainless Steel
Series: Plaza
Shipping Limitations: None
Tube Size: 1-1/2 in. (38.1 mm)
Tube Type: Square
Resources
