CRL PP47CBS Brushed Stainless 18" High 1" Square Mini Plaza Partition Center PostC.R. Laurence PP47CBS Brushed Stainless 18" High 1" Square PP47 Mini Plaza Series Partition Center Post With U-Channel offers a robust and stylish solution for glass partitioning needs. Constructed from high-quality 1-1/2" (38 mm) stainless steel square tubing, this post is designed to support 1/4" (6 mm) glass securely using full-length U-Channels. The included flat cap and welded base plate ensure a sleek finish while providing stability, making it ideal for various applications. Measuring 18" (457 mm) in height and 1" (25.4 mm) in width, the PP47CBS features a 2" (50.8 mm) airspace at the bottom, allowing for easy installation and adjustment. Each kit comes complete with one post, a welded flange base, a top cap, and installation screws, making setup straightforward, whether in wood, marble, or vitreous countertops. Ready to ship within three to five working days from Los Angeles, this post is available in brushed stainless steel, blending seamlessly into any modern design. Additionally, for the DIY enthusiast, C.R. Laurence offers stock component parts to fabricate complete units. Elevate your architectural project with the reliability and aesthetic appeal of the PP47 Mini Plaza Series Partition Center Post.
Brushed Stainless 18" High 1" Square PP47 Mini Plaza Series Partition Center Post With U-Channel
- Posts Ready-to-Ship in Three to Five Working Days from Los Angeles
- 18" x 1" (457 x 25.4 mm) Square Posts With U-Channel for 1/4" (6 mm) Glass
- Supplied With Flat Cap and Welded Base Plate
- 2" (50.8 mm) Air Space at Bottom
CRL Plaza Series Glass Partition and Divider Posts are constructed with 1-1/2" (38 mm) Stainless Steel Square Tubing. 1/4" (6 mm) glass can be attached to the full length U-Channels with Cat. No. 33SC Clear Silicone, which meets CRL Standards.
Model PP43 Posts are available off the shelf in two stock sizes and two finishes. You can install them in wood, marble or vitreous counter tops using the Welded Flange Base and the supplied screws. Each Kit contains one Post, one Welded Flange Base, one Top Cap, and Installation Screws. (Flat Top Cap Included.)
These Posts are stock sizes and are ready-to-ship to you. We can fabricate Custom Posts to ship from Los Angeles, California within three to five working days. Also, for Do-it-Yourselfers we offer stock component parts ready-to-ship so you can fabricate complete units in your own shop.

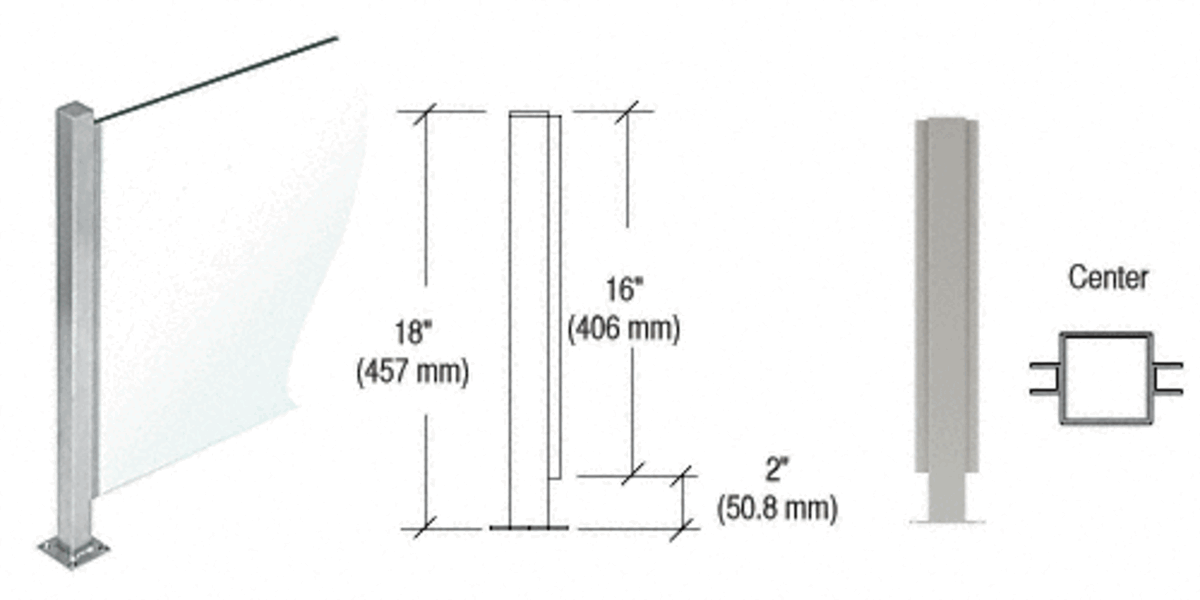

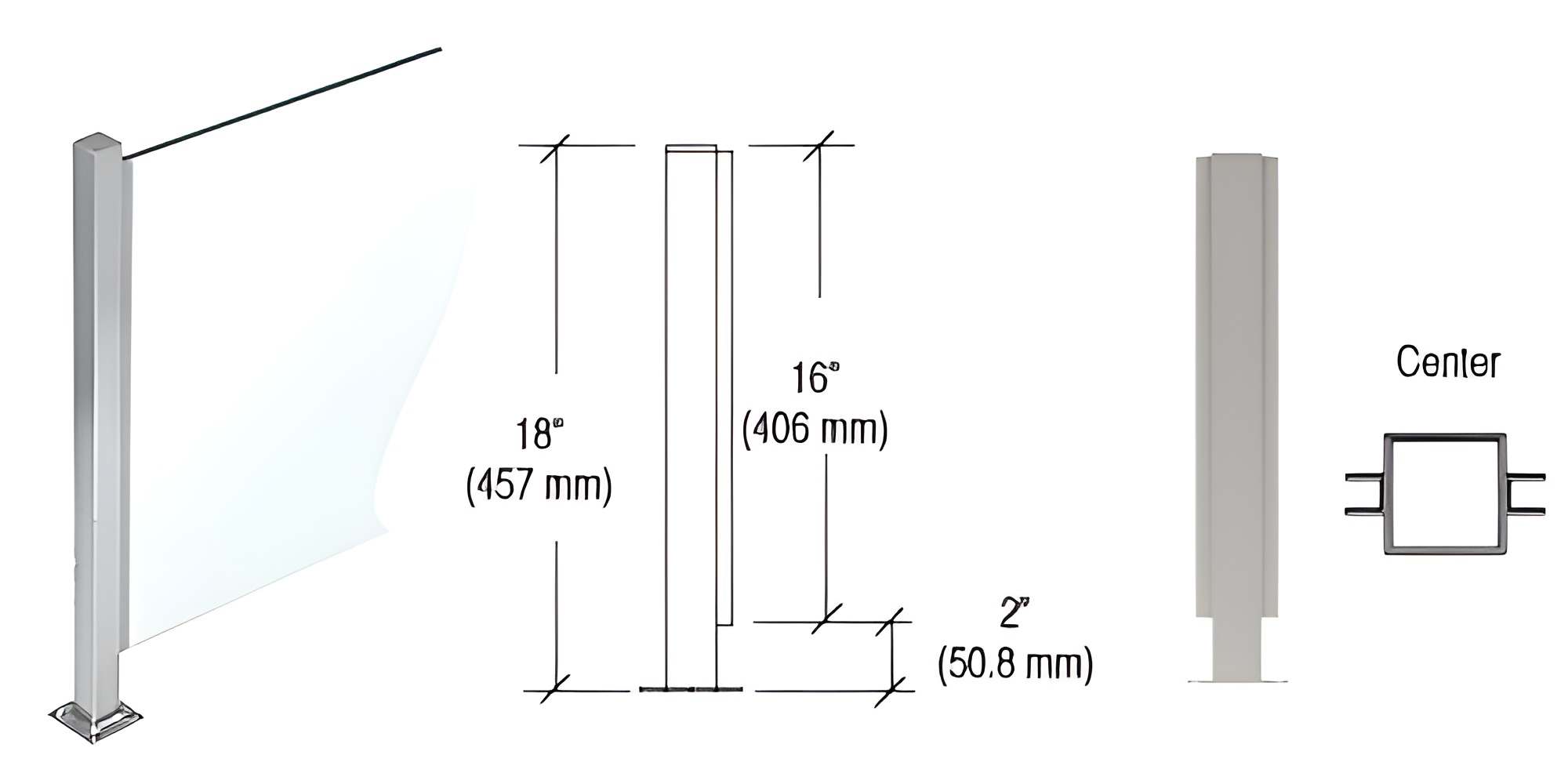

Posts measure 1-1/2" (38 mm) square; Welded base plates measure 3" (76.2 mm) square; 1/4" (6 mm) glazing channels measure full length, and rise 1/2" (12.7 mm) from the post surface.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Air Gap: 2 in. (50.8 mm)
Base Type: Square Flat - Welded
Cap Type: Flat
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Configuration: Center Post
Finish/ Color:: Brushed Stainless Steel
Glazed: No
Glazing Attachment Type: U-Channel
Glazing Thickness: 1/4 in. (6 mm)
Height: 18 in. (457.2 mm)
Material: Stainless Steel
Series: Plaza
Shipping Limitations: None
Tube Size: 1 in. (25.4 mm)
Tube Type: Square
