CRL PP47EBS Brushed Stainless 18" High 1" Square Mini Plaza Partition End Post with U-ChannelC.R. Laurence PP47EBS Brushed Stainless 18" High 1" Square PP47 Mini Plaza Series Partition End Post With U-Channel is designed for durability and modern aesthetics. This robust post measures 18" in height and features a 1" square profile, perfectly suited to support 1/4" (6 mm) glass. The U-Channel attachment facilitates a seamless integration into your glass partition system, ensuring stability and style. Constructed from high-quality stainless steel, the PP47EBS offers a brushed finish that not only enhances its visual appeal but also contributes to its resistance against corrosion. The post is supplied with a flat cap and a welded base plate that measures 3" square, providing a secure foundation for installation. Additionally, a 2" air space at the bottom allows for flexibility during installation on various surfaces, including wood, marble, or vitreous countertops. Ready to ship within three to five working days from Los Angeles, this post is available for immediate use, making it an excellent choice for building professionals and DIY enthusiasts alike. Each kit includes one post, a welded flange base, a top cap, and installation screws, ensuring you have everything needed for a straightforward setup. Elevate your space with the reliability and modern design of the C.R. Laurence PP47EBS Mini Plaza Series Partition End Post.
Brushed Stainless 18" High 1" Square PP47 Mini Plaza Series Partition End Post With U-Channel
- Posts Ready-to-Ship in Three to Five Working Days From Los Angeles

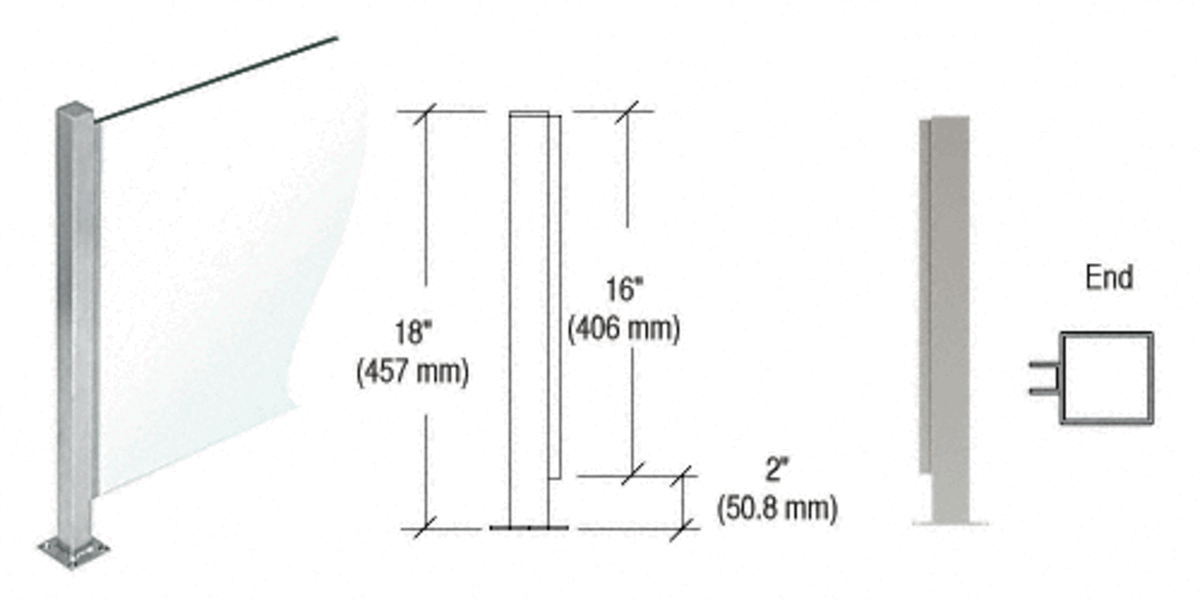

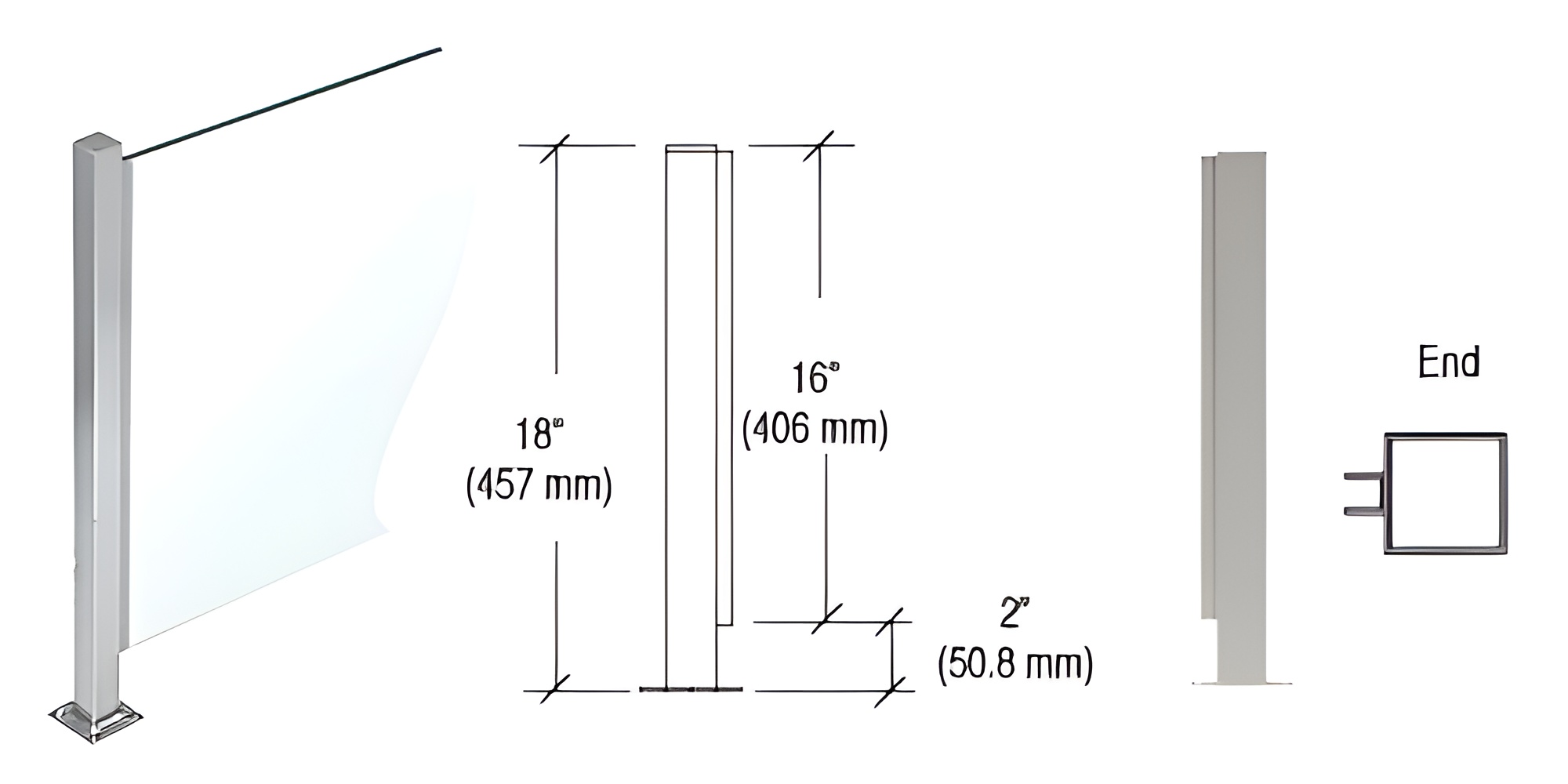

- 18" x 1" (457 x 25.4 mm) Square Posts with U-Channel for 1/4" (6 mm) Glass
- Supplied with Flat Cap and Welded Base Plate
- 2" (50.8 mm) Air Space at Bottom
CRL Plaza Series Glass Partition and Divider Posts are constructed with 1-1/2" (38 mm) Stainless Steel Square Tubing. 1/4" (6 mm) glass can be attached to the full length U-Channels with Cat. No. 33SC Clear Silicone, which meets CRL Standards.
Model PP43 Posts are available off the shelf in two stock sizes and two finishes. You can install them in wood, marble or vitreous counter tops using the Welded Flange Base and the supplied screws. Each Kit contains one Post, one Welded Flange Base, one Top Cap, and Installation Screws. (Flat Top Cap Included.)
These Posts are stock sizes and are ready-to-ship to you. We can fabricate Custom Posts to ship from Los Angeles, California within three to five working days. Also, for Do-it-Yourselfers we offer stock component parts ready-to-ship so you can fabricate complete units in your own shop.
Posts measure 1-1/2" (38 mm) square; Welded base plates measure 3" (76.2 mm) square; 1/4" (6 mm) glazing channels measure full length, and rise 1/2" (12.7 mm) from the post surface.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Air Gap: 2 in. (50.8 mm)
Base Type: Square Flat - Welded
Cap Type: Flat
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Configuration: Non-Handed End Post
Finish/ Color:: Brushed Stainless Steel
Glazed: No
Glazing Attachment Type: U-Channel
Glazing Thickness: 1/4 in. (6 mm)
Height: 18 in. (457.2 mm)
Material: Stainless Steel
Series: Plaza
Shipping Limitations: None
Tube Size: 1 in. (25.4 mm)
Tube Type: Square
