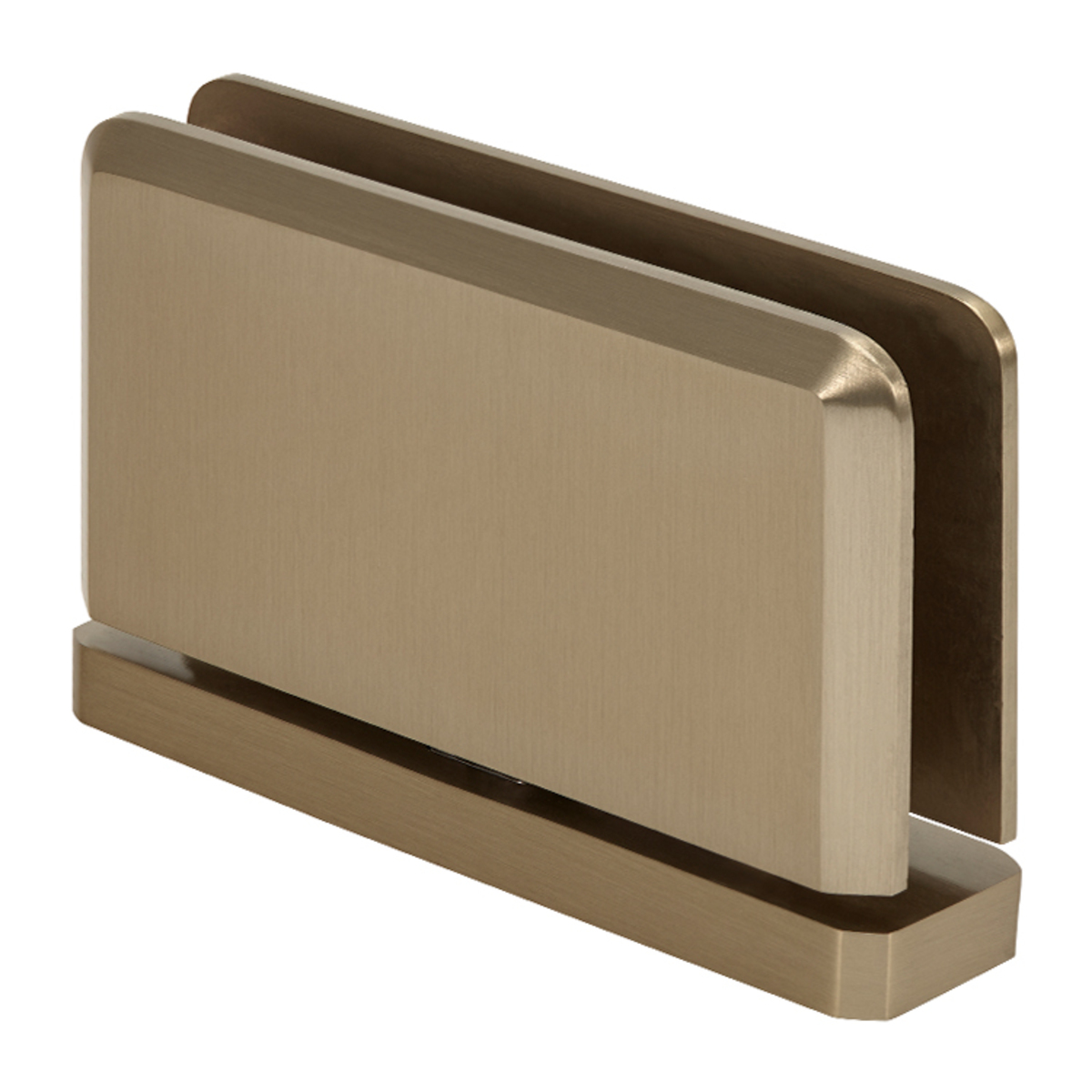

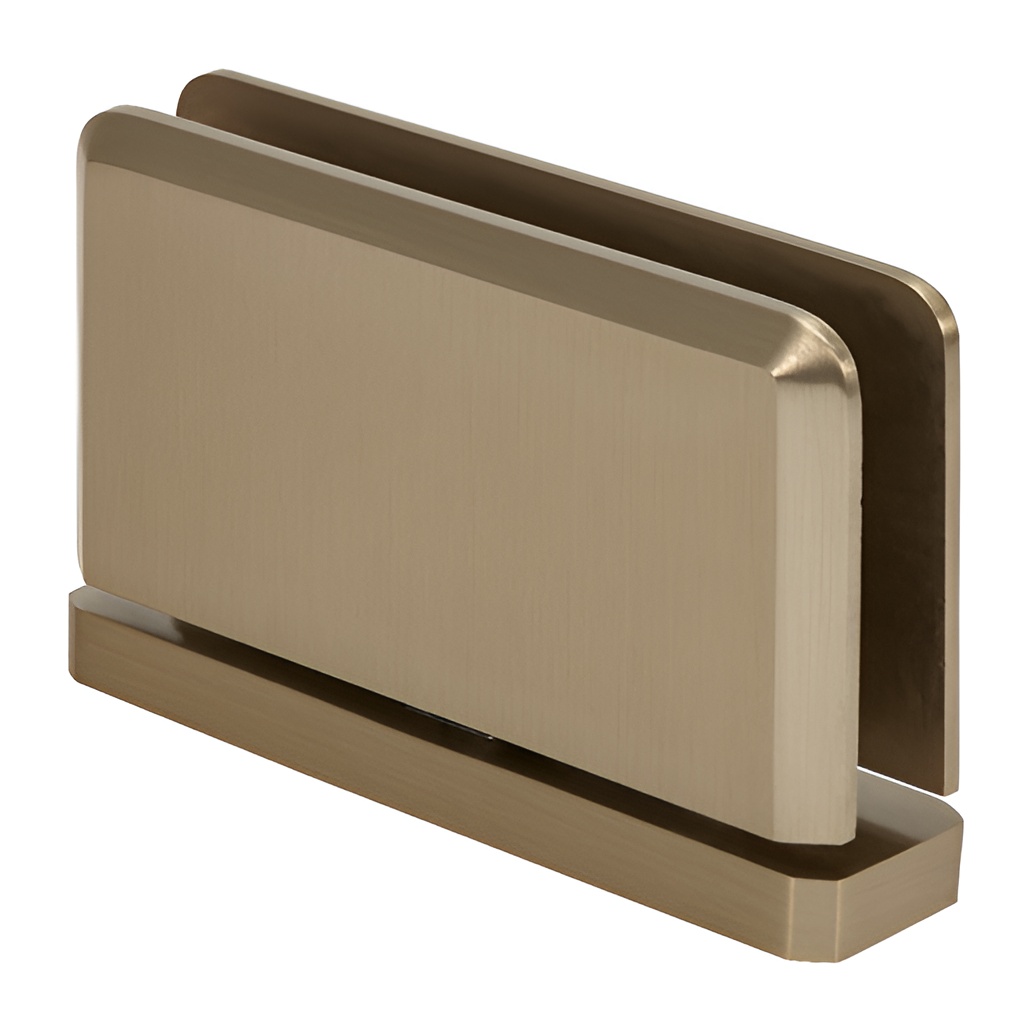

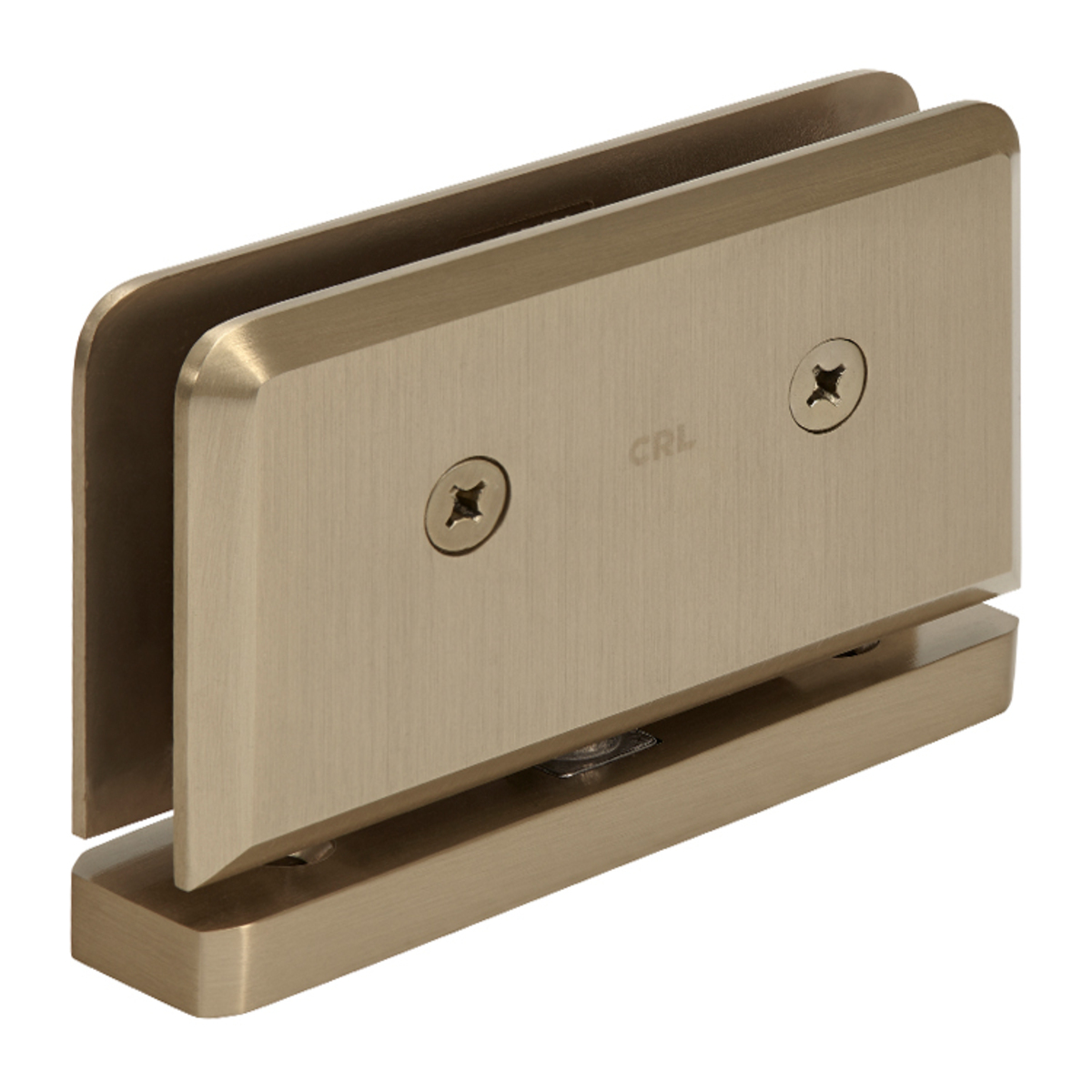

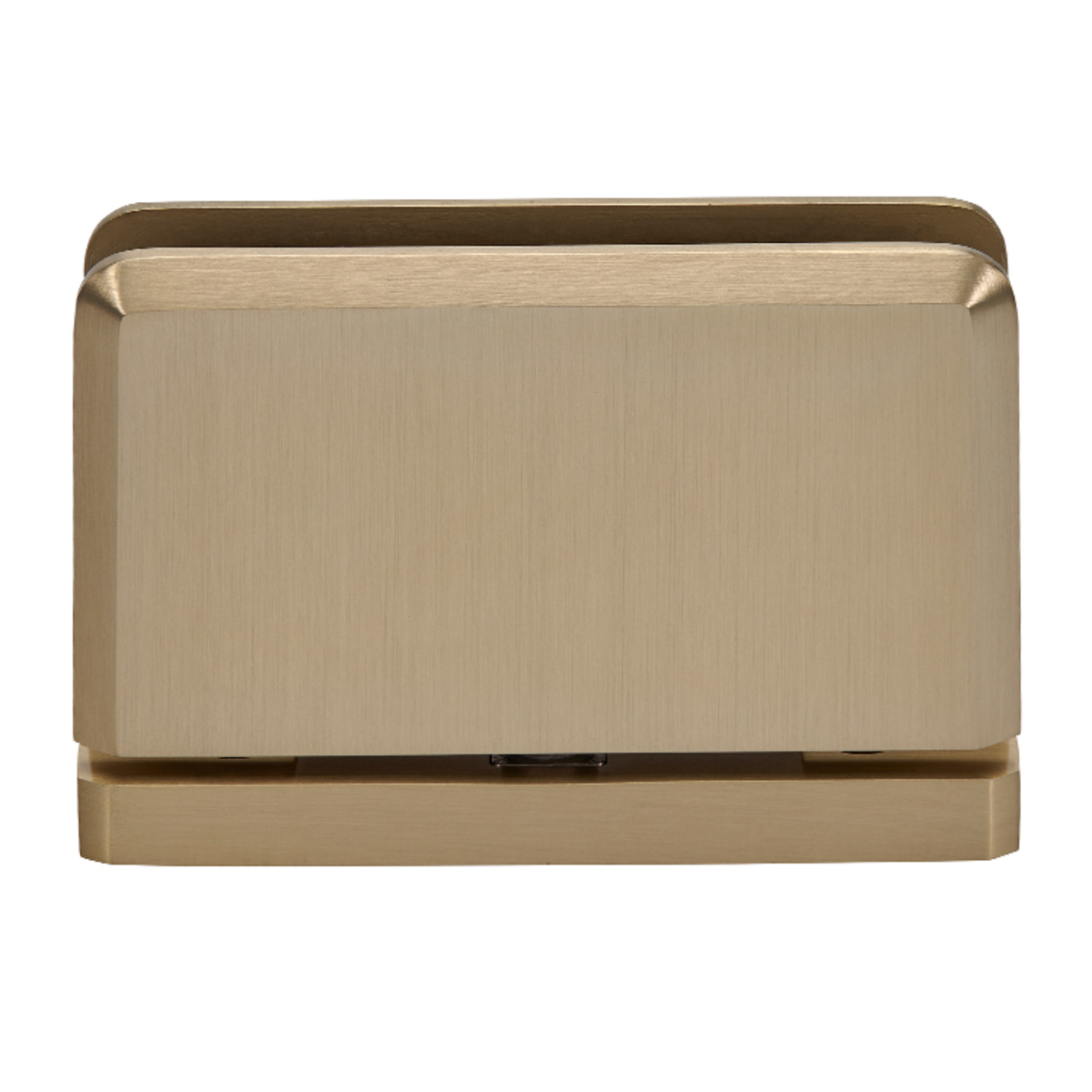

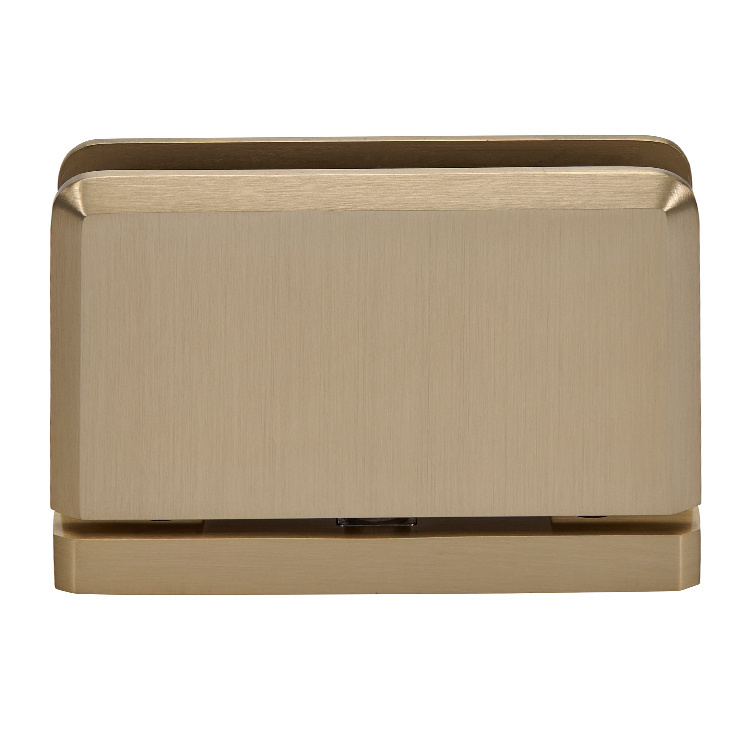

CRL PPH01BBRZ Brushed Bronze Prima 01 Series Top/Bottom Mount Hinge

CRL PPH01BBRZ Brushed Bronze Prima 01 Series Top/Bottom Mount Hinge

C.R. Laurence PPH01BBRZ Brushed Bronze Prima 01 Series Top or Bottom Mount Hinge offers an elegant solution for modern glass enclosures, seamlessly integrating style and functionality. Designed for use with 5/16" to 3/8" (8 to 10 mm) tempered safety glass, this hinge supports up to 100 lbs. (45 kg) with a maximum door width of 31" (787 mm). Its top or bottom mount capability enhances design versatility, allowing it to adapt to the Deluxe Header Kit for versatile installations. The self-centering feature, enhanced by four springs, ensures reliable closing within a 15-degree angle. Optional 5-degree pivot pin sets can be utilized to adjust the closing position of the door, providing further customization. Crafted from solid brass and available in multiple stunning finishes, including brushed bronze, this hinge elevates the aesthetic of any space, from residential bathrooms to hotel showers. Installation is straightforward, with included gaskets and screws, while the patented design (U.S. Patent 5,297,313) minimizes cut-outs compared to traditional side mount hinges, maximizing glass visibility. Backed by a three-year warranty, the PPH01 model is a durable and chic choice for professionals and discerning homeowners alike.

Brushed Bronze Prima 01 Series Top or Bottom Mount Hinge

• Top or Bottom Mount (Can be Adapted to Deluxe Header Kit)
• Self-Centering with Optional 5 Degree Pivot Pin Set
• Available in Several Beautiful Finishes
• 3 Year Warranty
• Use Monolithic Tempered Glass
• U.S. Patent 5,297,313

CRL Prima Series Pivot Hinges are designed for use with 5/16" to 3/8" (8 to 10 mm) tempered safety glass, and provide an extra number of application possibilities. Some advantages of pivot type hinges include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections. Prima Series Pivot Hinges are self-centering, with four springs for maximum retention strength. Optional Cat. No. P1VP1N 5 degree Pre-Set Pivot Pin Sets may be ordered separately. In addition, Pre-Set 5 degree Hinge models are available. The PPH01 Model is adaptable to our Deluxe Header System for shower enclosures not going all the way up to the ceiling. Our PPH06 Model is only compatible with our EZ-Adjust Header System. It includes an adaptor used with the EZ-Adjust Header System. (Must order HAB01 Adaptor Block Separately)


Optional 5 degree Pivot Pin set (For Prima, Cardiff, Rondo, and Shell Series): Optional 5 degree Pivot Pin Sets are available when you want to alter the closing position of the door by 5 degree. These Pivot Pins may be inserted prior to installation, or retrofitted after the installation is complete. Sold as a set: One for the top, and one for the bottom. Not included with hinge purchase. Pre-Set 5 degree Hinge models are available from stock.

Using two hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Special Features: Top and Bottom Mount design allows more glass to show. Use of these hinges will reduce quantity of cut-outs required when compared to standard side mount glass-to-glass hinges. Cat. No. PPH01 can be mounted floor and ceiling, or floor and header.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required (PPH135 Model also requires two holes; PPH07 Model requires Cut-Out for Hinge and Hole for Clamp).
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
This hinge series is patented (Patent No. 5,297,313).

Custom finishes are available on request. Contact the CRL Technical Sales Department.


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
