CRL PPH02BBRZ Brushed Bronze Prima 02 Glass-to-Glass Mount Hinge

CRL PPH02BBRZ Brushed Bronze Prima 02 Glass-to-Glass Mount Hinge

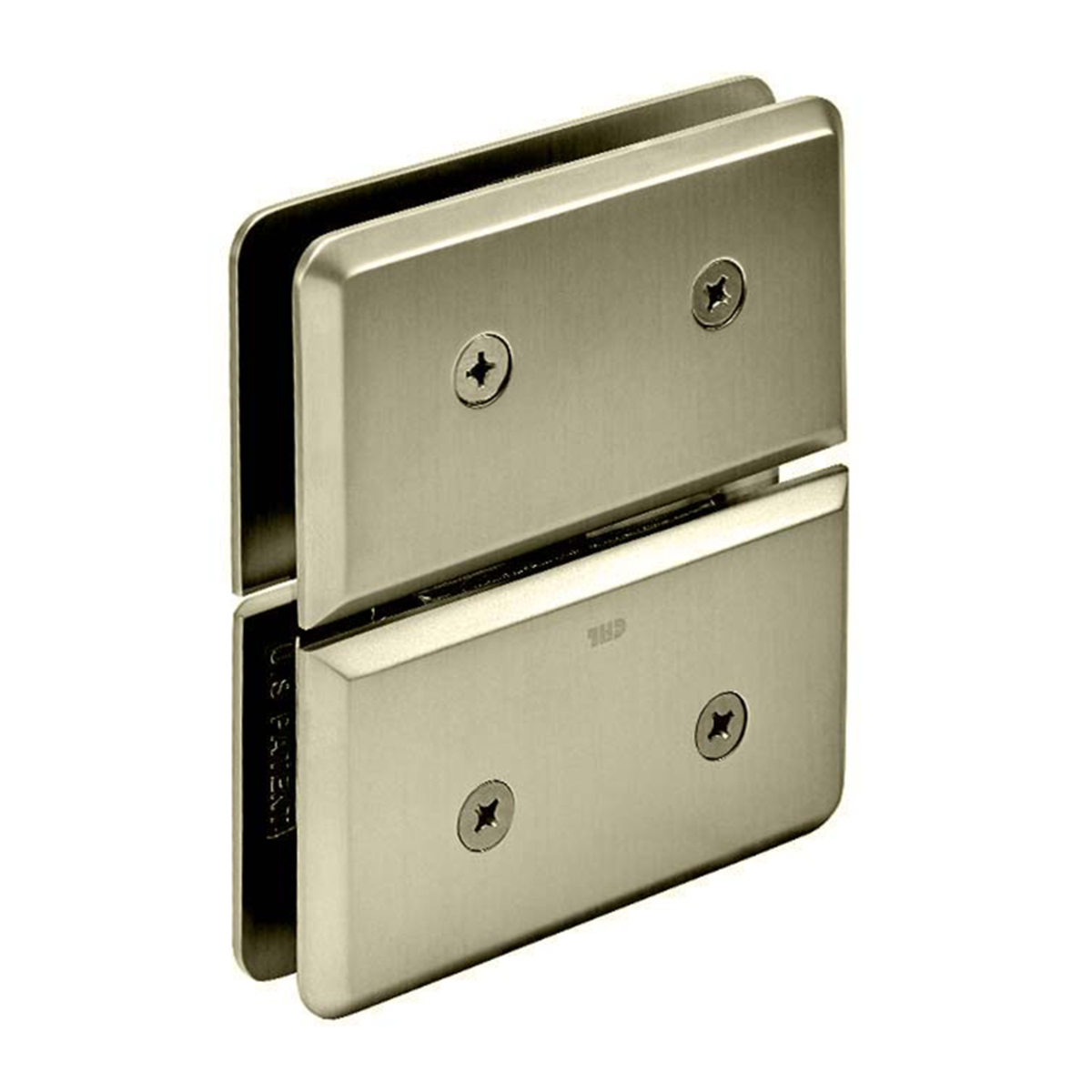

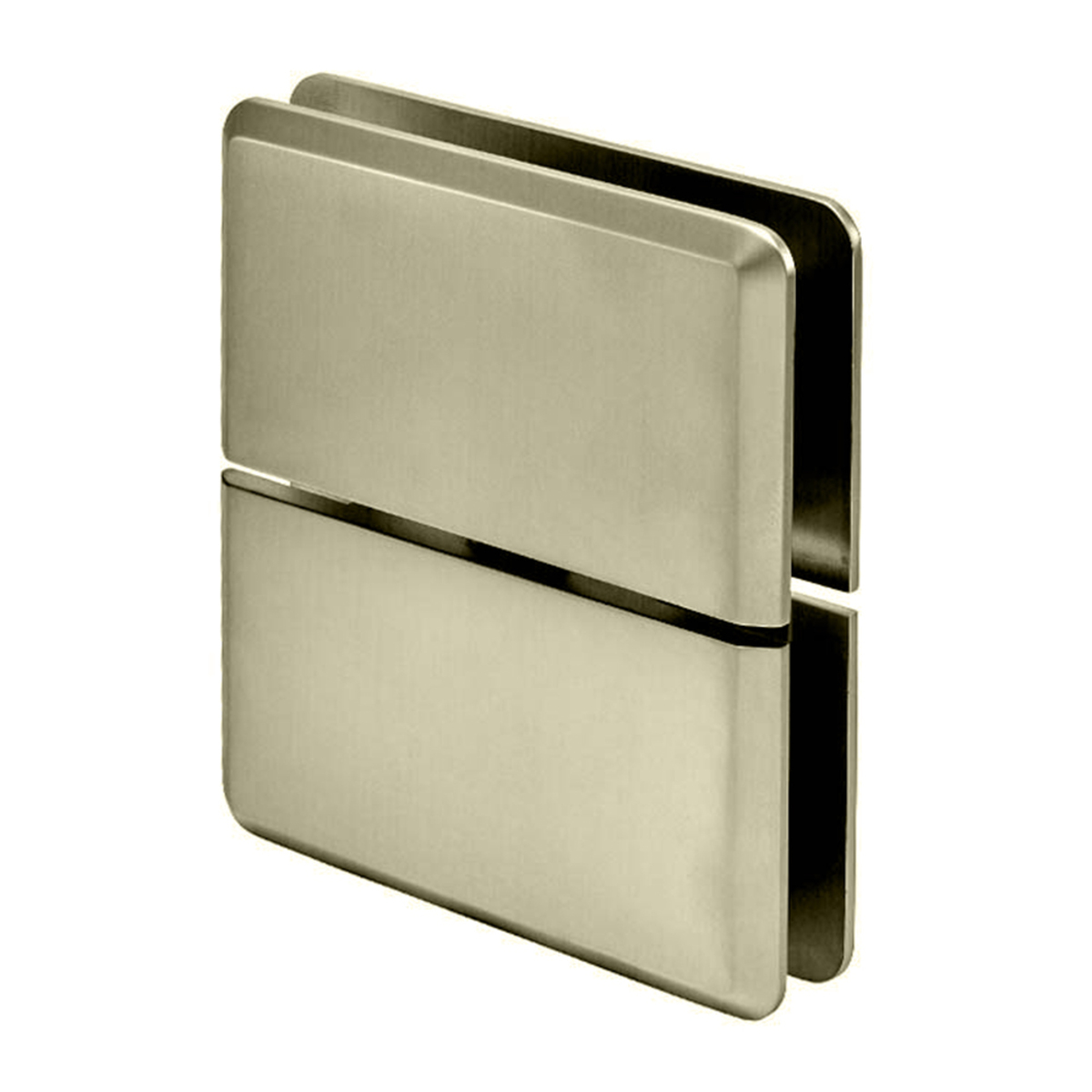

C.R. Laurence PPH02BBRZ Brushed Bronze Prima 02 Series Glass-To-Glass Mount Hinge offers a perfect blend of functionality and elegance, ideal for modern shower enclosures. Designed for use with 5/16" to 3/8" tempered safety glass, this hinge supports up to 100 lbs, making it a robust choice for your glass installations. Its innovative top and bottom mount design allows for greater visibility of the glass, reducing the need for multiple cut-outs compared to standard side mount options. Self-centering within 15 degrees of the closed position, this hinge features four springs for maximum retention strength. Optional 5-degree pivot pin sets are available, allowing flexibility in adjusting the closing position of the door. The solid brass construction ensures durability, while the brushed bronze finish adds a sophisticated touch to any space. With a maximum door width of 31 inches and a height of 4-1/8 inches, this hinge is versatile for various enclosure types-corner, niche, or tailor-made solutions. It includes gaskets, screws, and glass fabrication dimensions for easy installation. Backed by a 3-year warranty, the PPH02BBRZ is a reliable choice for both residential and hotel shower applications, ensuring a stylish and functional glass entryway.

Brushed Bronze Prima 02 Series Glass-To-Glass Mount Hinge

• Glass-to-Fixed Transom Mount
• Self-Centering with Optional 5 Degree Pivot Pin Set
• Available in Several Beautiful Finishes
• 3 Year Warranty
• Use Monolithic Tempered Glass
• U.S. Patent 5,297,313

CRL Prima Series Pivot Hinges are designed for use with 5/16" to 3/8" (8 to 10 mm) tempered safety glass, and provide an extra number of application possibilities. Some advantages of pivot type hinges include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections. Prima Series Pivot Hinges are self-centering, with four springs for maximum retention strength. Optional Cat. No. P1VP1N 5 degree Pre-Set Pivot Pin Sets may be ordered separately. In addition, Pre-Set 5 degree Hinge models are available. The PPH01 Model is adaptable to our Deluxe Header System for shower enclosures not going all the way up to the ceiling. Our PPH06 Model is only compatible with our EZ-Adjust Header System. It includes an adaptor used with the EZ-Adjust Header System.


Optional 5 degree Pivot Pin set (For Prima, Cardiff, Rondo, and Shell Series): Optional 5 degree Pivot Pin Sets are available when you want to alter the closing position of the door by 5 degree. These Pivot Pins may be inserted prior to installation, or retrofitted after the installation is complete. Sold as a set: One for the top, and one for the bottom. Not included with hinge purchase. Pre-Set 5 degree Hinge models are available from stock.

Using two hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum width of 31" (787 mm).

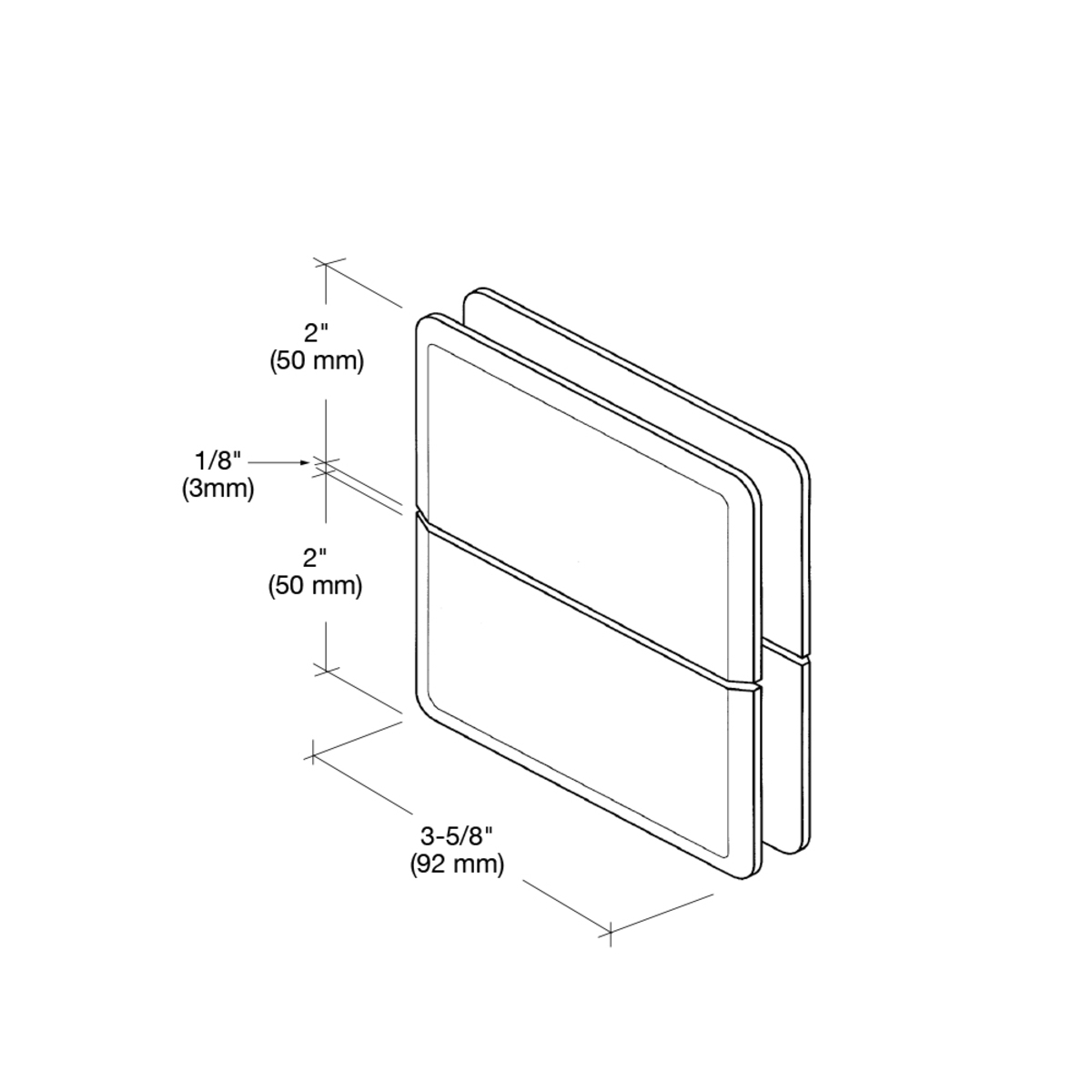

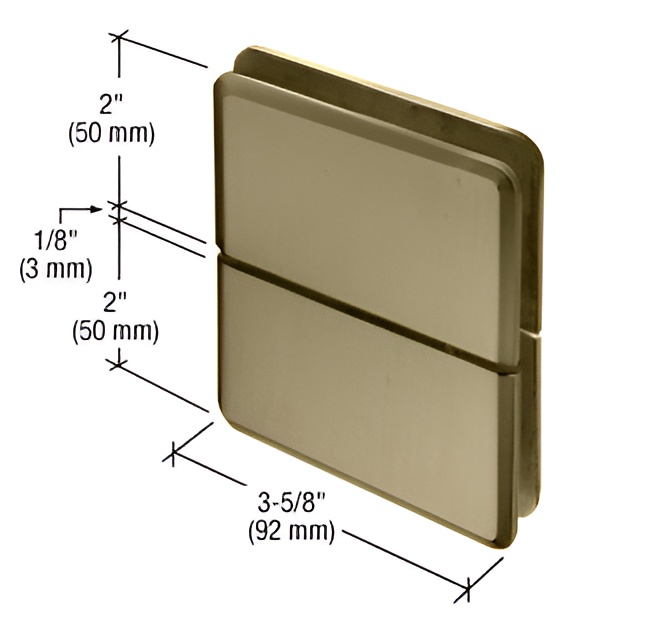

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Special Features: Top and Bottom Mount design allows more glass to show. Use of these hinges will reduce quantity of cut-outs required when compared to standard side mount glass-to-glass hinges. Cat. No. PPH01 can be mounted floor and ceiling, or floor and header.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required (PPH135 Model also requires two holes; PPH07 Model requires Cut-Out for Hinge and Hole for Clamp).
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
This hinge series is patented (Patent No. 5,297,313).

Custom finishes are available on request. Contact the CRL Technical Sales Department.


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
