CRL PPH03BN Brushed Nickel Prima 03 Series Wall Mount Hinge

CRL PPH03BN Brushed Nickel Prima 03 Series Wall Mount Hinge

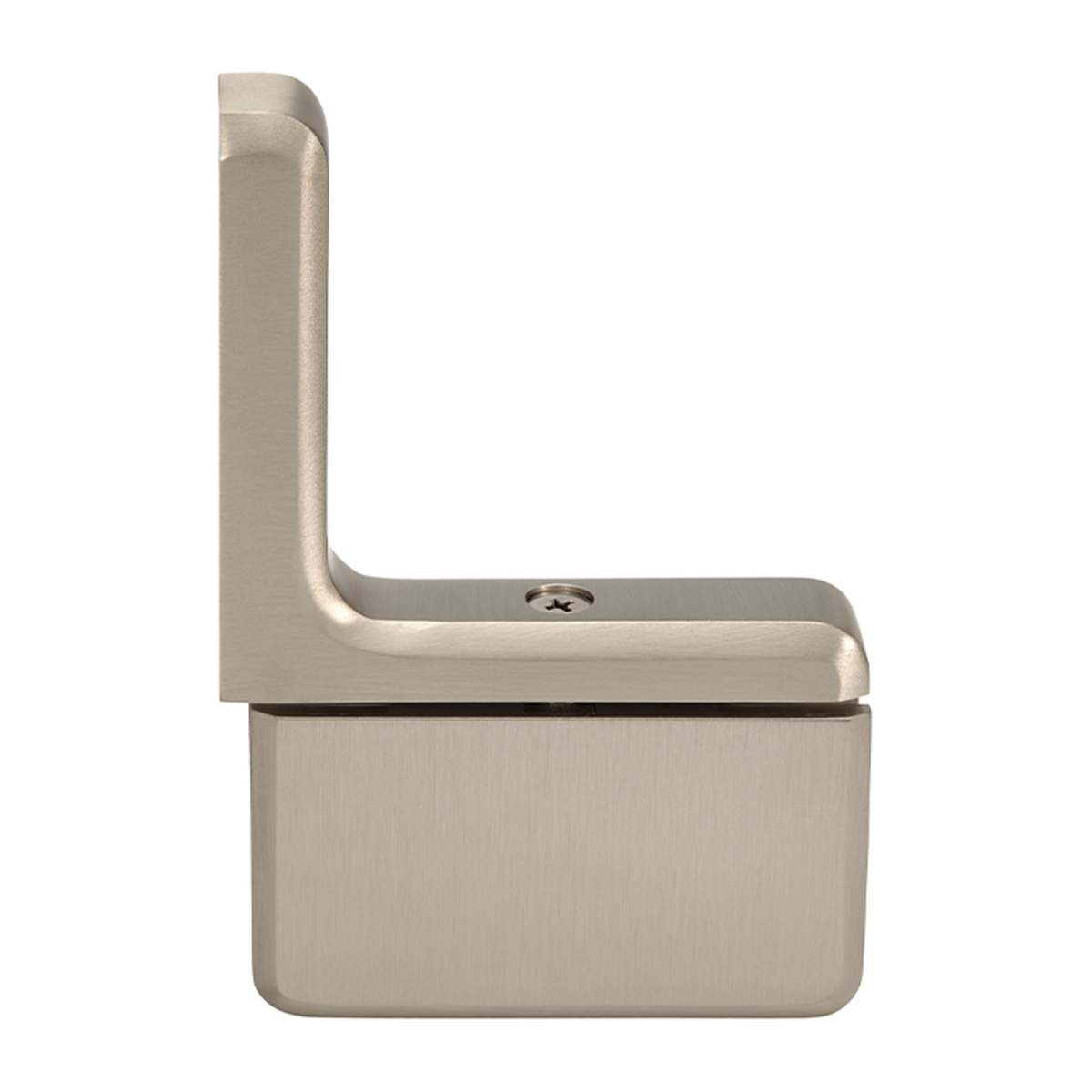

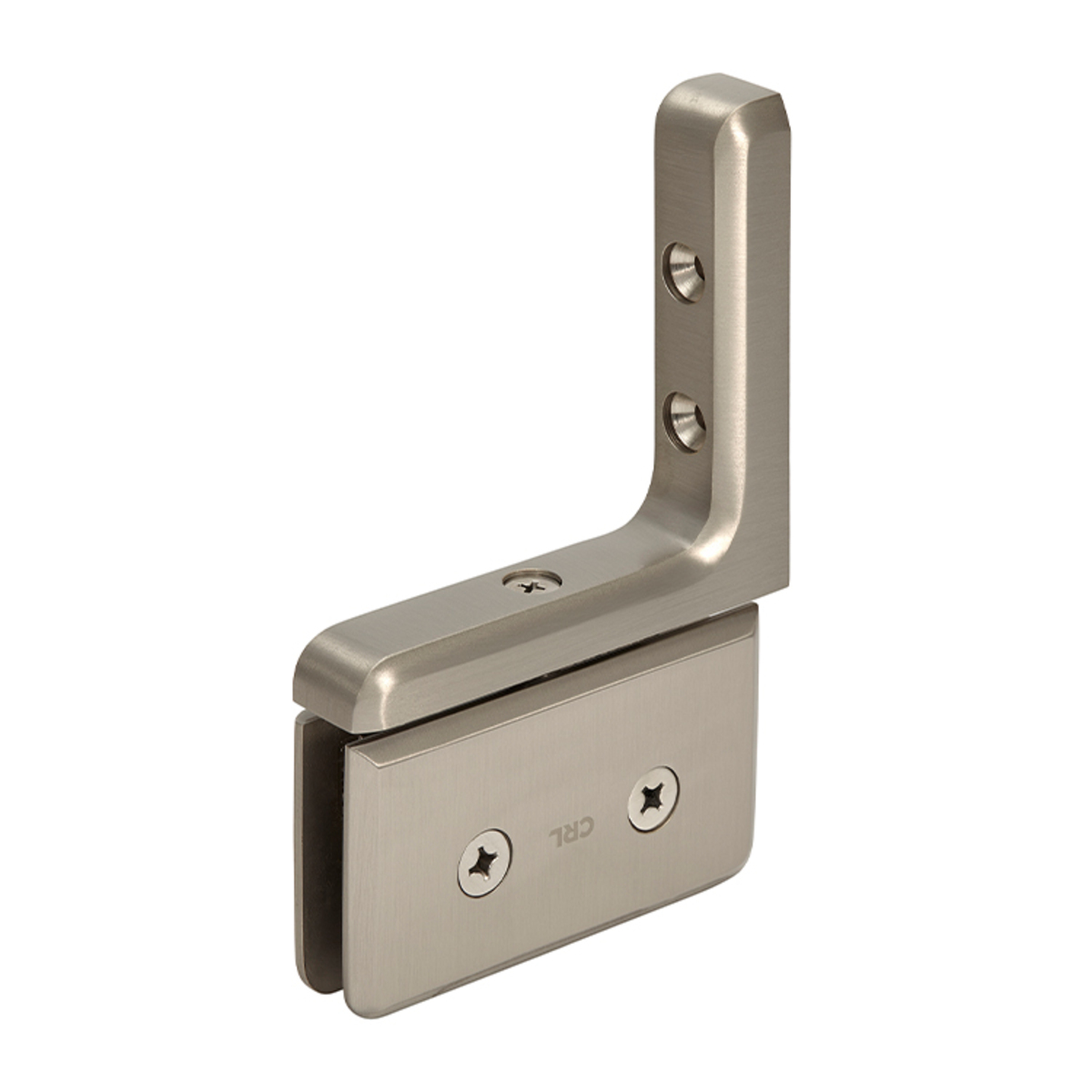

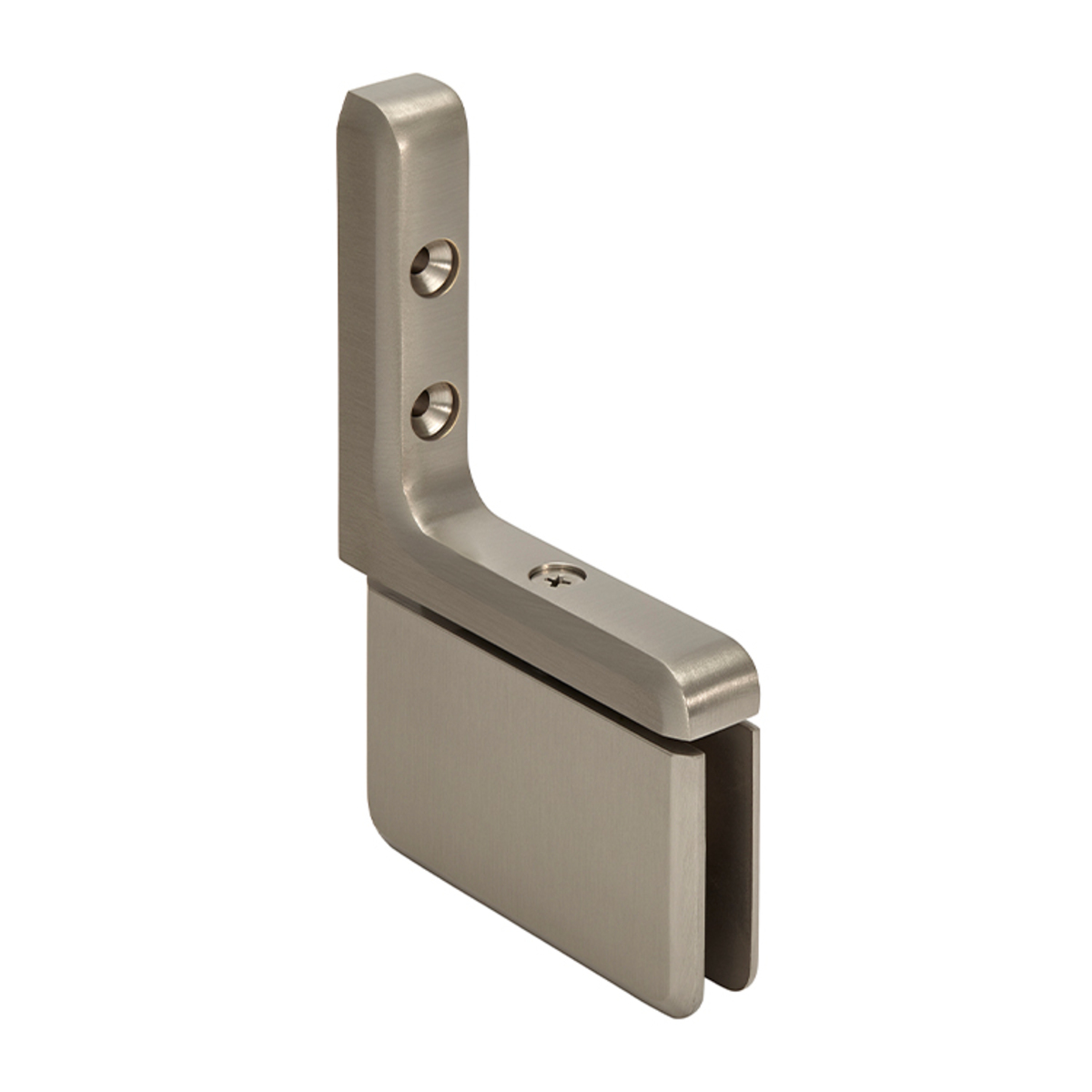

C.R. Laurence PPH03BN Brushed Nickel Prima 03 Series Wall Mount Hinge brings sophistication and functionality to your glass installations. Engineered for use with 5/16" to 3/8" tempered safety glass, this hinge is a perfect choice for residential and commercial shower enclosures. Its innovative L-bracket design ensures a secure wall mount while allowing for an unobstructed view of the glass. This self-centering hinge is equipped with four springs, providing maximum retention strength for doors weighing up to 100 lbs. (45 kg) and a maximum width of 31" (787 mm). The option to utilize an additional 5-degree pivot pin set allows for customizable closing positions, accommodating various design preferences. Available in a stunning brushed nickel finish, the PPH03BN adds a modern touch to any space. Crafted from solid brass, the hinge features full rotation and is field reversible, making it versatile for different applications. Installation is straightforward, with included gaskets and screws, while reducing the number of cut-outs compared to standard side mount hinges. Backed by a 3-year warranty and U.S. Patent 5,297,313, this hinge exemplifies quality and durability for your glazing projects. For tailored solutions, custom finishes are available upon request.

Brushed Nickel Prima 03 Series Wall Mount Hinge

• L-Bracket Wall Mount
• Self-Centering with Optional 5 Degree Pivot Pin Set
• Available in Several Beautiful Finishes
• 3 Year Warranty
• Use Monolithic Tempered Glass
• U.S. Patent 5,297,313

CRL Prima Series Pivot Hinges are designed for use with 5/16" to 3/8" (8 to 10 mm) tempered safety glass, and provide an extra number of application possibilities. Some advantages of pivot type hinges include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections. Prima Series Pivot Hinges are self-centering, with four springs for maximum retention strength. Optional Cat. No. P1VP1N 5 degree Pre-Set Pivot Pin Sets may be ordered separately. In addition, Pre-Set 5 degree Hinge models are available. The PPH01 Model is adaptable to our Deluxe Header System for shower enclosures not going all the way up to the ceiling. Our PPH06 Model is only compatible with our EZ-Adjust Header System. It includes an adaptor used with the EZ-Adjust Header System.


Optional 5 degree Pivot Pin set (For Prima, Cardiff, Rondo, and Shell Series): Optional 5 degree Pivot Pin Sets are available when you want to alter the closing position of the door by 5 degree. These Pivot Pins may be inserted prior to installation, or retrofitted after the installation is complete. Sold as a set: One for the top, and one for the bottom. Not included with hinge purchase. Pre-Set 5 degree Hinge models are available from stock.

Using two hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum width of 31" (787 mm).

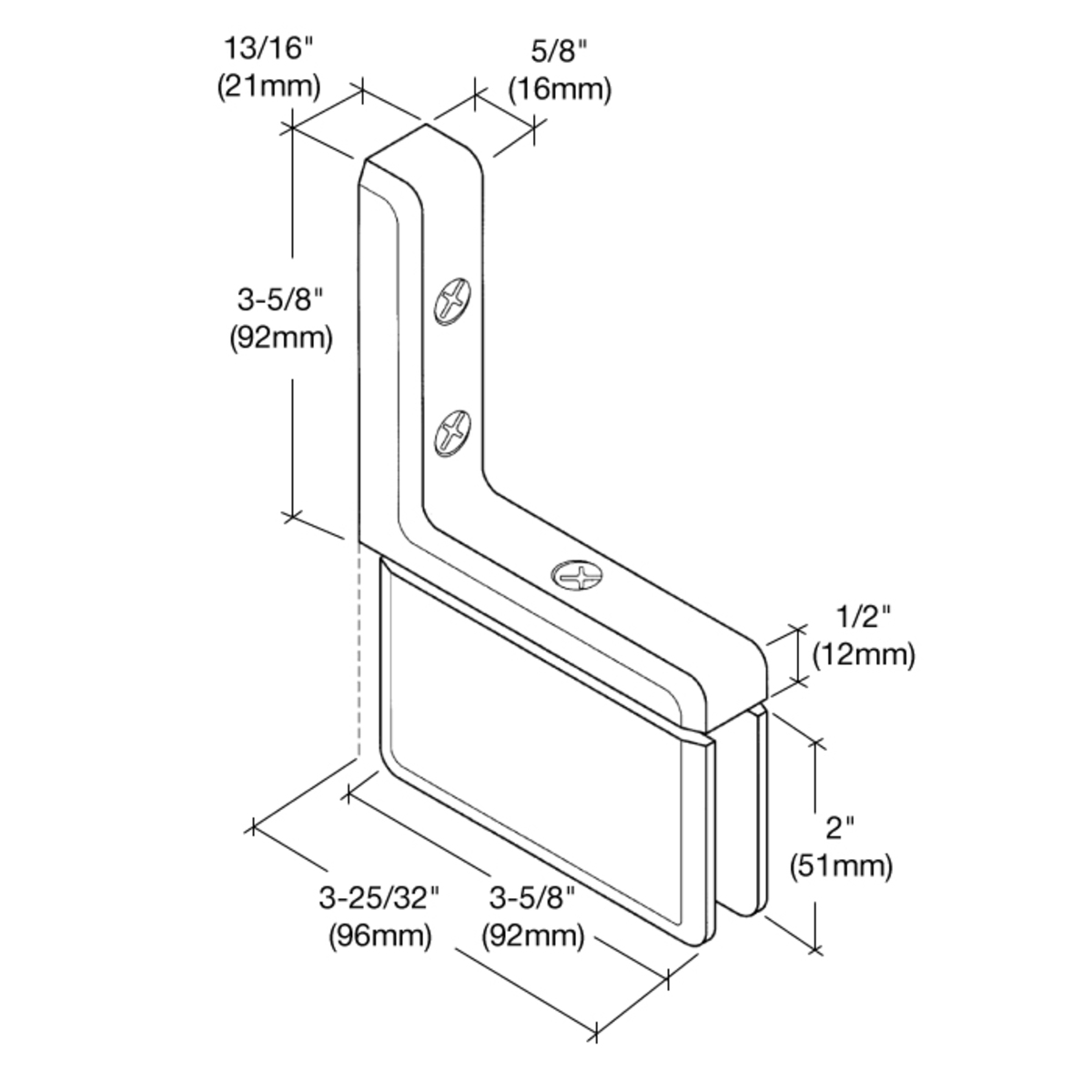

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Special Features: Top and Bottom Mount design allows more glass to show. Use of these hinges will reduce quantity of cut-outs required when compared to standard side mount glass-to-glass hinges. Cat. No. PPH01 can be mounted floor and ceiling, or floor and header.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required (PPH135 Model also requires two holes; PPH07 Model requires Cut-Out for Hinge and Hole for Clamp).
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
This hinge series is patented (Patent No. 5,297,313).

Custom finishes are available on request. Contact the CRL Technical Sales Department.


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
