CRL PPH05RMBL Matte Black Prima 05 Right Hand Offset Mount Hinge

CRL PPH05RMBL Matte Black Prima 05 Right Hand Offset Mount Hinge

C.R. Laurence PPH05RMBL Matte Black Prima 05 Series Right Hand Offset Mount Hinge offers a sophisticated solution for modern shower enclosures. Designed for 5/16" to 3/8" (8 mm to 10 mm) tempered safety glass, this hinge features an offset bracket wall mount, specifically engineered for right-hand mounting when viewed from outside the shower. Its self-centering design, enhanced by four robust springs, ensures smooth operation and longevity. This hinge is not only functional but also aesthetically pleasing, available in a variety of beautiful finishes, including a sleek matte black that complements contemporary decor. It supports doors weighing up to 100 lbs. (45 kg) and with a maximum width of 31" (787 mm), making it highly versatile for different applications. The PPH05RMBL hinge is patented (U.S. Patent 5,297,313) and is perfect for reducing the number of cutouts required compared to standard side-mount hinges. The top and bottom mount design allows for greater visibility of the glass, giving your shower a more open feel. Each purchase includes gaskets, screws, and glass fabrication dimensions, ensuring a seamless installation. With a three-year warranty, you can trust in the quality and durability of this exceptional product.

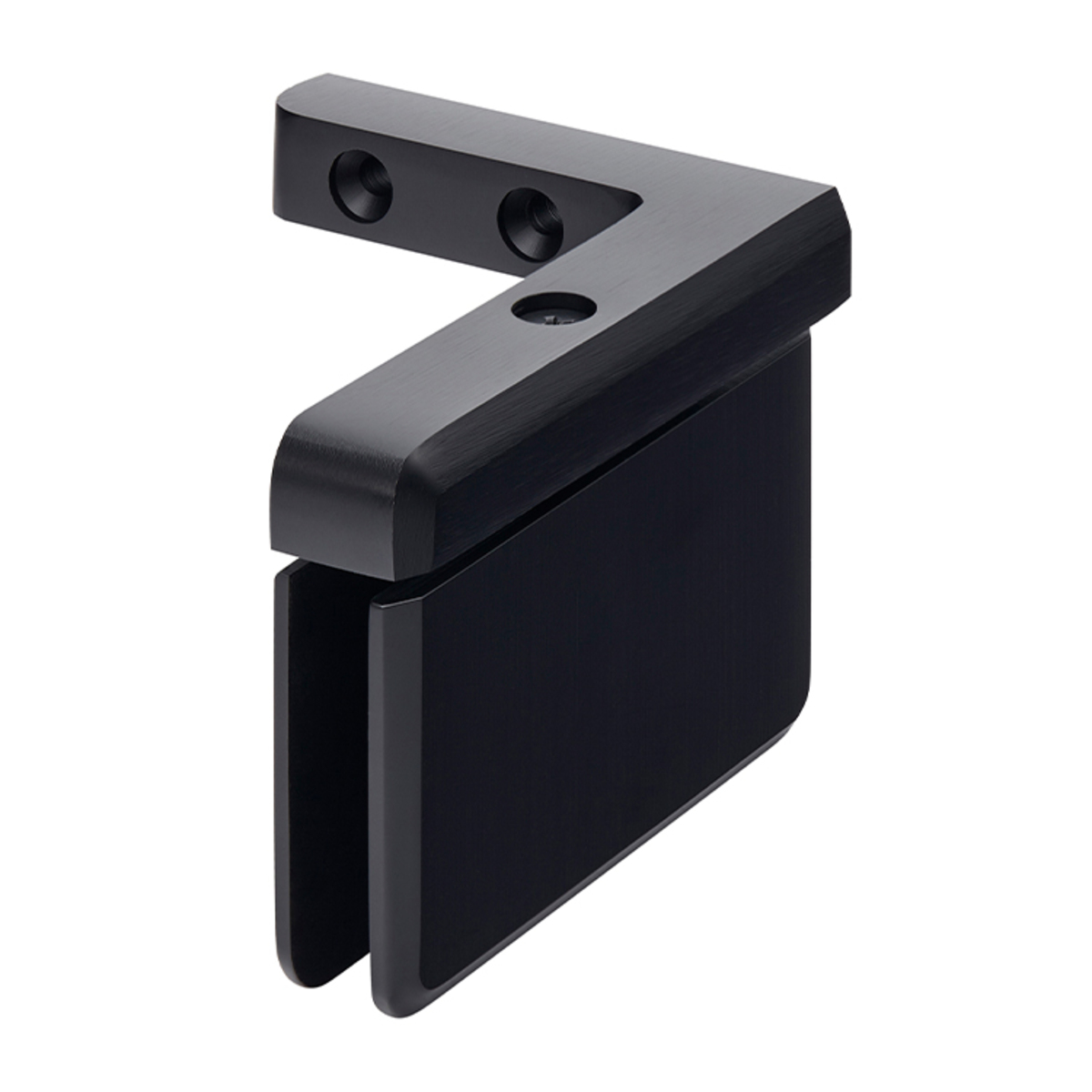

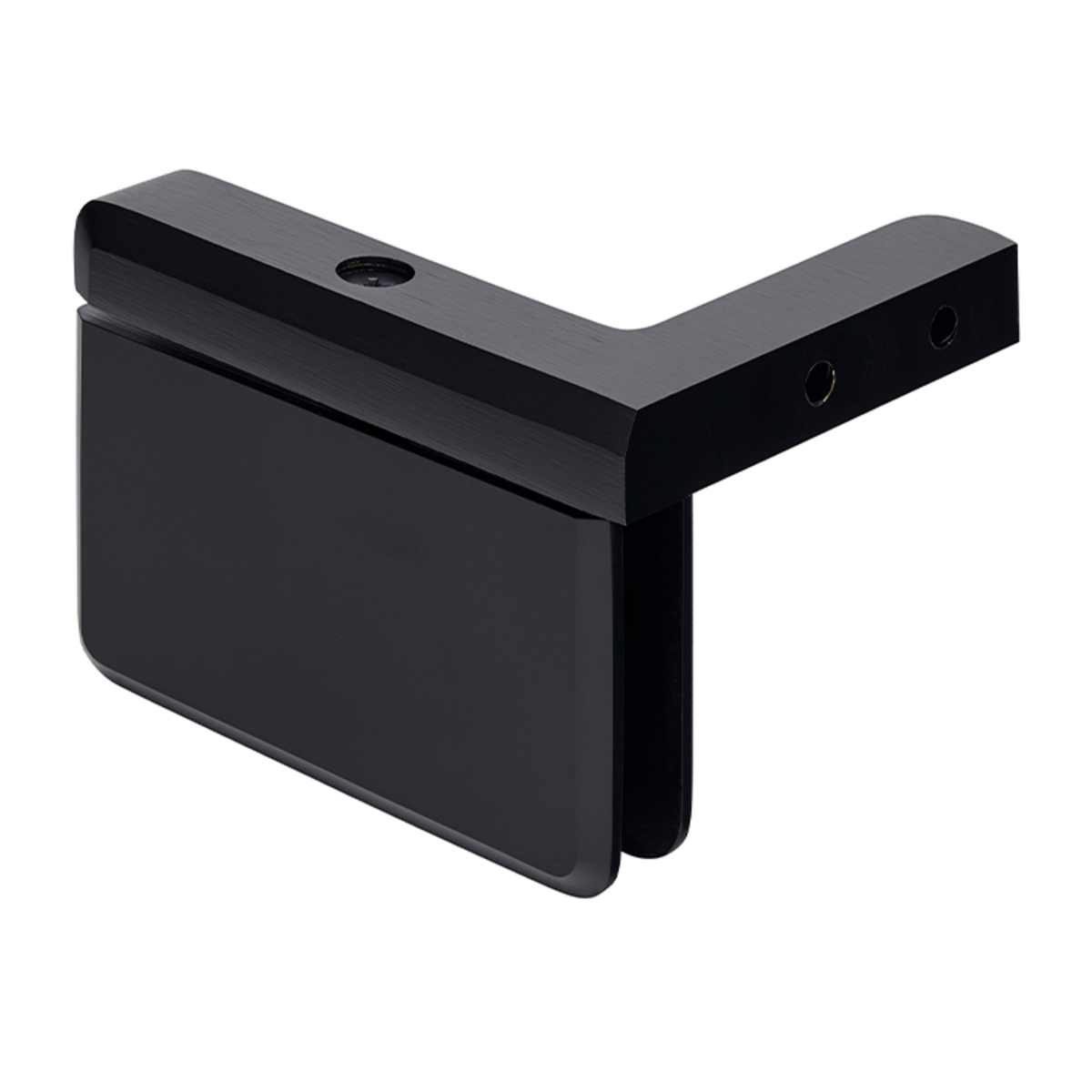

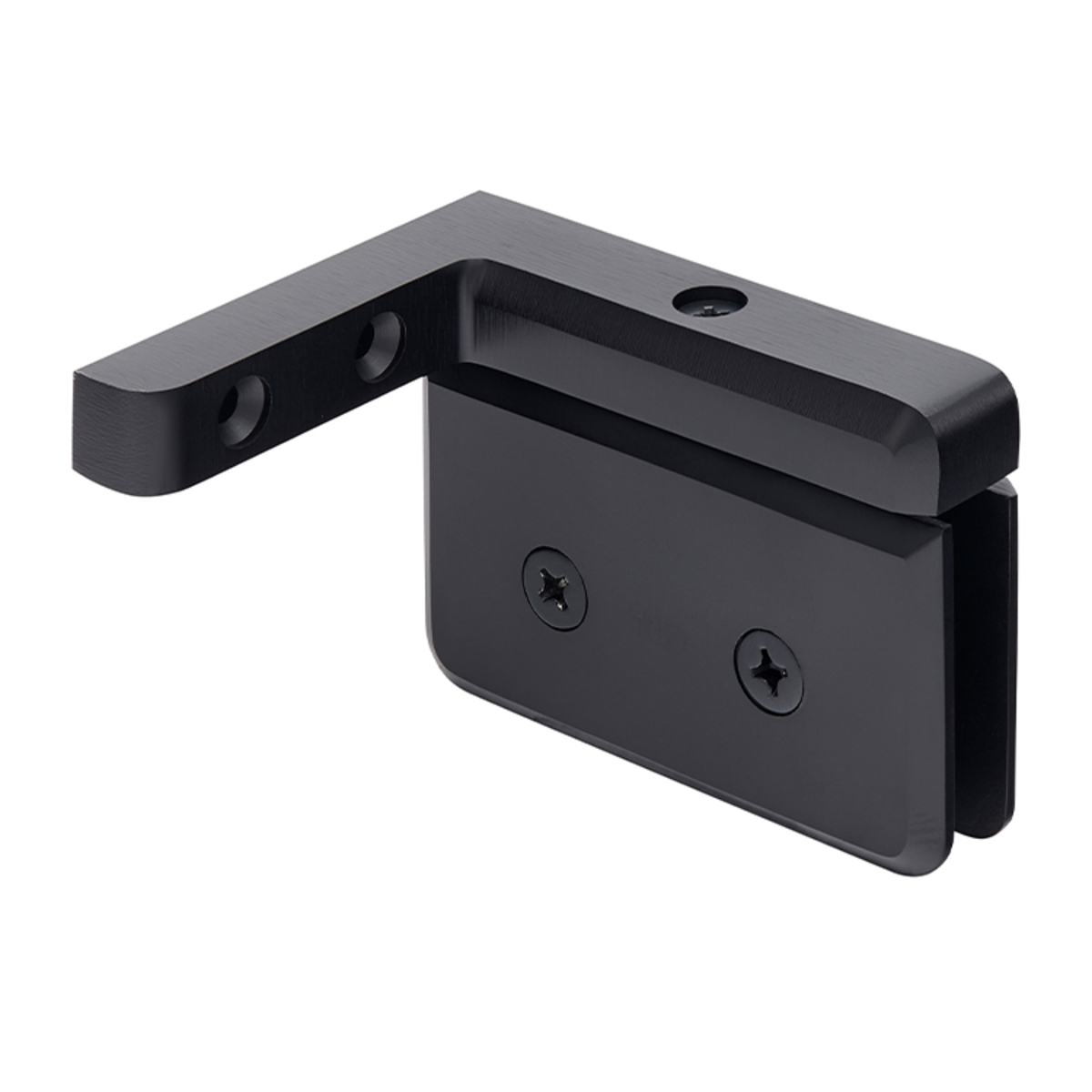

Matte Black Prima 05 Series Right Hand Offset Mount Hinge

• Offset Bracket Wall Mount (Right Hand Mount When Viewed From Outside of Shower)
• Self-Centering with Optional 5 Degree Pivot Pin Set
• Available in Several Beautiful Finishes
• 3 Year Warranty
• Use Monolithic Tempered Glass
• U.S. Patent 5,297,313

CRL Prima Series Pivot Hinges are designed for use with 5/16" to 3/8" (8 to 10 mm) tempered safety glass, and provide an extra number of application possibilities. Some advantages of pivot type hinges include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections. Prima Series Pivot Hinges are self-centering, with four springs for maximum retention strength. Optional Cat. No. P1VP1N 5 degree Pre-Set Pivot Pin Sets may be ordered separately. In addition, Pre-Set 5 degree Hinge models are available. The PPH01 Model is adaptable to our Deluxe Header System for shower enclosures not going all the way up to the ceiling. Our PPH06 Model is only compatible with our EZ-Adjust Header System. It includes an adaptor used with the EZ-Adjust Header System.


Optional 5 degree Pivot Pin set (For Prima, Cardiff, Rondo, and Shell Series): Optional 5 degree Pivot Pin Sets are available when you want to alter the closing position of the door by 5 degree. These Pivot Pins may be inserted prior to installation, or retrofitted after the installation is complete. Sold as a set: One for the top, and one for the bottom. Not included with hinge purchase. Pre-Set 5 degree Hinge models are available from stock.

Using two hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Special Features: Top and Bottom Mount design allows more glass to show. Use of these hinges will reduce quantity of cut-outs required when compared to standard side mount glass-to-glass hinges. Cat. No. PPH01 can be mounted floor and ceiling, or floor and header.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required (PPH135 Model also requires two holes; PPH07 Model requires Cut-Out for Hinge and Hole for Clamp).
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
This hinge series is patented (Patent No. 5,297,313).

Custom finishes are available on request. Contact the CRL Technical Sales Department.


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
