CRL PPH060RB Oil Rubbed Bronze Prima 06 EZ-Adjust Top Mount Hinge

CRL PPH060RB Oil Rubbed Bronze Prima 06 EZ-Adjust Top Mount Hinge

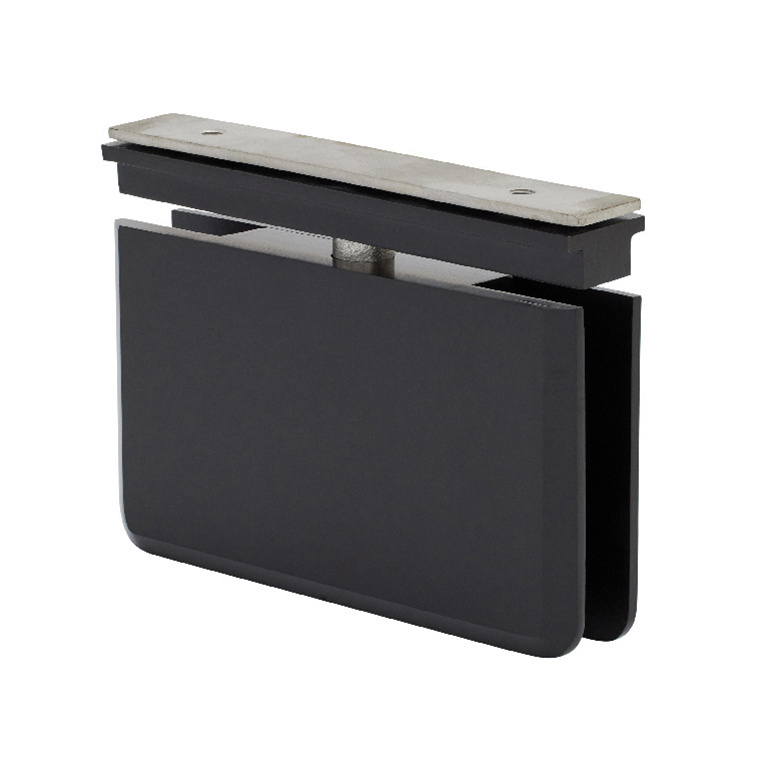

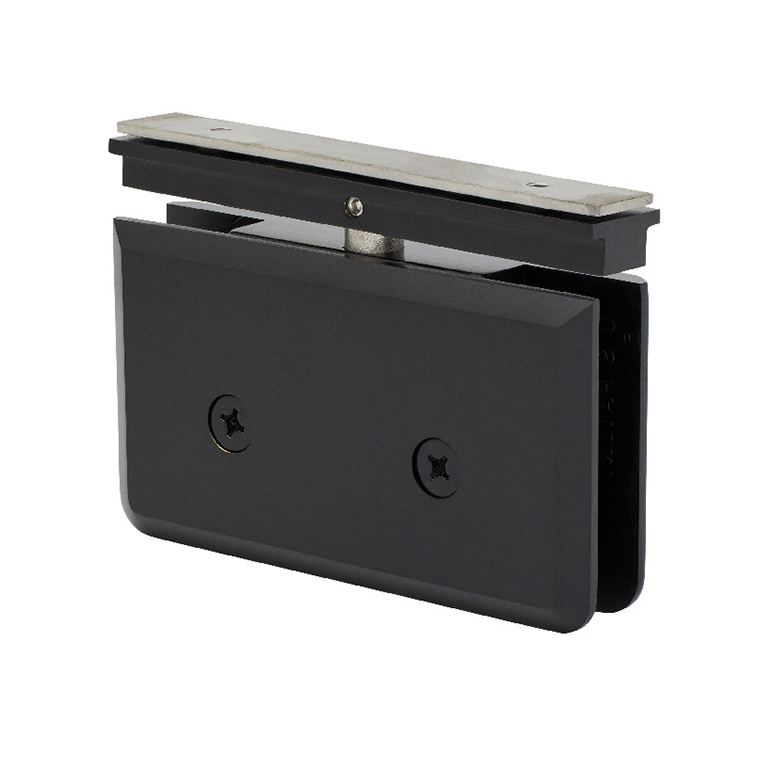

C.R. Laurence PPH060RB Oil Rubbed Bronze Prima 06 Series EZ-Adjust Top Mount Hinge is engineered for superior performance with 5/16" to 3/8" (8 to 10 mm) tempered safety glass. This hinge is designed exclusively for use with the EZ-Adjust Header System, making it an ideal choice for modern shower enclosures. With a robust solid brass construction, it not only delivers durability but also exudes elegance in its oil rubbed bronze finish. One of the standout features of the Prima Series is its top mount design, which allows for more visible glass and fewer cut-outs compared to standard hinges. It supports a maximum door weight of 100 lbs. (45 kg) and accommodates door widths up to 31" (787 mm), providing flexibility in design. The self-centering mechanism ensures that the door closes smoothly within 15 degrees of the closed position, enhancing usability. Each hinge comes with essential components, including gaskets and screws, facilitating straightforward installation. Backed by a 3-year warranty and patented technology (U.S. Patent 5,297,313), the PPH060RB hinge stands out as a reliable choice for both residential and hotel shower applications. Custom finishes are available upon request, ensuring that your design vision can be fully realized.

Oil Rubbed Bronze Prima 06 Series EZ-Adjust Top Mount Hinge

• Top Mount (Compatible Only with EZ-Adjust Header)
• Use Cat. No. PPH01 as Bottom Hinge
• Available in Several Beautiful Finishes
• 3 Year Warranty
• Use Monolithic Tempered Glass
• U.S. Patent 5,297,313

CRL Prima Series Pivot Hinges are designed for use with 5/16" to 3/8" (8 to 10 mm) tempered safety glass, and provide an extra number of application possibilities. Some advantages of pivot type hinges include the fact that they carry the majority of the weight on the bottom, and have the ability to be inset from the wall, enabling clearance for towel bars and other projections. Prima Series Pivot Hinges are self-centering, with four springs for maximum retention strength. The PPH01 Model is adaptable to our Deluxe Header System for shower enclosures not going all the way up to the ceiling. Our PPH06 Model is only compatible with our EZ-Adjust Header System. It includes an adaptor used with the EZ-Adjust Header System.


Using two hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum width of 31" (787 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Special Features: Top and Bottom Mount design allows more glass to show. Use of these hinges will reduce quantity of cut-outs required when compared to standard side mount glass-to-glass hinges. Cat. No. PPH01 can be mounted floor and ceiling, or floor and header.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required (PPH135 Model also requires two holes; PPH07 Model requires Cut-Out for Hinge and Hole for Clamp).
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
This hinge series is patented (Patent No. 5,297,313).

Custom finishes are available on request. Contact the CRL Technical Sales Department.


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
