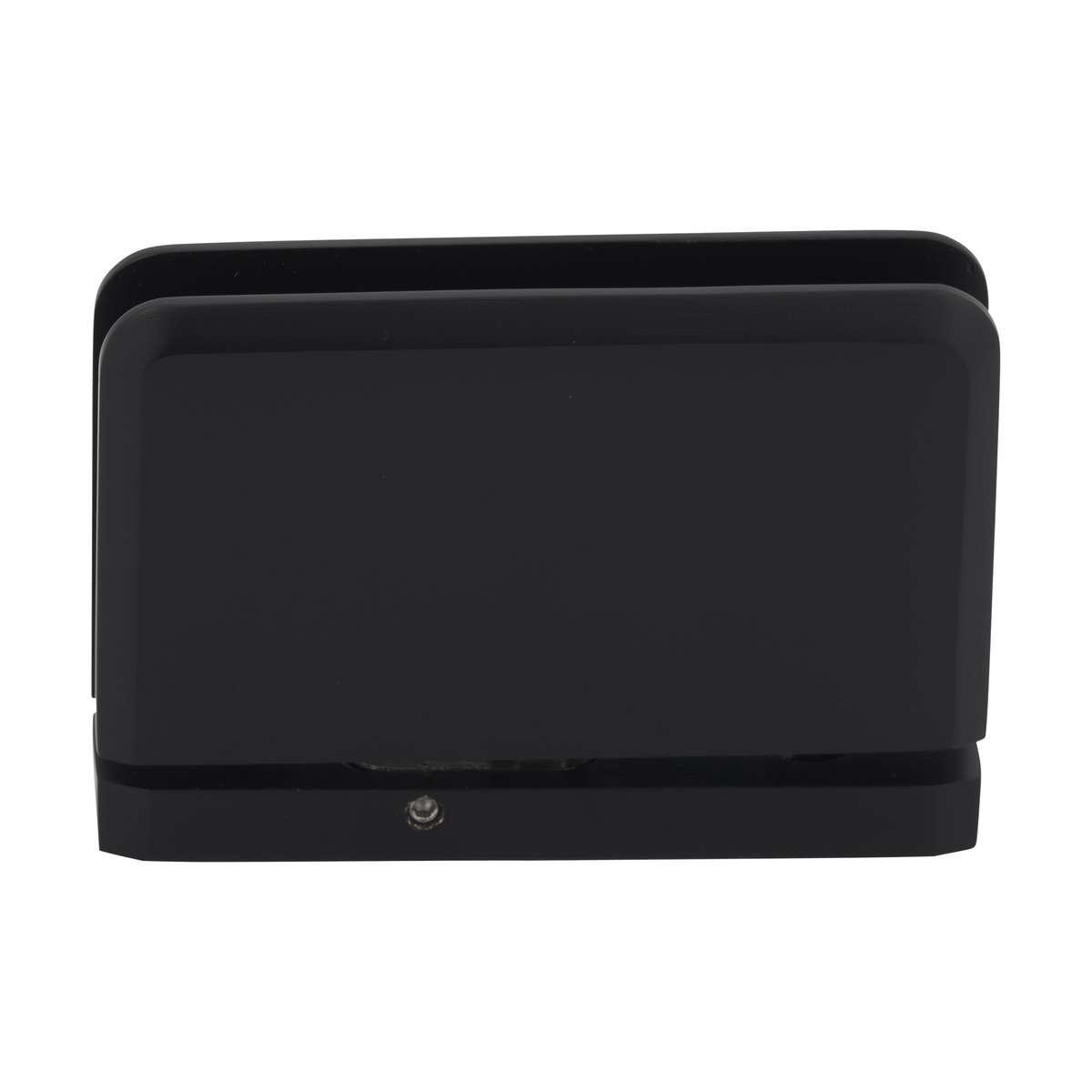

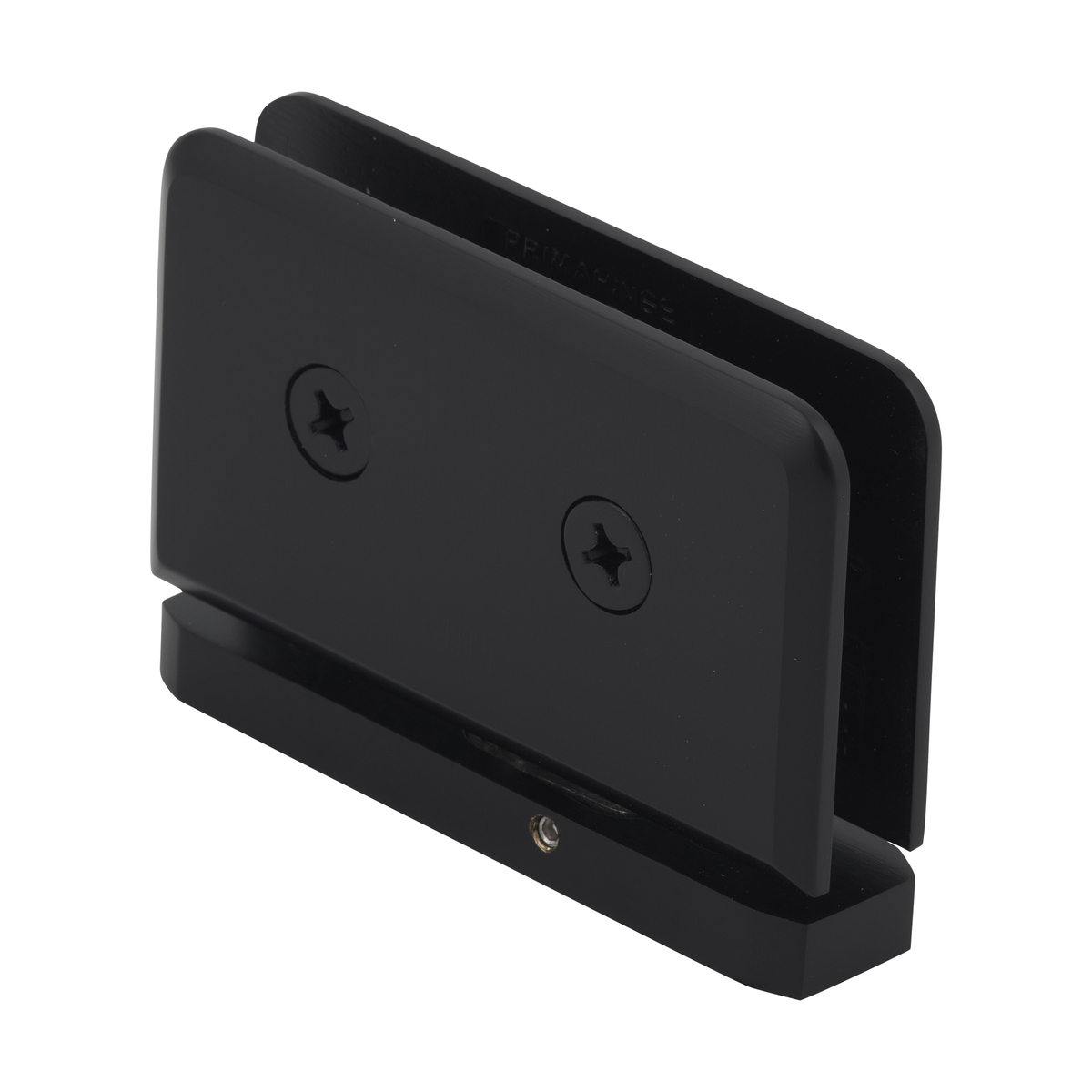

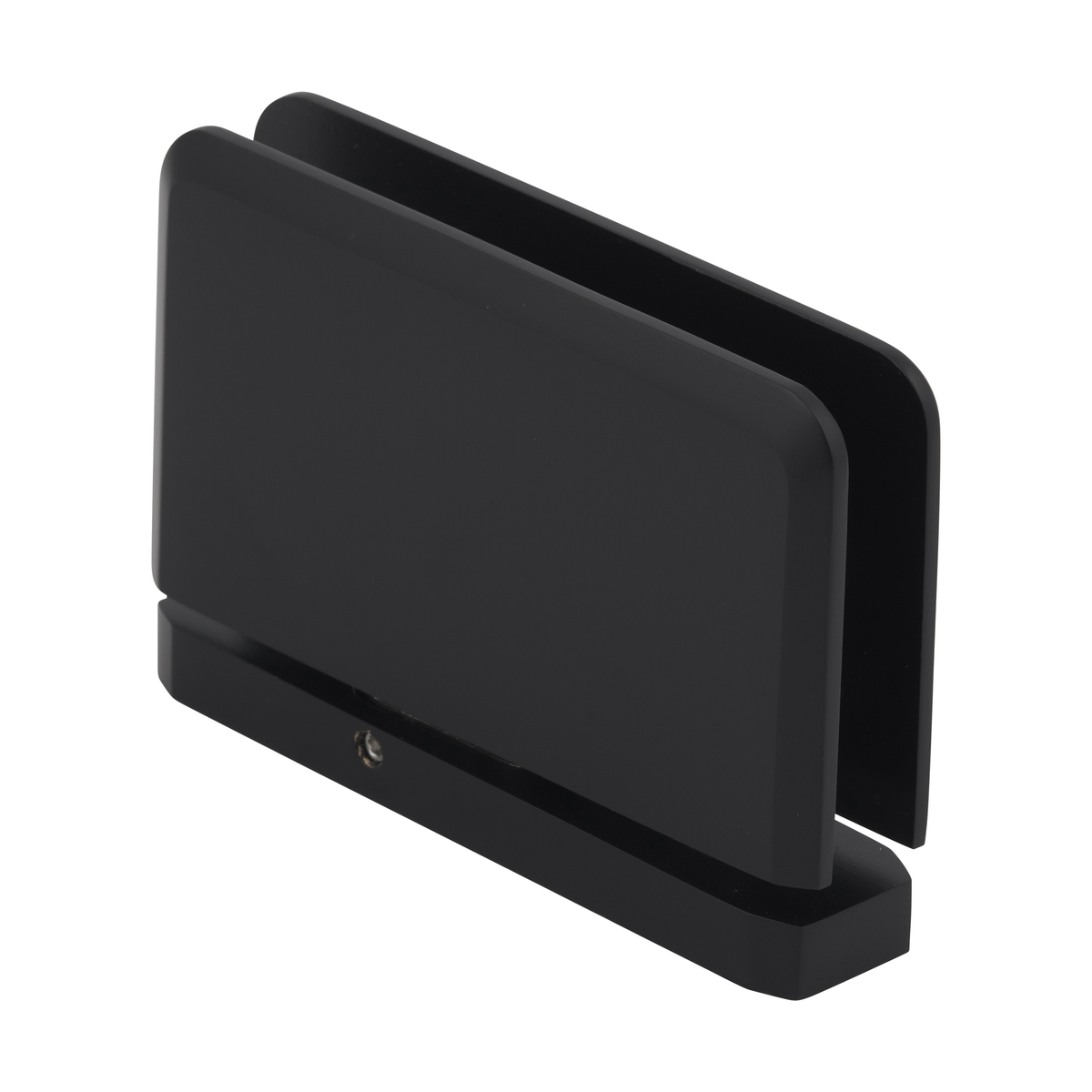

CRL PPH3010RB Oil Rubbed Bronze Adjustable Prima HingeC.R. Laurence PPH3010RB Oil Rubbed Bronze Adjustable Prima Series Hinge offers a seamless solution for enhancing the functionality of glass doors. Designed for use with monolithic tempered glass, this hinge accommodates glass thicknesses ranging from 5/16" to 3/8" (8 mm to 10 mm) and can support doors weighing up to 100 lbs. (45 kg) with a maximum width of 31" (787 mm). One of the standout features of the Prima Series Hinge is its adjustable design, allowing for a 5-degree in-and-out adjustment to achieve the perfect door alignment post-installation. This is easily done using the included 3 mm Allen wrench to loosen and tighten the base plate screws. Additionally, the hinge self-centers within 15 degrees of the closed position, ensuring a consistent and reliable closing mechanism. Constructed from solid brass, the PPH3010RB hinge not only boasts durability but also enhances aesthetic appeal with its elegant oil-rubbed bronze finish. This hinge is designed specifically for corner, niche, and tailor-made solutions, making it an ideal choice for both residential and hospitality applications. Backed by a three-year warranty, this product is a trusted choice for building professionals and discerning homeowners alike.
Oil Rubbed Bronze Adjustable Prima Series Hinge
- Not Compatible with Header Systems
- Self-Centering When within 15 Degree of Closed Position
- Three Year Warranty
- Use Monolithic Tempered Glass
The

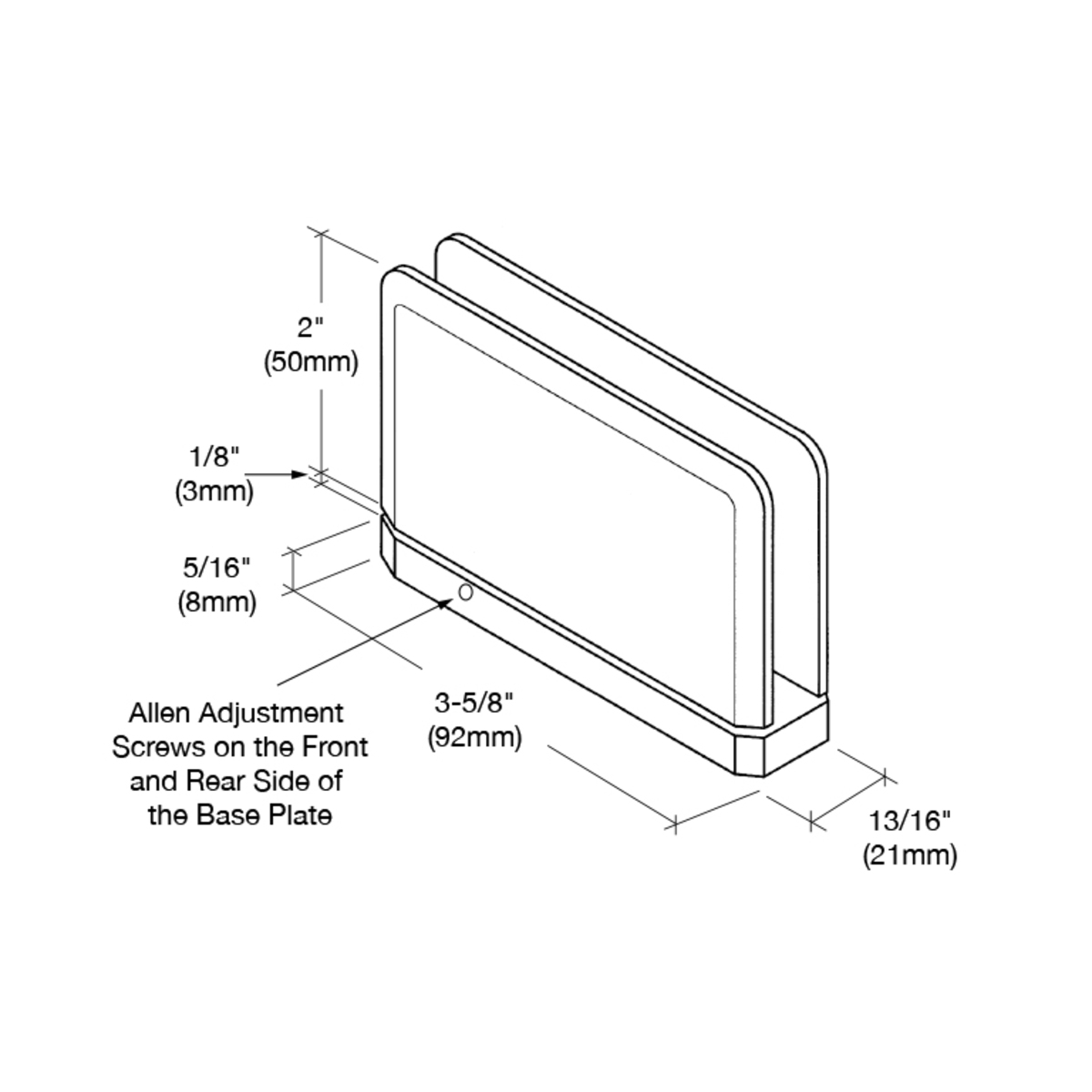

CRL Adjustable Prima Series makes mounting top and bottom hinges easier than ever. Adjusting up to 5 degree both in and out to the desired door alignment can be done after the initial installation. The small Allen screws on the front and rear of the base plate are loosened using the provided 3 mm Allen Wrench, allowing positioning of the door to the desired closing position. Tightening the Allen screws ensures that the door closes to the same position every time.
NOTE: Not compatible with Header Systems.
Using two hinges with 5/16" to 3/8" glass (8 to 10 mm) the hinge will hold up to 100 lbs. (45 kg) with a maximum width of 31" (787 mm).
SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-Centering when within 15 degree of closed position.
Cut-Out Required
Includes: Gaskets, Screws, 3 mm Allen Wrench, and Glass Fabrication Dimensions
This hinge series is patented (Patent No. 5,297,313).
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Adjustable: Yes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Design Style: Beveled
Edge Profile: Beveled
Enclosure Type: Corner, Niche, Tailor Made Solutions
Finish/ Color:: Oil Rubbed Bronze
Glazing Thickness: 5/16 in. To 3/8 in. (8 mm To 10 mm)
Height: 2 in. (51 mm)
Material: Brass
Maximum Clamping Screw Torque: 60-70 lbf.in (677.9-791 cN.m)
Maximum Door Weight: 100 lbs. (45.4 kg)
Maximum Door Weight - 2 Hinges: 100
Maximum Door Width: 31 in. (787 mm)
Mounting Type: Head & Sill Mount
Opening Style: Pivot(floor)
Self- Centering: Yes
Series: Prima
Shipping Limitations: None
Width: 3-5/8 in. (92 mm)
