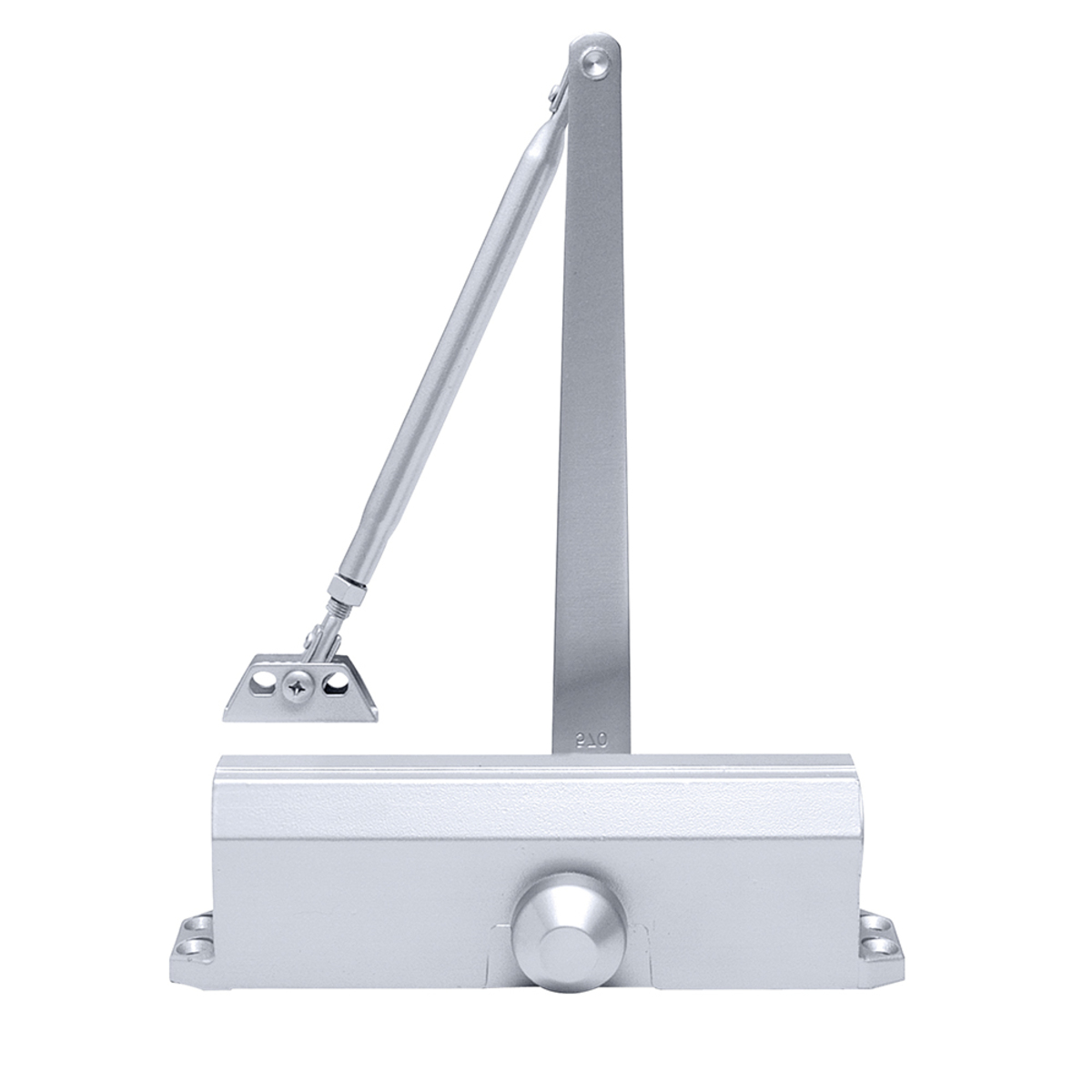

CRL PR40A Aluminum Adjustable Spring Door Closer, Size 1-4, Surface Mount

CRL PR40A Aluminum Adjustable Spring Door Closer, Size 1-4, Surface Mount

C.R. Laurence PR40A Aluminum Adjustable Spring Power Size 1 to 4 Surface Mount Door Closer is engineered for high-traffic environments, making it an ideal choice for public buildings, airports, and shopping centers. This door closer is ANSI A156.4 - Grade 1 certified, ensuring robust performance and durability. With an adjustable spring power range from size 1 to 4, it accommodates various door weights and sizes while allowing for independent adjustment of closing and latching speeds. This model features delayed action closing, facilitating easier access for individuals with disabilities, in compliance with A.D.A. regulations. The adjustable backcheck protects both the closer and the surrounding surfaces from damage caused by forceful door swings. The PR40A boasts a compact design with a universal mounting hole template, making it suitable for both new installations and retrofits. Each closer comes with parallel arm brackets and all necessary mounting hardware, streamlining installation for regular, top jamb, or parallel arm applications. Additionally, optional accessories such as Drop Plates and Hold Open Arms enhance its versatility for special installations. UL Listed and backed by a ten-year warranty, the PR40A Aluminum Door Closer combines functionality and reliability, ensuring smooth operation in demanding settings.

Aluminum Adjustable Spring Power Size 1 to 4 Surface Mount Door Closer

• ANSI A156.4 - Grade 1
• Adjustable Spring Power Multi-Size Range 1 to 4
• Each PR40 Series Closer is Conveniently Packaged with Instructions
• Delayed Action Closing Model for Handicap Entrances
• UL Listed

When demanding closer specs are required, consider our PR40 Series Surface Mounted Door Closers. Recommended for high traffic areas, such as public buildings, airports, and shopping centers. Closing and latching speed controls are independently adjustable, and adjustable backcheck is a standard feature to prevent damage to the closer, door, and adjacent surface should the door be violently swung open due to wind or heavy pedestrian traffic.


The optional delayed action feature adjusts the time a door will remain open to facilitate ease of progress through the opening. This feature is particularly valuable in health care facilities, such as hospitals, nursing homes, and public buildings that require door closers to delay closing to comply with A.D.A. regulations.

PR40 Series Closers have a compact design closer body and share a common 9-1/16" x 3/4" (230 x 19 mm) mounting hole template, making it ideal for both new and retrofit applications. All PR40 Closers are UL Listed and warranted for ten years. Parallel Arm Brackets and mounting hardware is included with each closer permitting universal application for regular, top jamb or parallel arm applications. Optional accessories, such as Drop Plates and Hold Open Arms, are available for special installations.


Product Warning:

Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.

Resources

• Specifications Closer2.pdf
• Surface Closer Cross Reference Specifications
• Template CRL-PR40 series IN-DC-8710-CRL.pdf
