CRL PR40DU Dark Bronze Adjustable Spring Door Closer Size 1-4 Surface Mount

CRL PR40DU Dark Bronze Adjustable Spring Door Closer Size 1-4 Surface Mount

C.R. Laurence PR40DU Dark Bronze Adjustable Spring Power Size 1 to 4 Surface Mount Door Closer offers exceptional reliability and versatility for high-traffic environments. Designed to meet ANSI A156.4 Grade 1 standards, this door closer is suitable for applications in public buildings, airports, and shopping centers, where durability and performance are paramount. The adjustable spring power accommodates a range from size 1 to 4, allowing for customizable closing force tailored to specific door requirements. Featuring independently adjustable closing and latching speed controls, the PR40DU ensures a smooth and controlled operation. The added backcheck function protects both the closer and the door from damage during sudden openings. One of the standout features of this model is its delayed action closing, which is particularly beneficial in healthcare facilities and other settings that must adhere to A.D.A. regulations. This function allows the door to remain open for a designated time, facilitating ease of passage. The compact design and standard 9-1/16" x 3/4" mounting hole template make installation straightforward for both new and retrofit projects. Each closer comes with parallel arm brackets, mounting hardware, and comprehensive instructions, ensuring a hassle-free setup. With a ten-year warranty and UL listing, the PR40DU is a dependable choice for any professional-grade application.

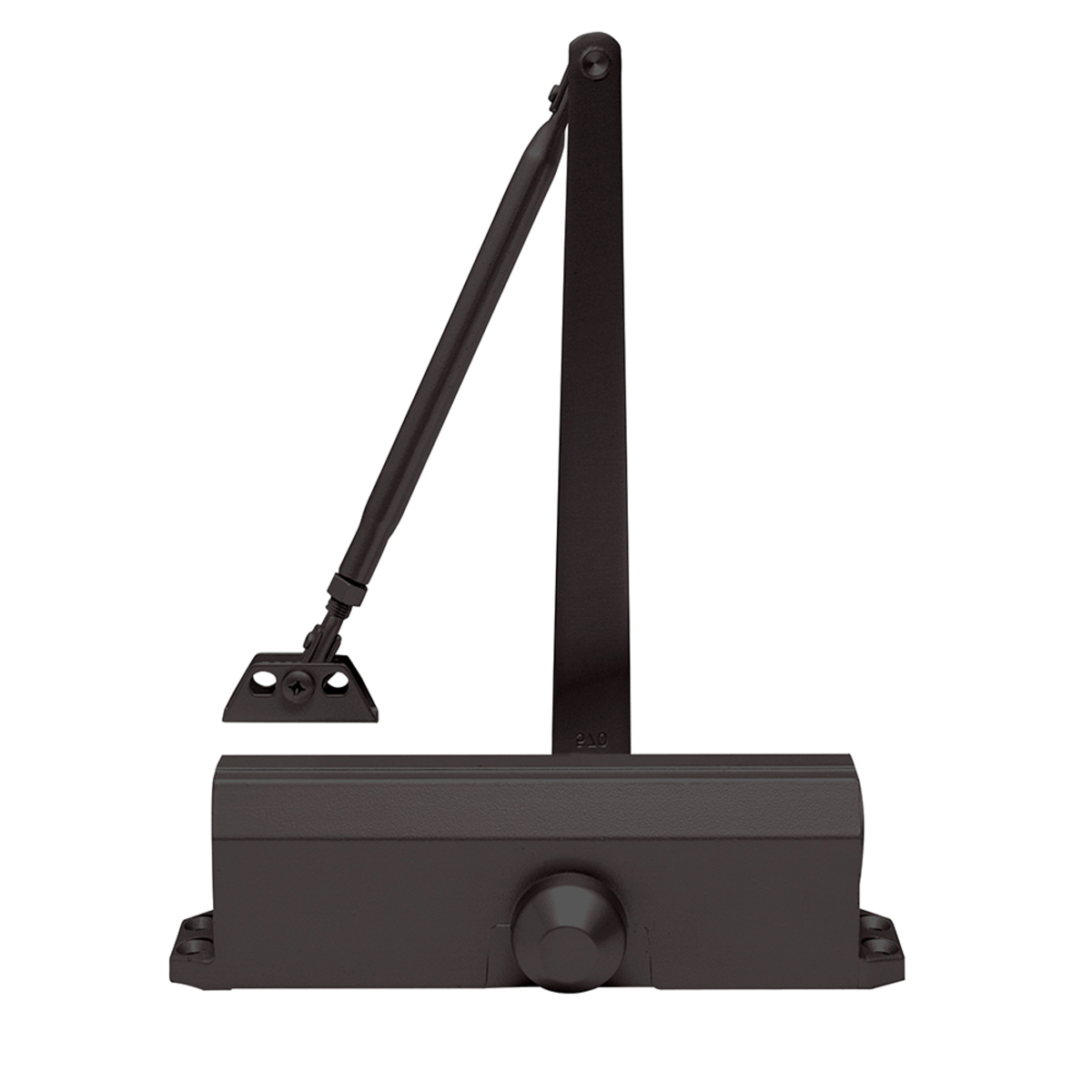

Dark Bronze Adjustable Spring Power Size 1 to 4 Surface Mount Door Closer

• ANSI A156.4 - Grade 1
• Adjustable Spring Power Multi-Size Range 1 to 4

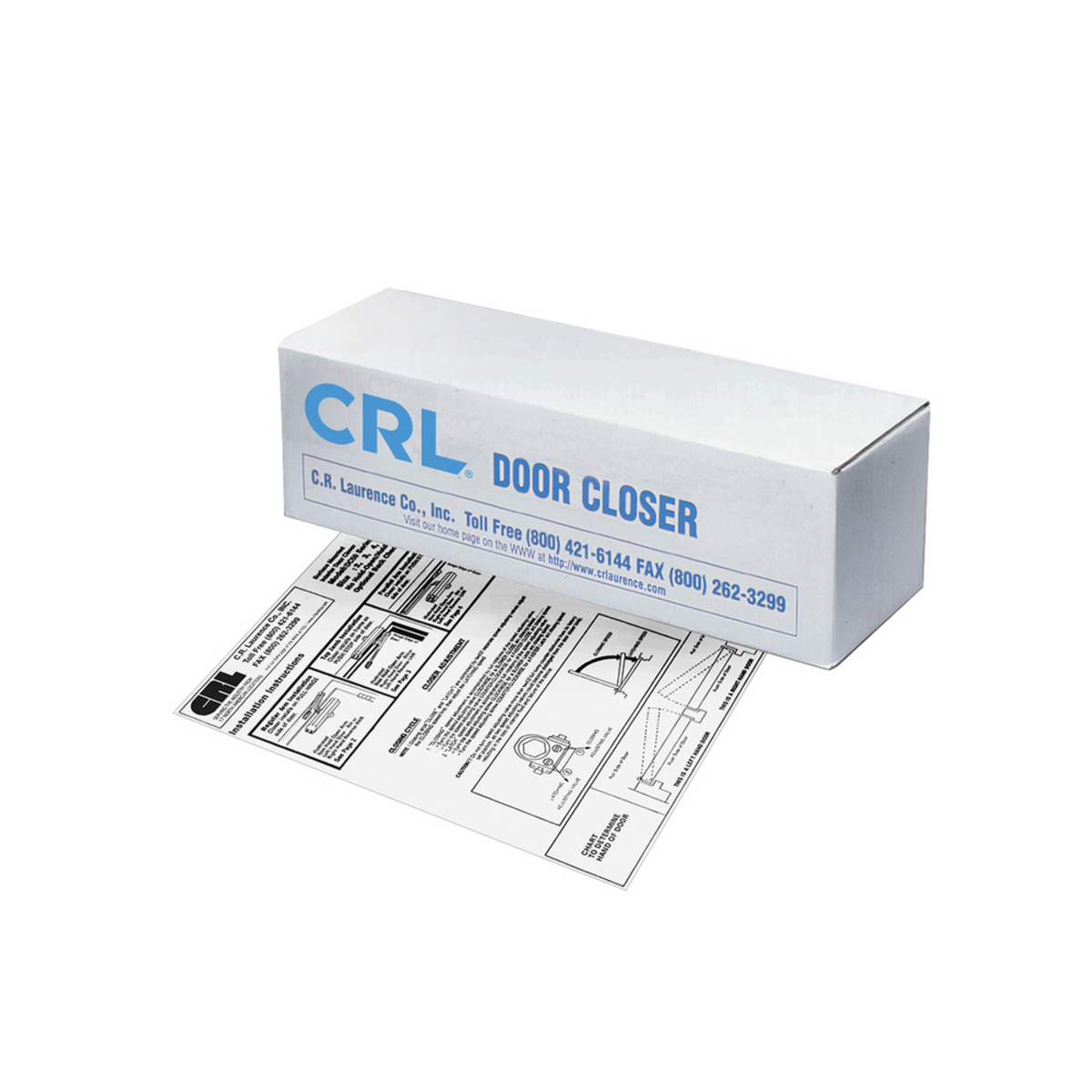

• Each PR40 Series Closer is Conveniently Packaged with Instructions
• Delayed Action Closing Model for Handicap Entrances
• UL Listed

When demanding closer specs are required, consider our PR40 Series Surface Mounted Door Closers. Recommended for high traffic areas, such as public buildings, airports, and shopping centers. Closing and latching speed controls are independently adjustable, and adjustable backcheck is a standard feature to prevent damage to the closer, door, and adjacent surface should the door be violently swung open due to wind or heavy pedestrian traffic.


The optional delayed action feature adjusts the time a door will remain open to facilitate ease of progress through the opening. This feature is particularly valuable in health care facilities, such as hospitals, nursing homes, and public buildings that require door closers to delay closing to comply with A.D.A. regulations.

PR40 Series Closers have a compact design closer body and share a common 9-1/16" x 3/4" (230 x 19 mm) mounting hole template, making it ideal for both new and retrofit applications. All PR40 Closers are UL Listed and warranted for ten years. Parallel Arm Brackets and mounting hardware is included with each closer permitting universal application for regular, top jamb or parallel arm applications. Optional accessories, such as Drop Plates and Hold Open Arms, are available for special installations.


Product Warning:

Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.

Resources

• Specifications Closer2.pdf
• Surface Closer Cross Reference Specifications
• Template CRL-PR40 series IN-DC-8710-CRL.pdf
