CRL PR42CBS Brushed Stainless 42" Round Glass Clamp 180 Railing Kit

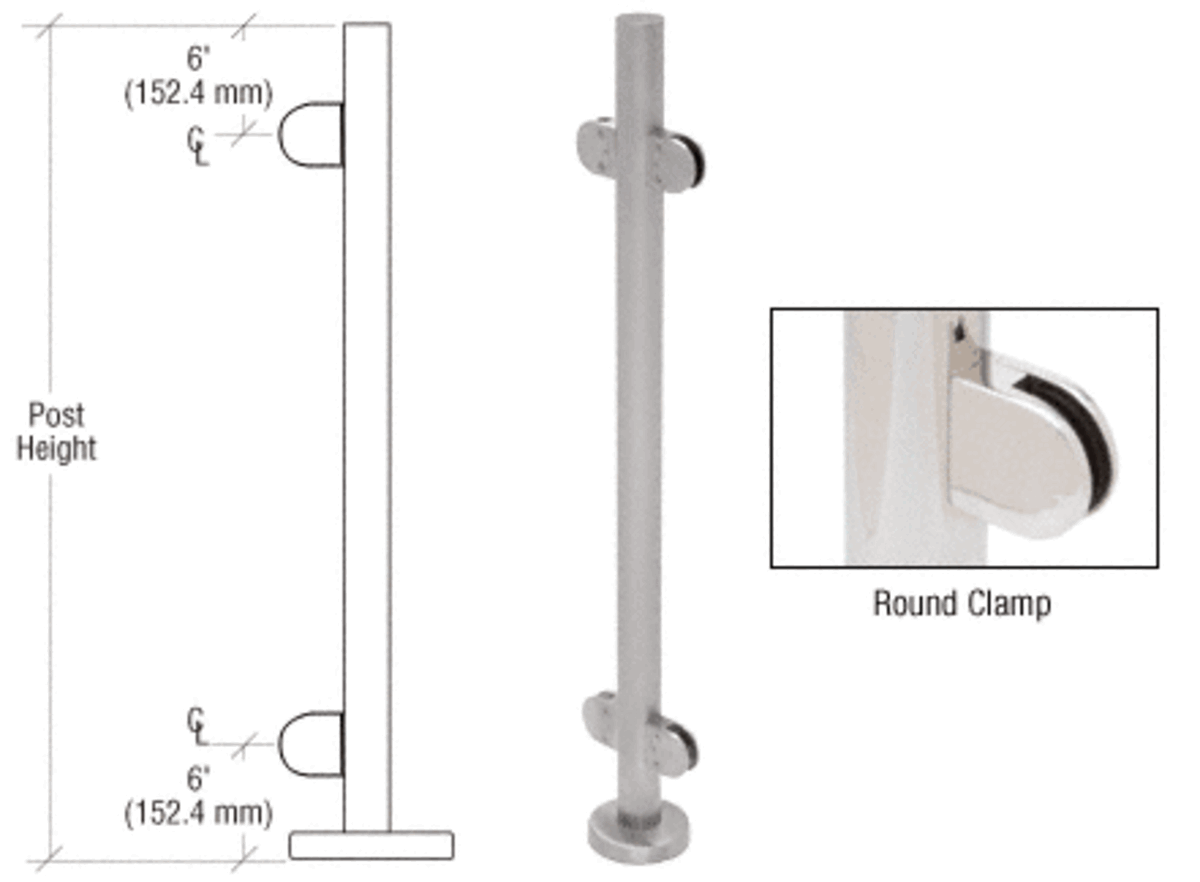

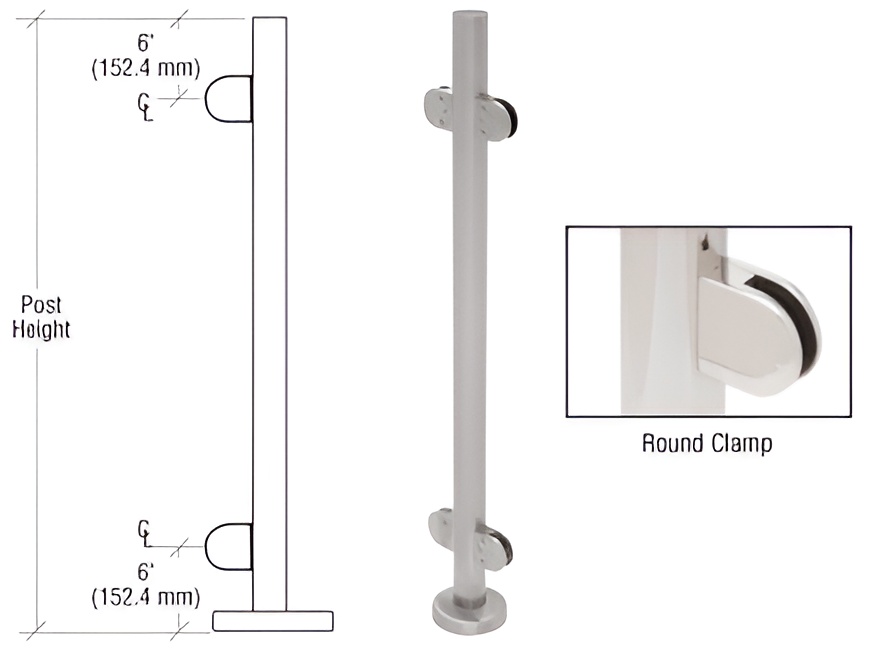

C.R. Laurence PR42CBS Brushed Stainless 42" Steel Round Glass Clamp 180 Degree Center Post Railing Kit delivers a robust and elegant solution for both commercial and residential applications. This well-crafted kit features 1.9" (48 mm) diameter stainless steel tubing, ensuring durability and a sleek modern aesthetic. Designed to accommodate 1/2" (12 mm) tempered glass, it provides secure and stylish support for your glass installations. Each kit is supplied complete with a base plate, base plate cover canopy, welded top cap, and Z-series glass clamps that are factory attached to the post. The standard post heights of 36" (914 mm) and 42" (1.07 m) can be customized to meet specific project requirements, making it versatile for any design vision. Available in two stainless finishes, with custom powder paint options as well, this railing kit can seamlessly blend with your architectural style. It's important to note that these post kits are not designed for guard rail or hand rail applications. For optimal performance, regular maintenance is recommended to preserve the stainless steel finish. The base plate features a 4-3/4 in. (121 mm) diameter and includes two mounting holes for secure installation, ensuring a reliable and polished look for your glass railing system.

Brushed Stainless 42" Steel Round Glass Clamp 180 Degree Center Post Railing Kit

• 1.9" (48 mm) Diameter Posts
• Square or Round Z-Series Glass Clamps
• Ready-to-Install for Both Commercial and Residential Applications
• Designed to Accept 1/2" (12 mm) Tempered Glass
• Standard Post Heights are 36" (914 mm) and 42" (1.07 m)
• Custom Post Heights Also Available
• Two Standard Stainless Finishes
• Custom Powder Paint Finishes Also Available

Stainless Steel Advisory:
