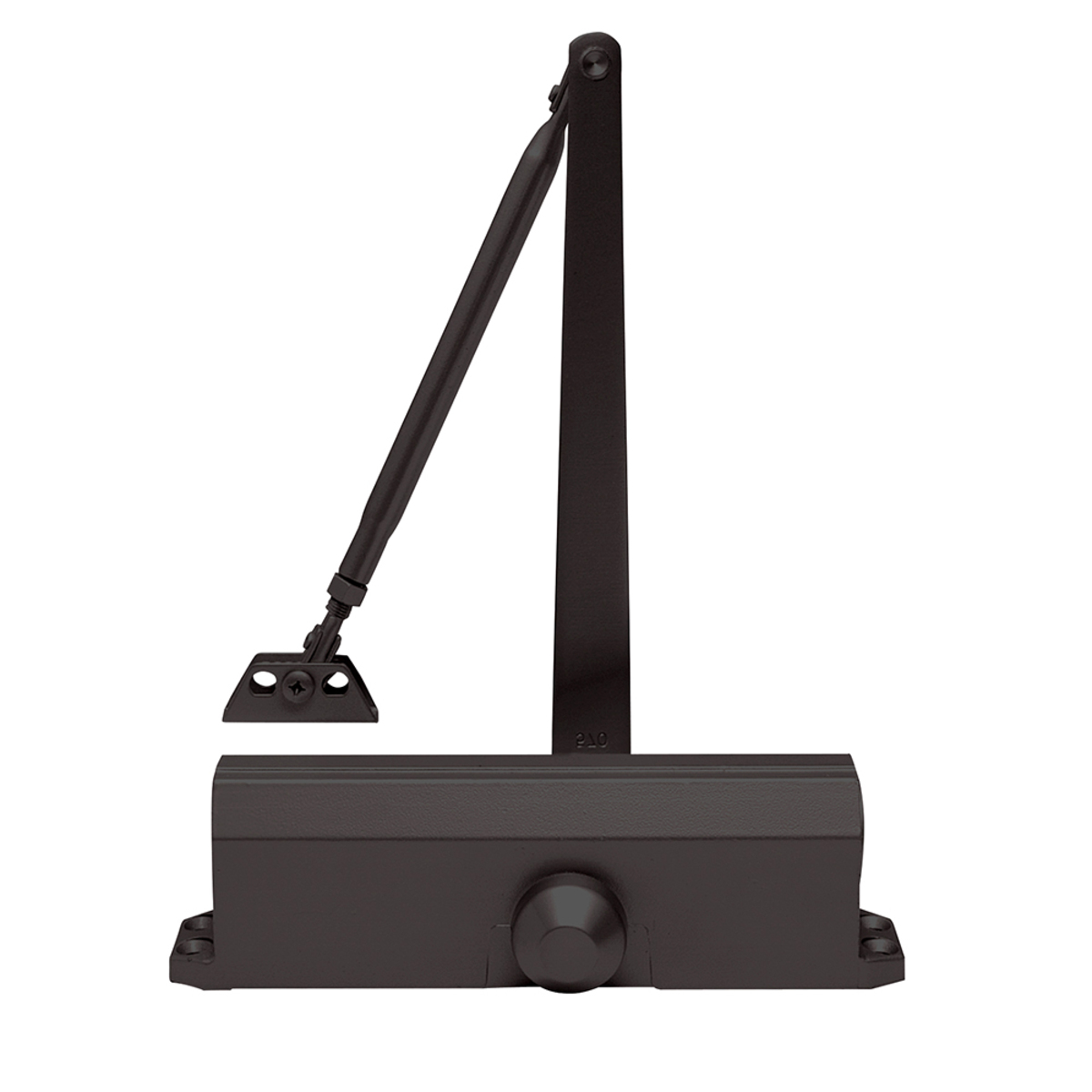

CRL PR42DU Dark Bronze Adjustable Spring Door Closer Size 2-5 Surface Mount

CRL PR42DU Dark Bronze Adjustable Spring Door Closer Size 2-5 Surface Mount

C.R. Laurence PR42DU Dark Bronze Adjustable Spring Power Size 2 - 5 Surface Mount Door Closer offers a robust solution for high-traffic environments such as public buildings, airports, and shopping centers. This door closer is ANSI A156.4 Grade 1 certified, ensuring it meets rigorous performance standards. With an adjustable spring power range of sizes 2 to 5, it accommodates various door sizes and conditions. Designed for versatility, the PR42DU features independently adjustable closing and latching speed controls, along with a standard backcheck to protect both the door and adjacent surfaces from damage. Its optional delayed action closing model is particularly beneficial for ADA-compliant installations, allowing doors to remain open longer for easier passage in healthcare settings and public facilities. The compact design simplifies installation, sharing a common 9-1/16" x 3/4" mounting hole template for both new and retrofit applications. Each unit comes complete with parallel arm brackets, mounting hardware, and clear instructions, ensuring a seamless setup. UL Listed for safety, the PR42DU is a reliable choice backed by a ten-year warranty. Optional accessories like Drop Plates and Hold Open Arms enhance its functionality for special installations. Choose the PR42DU for a durable, efficient door closing solution.

Dark Bronze Adjustable Spring Power Size 2 - 5 Surface Mount Door Closer

• ANSI A156.4 - Grade 1
• Adjustable Spring Power Multi-Size Range 2 to 5
• Each PR40 Series Closer is Conveniently Packaged with Instructions
• Delayed Action Closing Model for Handicap Entrances
• UL Listed

When demanding closer specs are required, consider our PR40 Series Surface Mounted Door Closers. Recommended for high traffic areas, such as public buildings, airports, and shopping centers. Closing and latching speed controls are independently adjustable, and adjustable backcheck is a standard feature to prevent damage to the closer, door, and adjacent surface should the door be violently swung open due to wind or heavy pedestrian traffic.


The optional delayed action feature adjusts the time a door will remain open to facilitate ease of progress through the opening. This feature is particularly valuable in health care facilities, such as hospitals, nursing homes, and public buildings that require door closers to delay closing to comply with A.D.A. regulations.

PR40 Series Closers have a compact design closer body and share a common 9-1/16" x 3/4" (230 x 19 mm) mounting hole template, making it ideal for both new and retrofit applications. All PR40 Closers are UL Listed and warranted for ten years. Parallel Arm Brackets and mounting hardware is included with each closer permitting universal application for regular, top jamb or parallel arm applications. Optional accessories, such as Drop Plates and Hold Open Arms, are available for special installations.


Product Warning:

Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.

DC5CVR Covers will work with the PR42, it isnt a replacement cover, it is a cover that can be used with this closer, by adhering it to the closer using double sided tape.

Resources

• Specifications Closer2.pdf
• Surface Closer Cross Reference Specifications
• Template CRL-PR40 series IN-DC-8710-CRL.pdf
