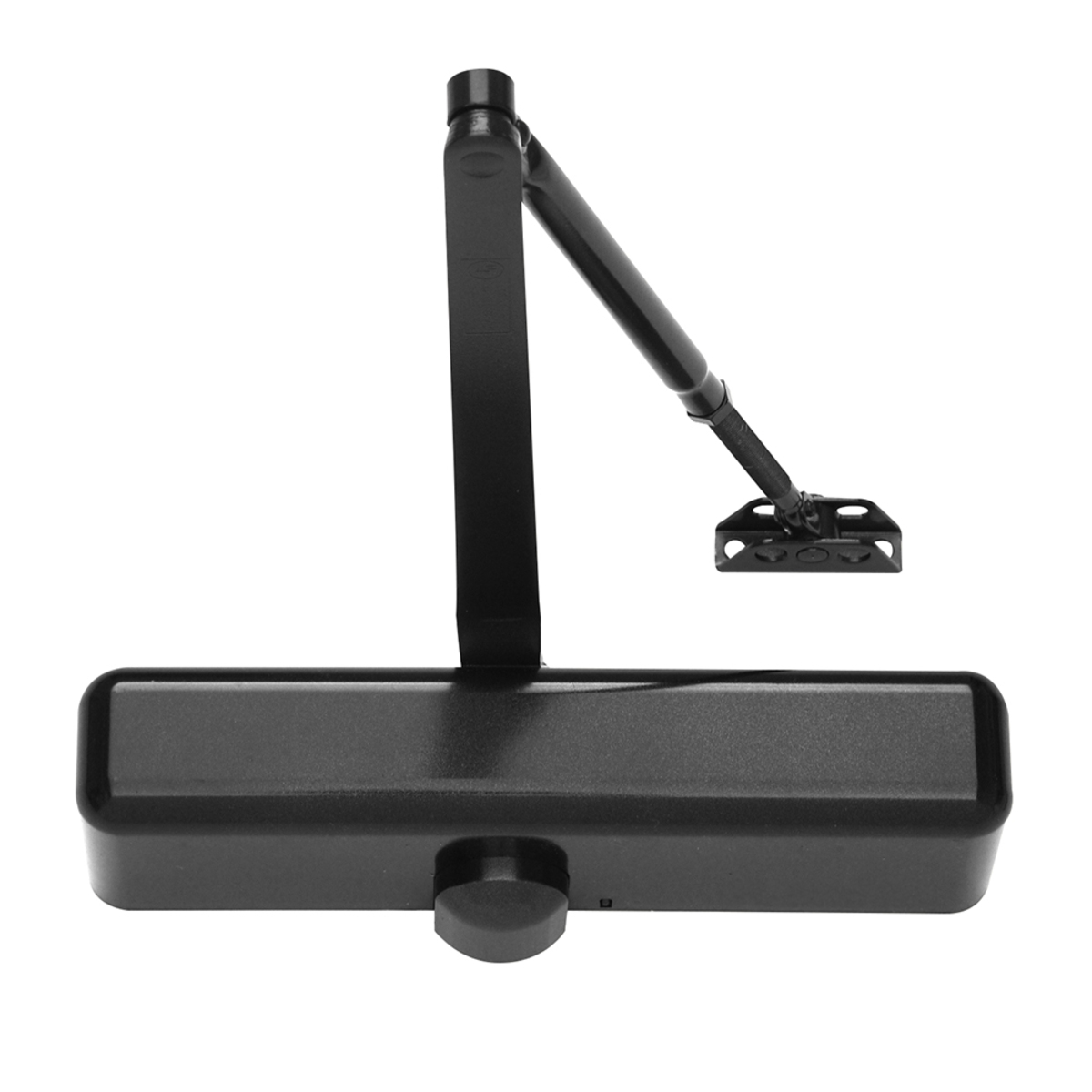

CRL PR80BLK Black Adjustable Spring Door Closer, Size 2-5, Surface Mount

C.R. Laurence PR80BLK Black Adjustable Spring Power Size 2 to 5 Surface Mount Door Closer offers a versatile solution for various door applications, accommodating sizes from 1 to 5. Designed to fit doors ranging from 24" to 54" wide and weighing between 33 to 264 lbs, this compact closer is ideal for both new installations and retrofits, thanks to its standard hole template of 9-1/16" x 3/4". This model features independently adjustable closing and latching speed controls, allowing for precise door operation. The adjustable backcheck feature offers additional protection against damage from abrupt door swings, making it suitable for high-traffic areas. A Barrier-Free model is also available that meets A.D.A. requirements for low opening resistance. The PR80BLK is UL listed and comes with a ten-year warranty, ensuring reliability and peace of mind. Installation is straightforward with included parallel arm brackets and mounting hardware, allowing for regular, top jamb, or parallel arm configurations. A standard plastic slim cover is provided, and optional accessories like Drop Plates and Hold Open Arms can be added for special setups. Please note that closers set for A.D.A. compliance may require careful adjustment to achieve the desired performance based on specific conditions.

Black Adjustable Spring Power Size 2 to 5 Surface Mount Door Closer

• Multi-Size Adjustable Spring Power Closers Ranging in Size From 1 to 5
• Barrier-Free Models to Meet A.D.A. Barrier-Free Requirements
• Applicable for Doors Ranging From 24" to 54" Wide and 33 to 264 Lbs.
• UL Listed

Resources

• Application and Adjustment CRL PR80 - Application & Adjustement.pdf
• Door Closer Warranty
• Specifications Closer2.pdf
• Surface Closer Cross Reference Specifications
